CQC Gel Solar Battery 12V 100AH Lead Ingot Pressure Safety Valve Battery Cabinets
CQC Gel Solar Battery 12V 100AH Lead Ingot Pressure Safety Valve Battery Cabinets
CQC Gel Solar Battery 12V 100AH Lead Ingot Pressure Safety Valve Battery Cabinets
CQC Gel Solar Battery 12V 100AH Lead Ingot Pressure Safety Valve Battery Cabinets
CQC Gel Solar Battery 12V 100AH Lead Ingot Pressure Safety Valve Battery Cabinets
CQC Gel Solar Battery 12V 100AH Lead Ingot Pressure Safety Valve Battery Cabinets
CQC Gel Solar Battery 12V 100AH Lead Ingot Pressure Safety Valve Battery Cabinets
CQC Gel Solar Battery 12V 100AH Lead Ingot Pressure Safety Valve Battery Cabinets
Specifications
Brand Name :
LEEHO
Model Number :
GEL 12V 100AH
Certification :
IEC61215/IEC61730/TUV/CQC/ISO
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000 Piece/Pieces per Month
Packaging Details :
Package by strong kraft box.
Battery Size: :
12V 100AH
Battery type: :
Gel Battery
Capacity: :
100Ah@10hr-rate
Design life: :
10years
Case material: :
A.B.S
Application: :
Home Appliances, Golf Carts, Electric Power Systems, Solar Energy
Weight: :
28.6KG
Terminal type: :
T11
Self-discharge: :
Less 2%/month
SIZE :
406*174*233
Description

12v 100ah Gel Battery Lead Ingot Pressure Safety Valve Battery Cabinets

Nominal Voltage 12V
Nominal Capacity(10HR) 100AH
Dimension Length 406 ±3mm (15.98 inches)
Width 174 ±2mm (6.85 inches)
Container Height 215 ±2mm (8.46 inches)
Total Height (withTerminal) 233 ±2mm (9.17 inches)
Approx Weight Approx 28.6Kg (63.05Ibs)
Terminal T11
Container Material ABS
Rated Capacity 105.0 AH/5.25A (20hr ,1.80V/cell,25℃/77℉)
100.0 AH/10.0A (10hr,1.80V/cell,25℃/77℉)
87.2 AH/17.4A (5hr,1.75V/cell,25℃/77℉)
79.4 AH/26.5A (3hr,1.75V/cell,25℃/77℉)
61.1 AH/ 61.1A (1hr,1.60V/cell,25℃/77℉)
Max. Discharge Current 1000A (5s)
Internal Resistance Approx 5.5mΩ
Operating Temp.Range Discharge : -30~50℃ (5~122℉)
Charge : 0~40℃ (32~104℉)
Aircraft signal Storage : -30~40℃ (5~104℉)
Nominal Operating Temp. Range 25 ±3℃ (77 ±5℉ )
Cycle Use Initial Charging Current less than 30.0A.Voltage Communication power supply 14.4V~15.0V at 25℃(77℉)Temp. Coefficient -30mV/℃
Standby Use No limit on Initial Charging Current Voltage Auto controlsystem 13.5V~13.8V at 25℃(77℉)Temp. Coefficient -20mV/℃
Capacity affectedby Temperature 40℃ (104 ℉)103%
25℃ ( 77 ℉ )100%
0℃ ( 32℉ ) 86%
Self Discharge GEL series batteries may be stored for up to 6 months at 25℃(77℉) and battery should be recharge before use . For higher
temperatures the time interval will be shorter.

Features:

  • low resistance characteristics and high efficiency

  • low self-discharge, strong recovery ability, adaptable temperature: -20℃-60℃

  • Leadingot purity reaches 99.9%

  • Anti-fall, anti-corrosion, strong resistance to pressure

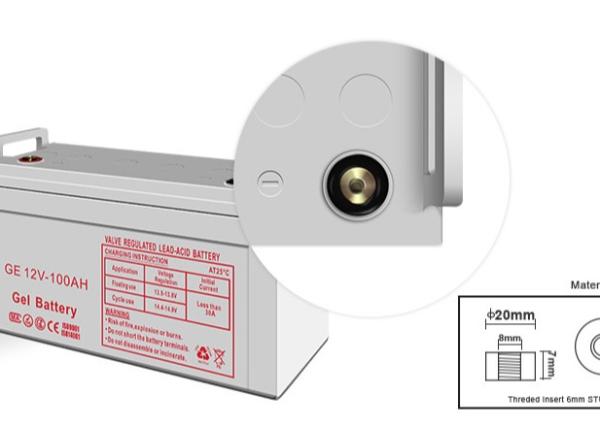

Safety Valve:With up-dated AGM valve regulated technology
Terminal:Good Electrical conductivity,Good anti-corrosion
Through-wall welding thechnology:Advanced pole-group welding, casting and through-wall welding technology;

Plate:The raw material is lead ingot with purity up to 99.9%
Container:Battery cabinets are applied ABS material.
Our Advantages
The raw material is LEAD ingot with purity up to 99.9%:
1.Durable;
2.multiple times of cycle;
3.10years design life.
Patented formula:
1.1 year storage ;
3.Strong recovery ability;
2.Low self-discharge;
4.Adaptable temperature: -20℃-60℃
Automatic equipment production:
1.Standardizied quality;
2.High efficiency production;
3.7 days delivery.
Solar/wind energy photovoltaic system
Armamentarium
Electrocar
Monitoring system
Educational Multimedia Project

Applied range

Telecom, Internet (cloud computing/Internet of Things/Big data center/ARTIFICIAL intelligence), Government, banking,Manufacturing,Transportation, health care, education, wholesale and retail, petroleum and petrochemical, electricity, securities and other finance, insurance,Logistics, households and individuals, coal and other energy, research, others...
Warranty
FULL SETS SYSTEM 1years
Solar

12years products on materials

25years liner power performance
Inverter

High frequency 1year

Low frequency 2years
GEL battery 1year
MPPT CONTROLLER 1YEAR
LI battery 3years
GRAPHENE battery 5years
