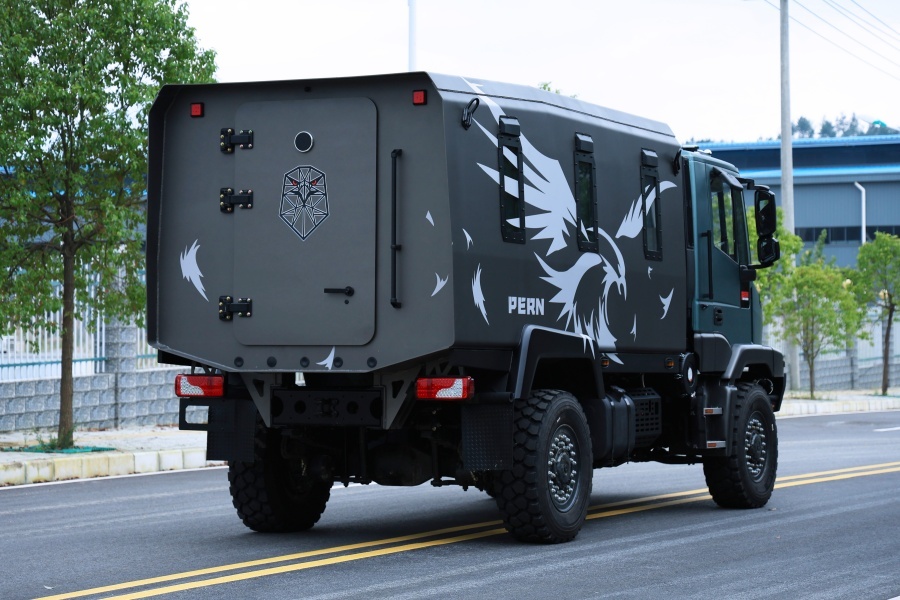

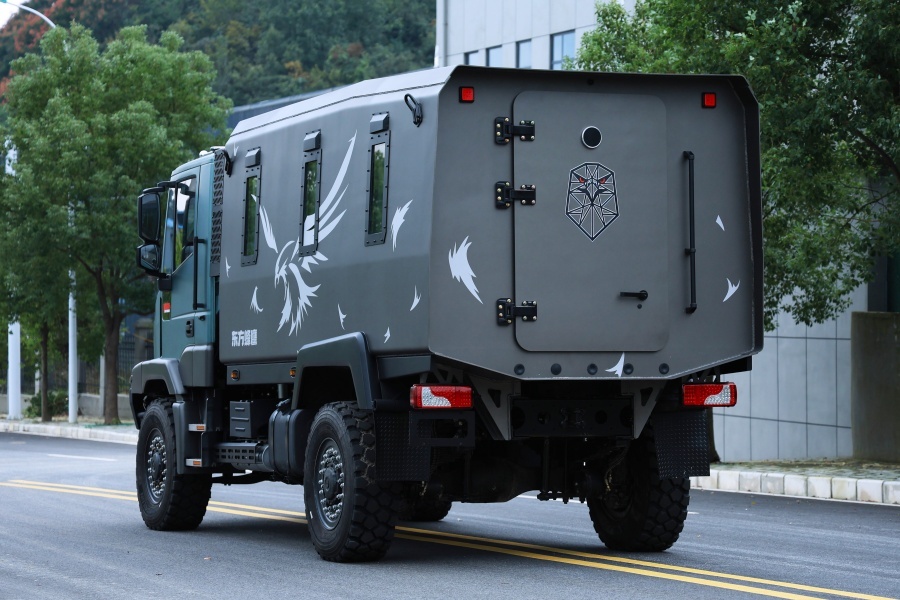

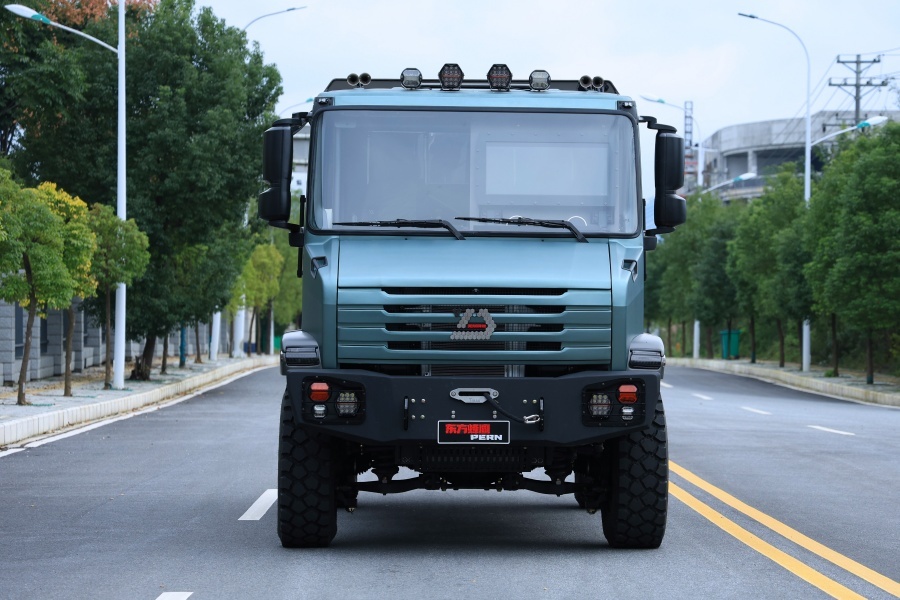

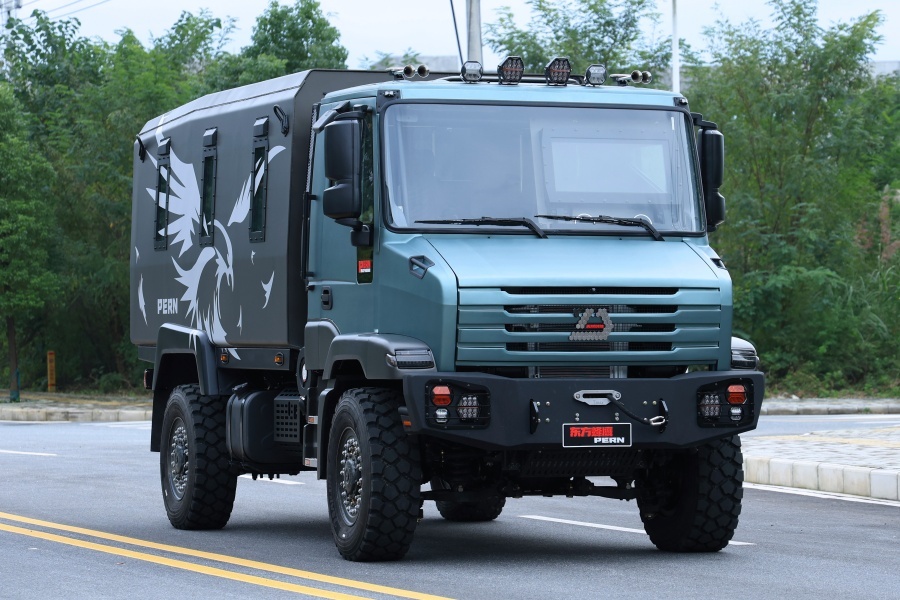

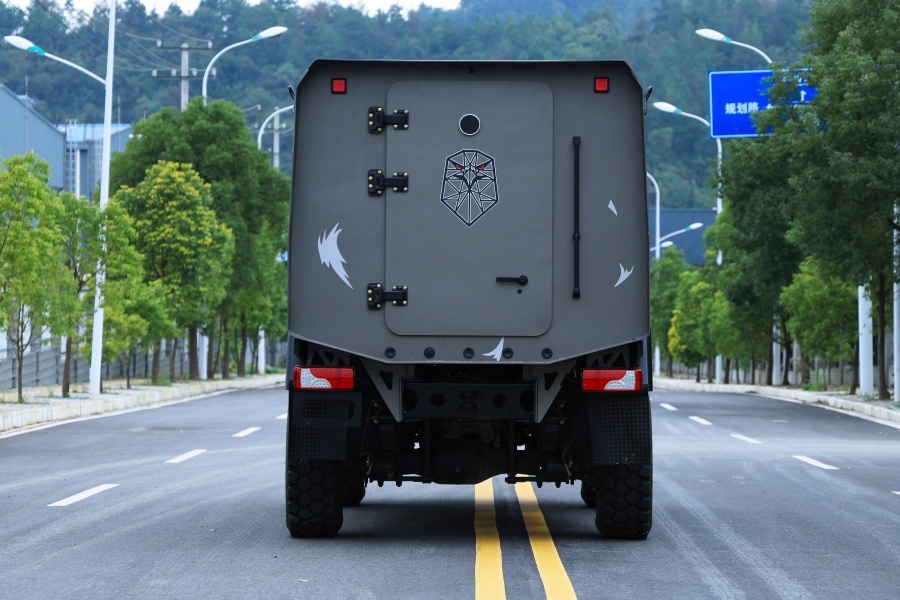

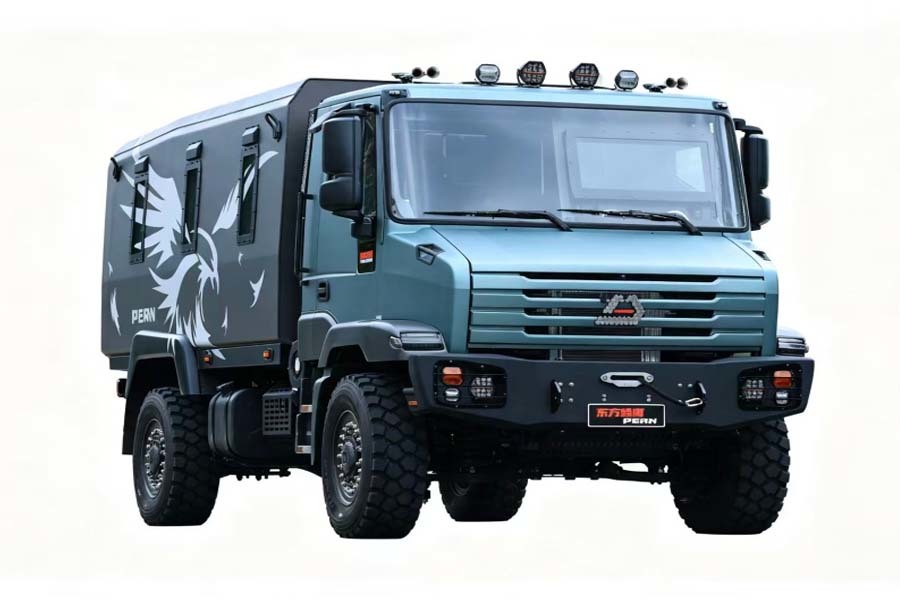

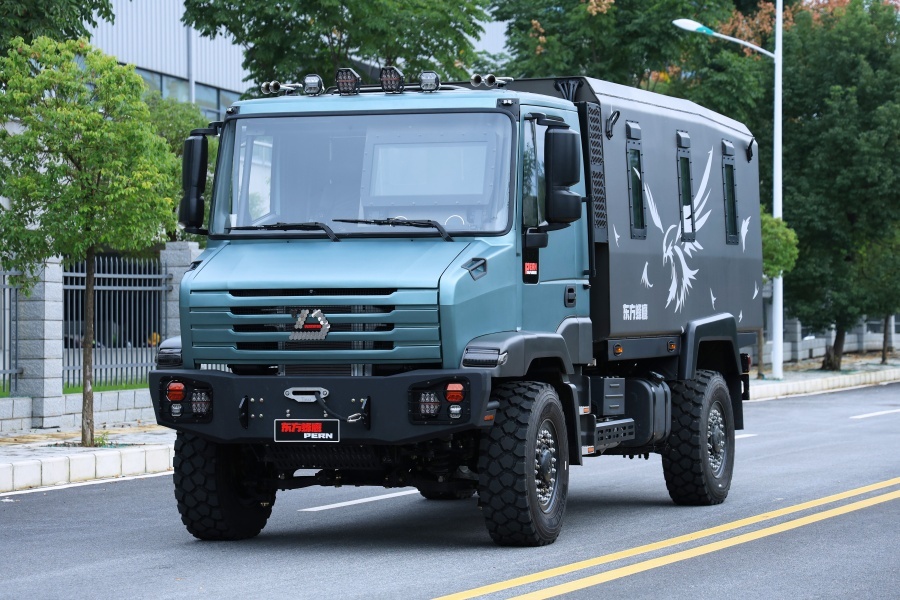

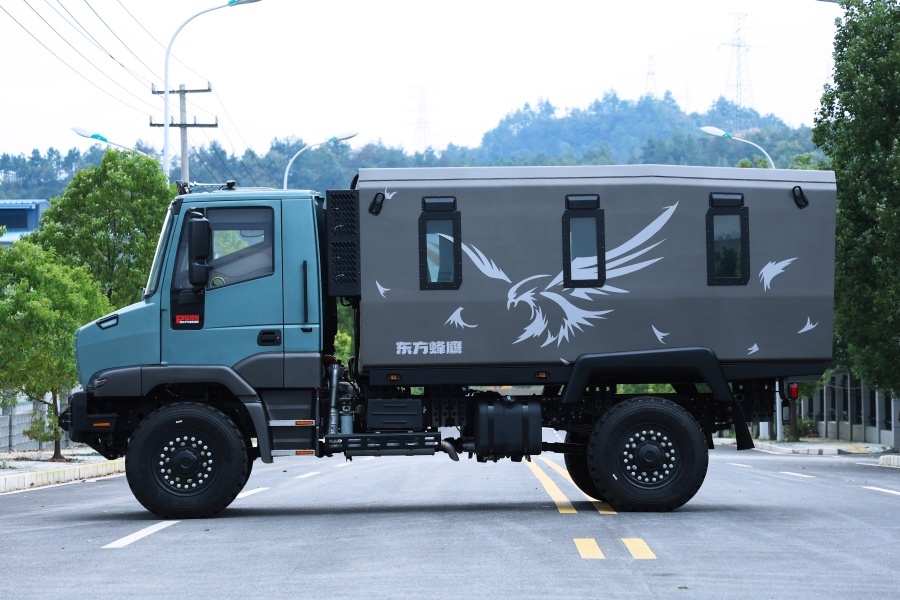

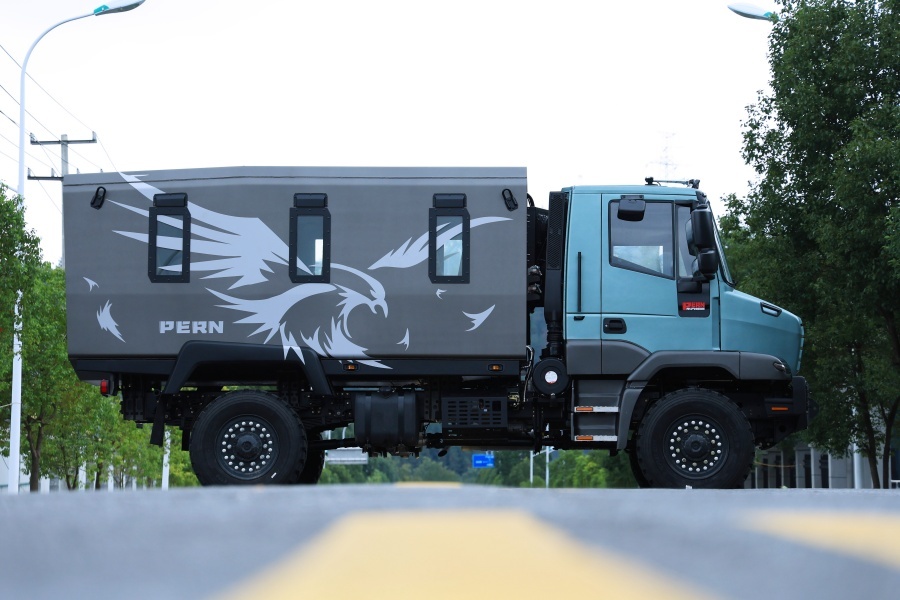

4x4 Off-Road Multi-purpose Square Cabin Personnel Carrier

Specifications

Packaging Details :

Nude Packed（Adjust according to the needs of different export countries）.

Transmission :

Automatic Manual Transmission

Price :

Pricing Tailored to Your Needs

Overall Dimension :

6200×2500×2600mm

Supply Ability :

Unlimited

Cabin Dimension :

4000×2200×1900mm

Delivery Time :

5-7 working days; large orders depend on the factory's schedule.

Obstacle Crossing Height :

500mm

MOQ :

Engine :

ISDe6.7-330 30

Description

This 4x4 off-road square cabin carrier is designed for tough terrain transport. Fitted with 330hp power unit and auto-manual gearbox, it balances extreme off-road capability and comfort. The cabin holds 13 passengers or cargo. It supports optional electric winch and searchlight, widely exported for mining, construction and remote-area personnel delivery.

Basic Configuration
Engine	ISDe6.7-330 30
Transmission	Automatic Manual Transmission
Axle	Front axle 4t / Rear axle 8t
Suspension	Independent suspension + Leaf spring
Tire	365/80R20 (4+1 spare tire)
Electrical System	24V
Accessories	Fire extinguisher, on-board tools, warning plate

Detailed Parameters
Overall Dimension	6200×2500×2600mm
Cabin Dimension	4000×2200×1900mm
Wheelbase	3700mm
Gross Vehicle Weight	12000kg
Payload	6500kg (Off-road condition)
Seating Capacity	3+10 persons
Maximum Power	243kw
Displacement	6.7L
Maximum Speed	≥120km/h
Minimum Turning Radius	＞17m
Fording Depth	1000mm
Obstacle Crossing Height	500mm
Minimum Ground Clearance	370mm
Approach Angle / Departure Angle	40°/25°
Fuel Tank (Main & Auxiliary)	100L+100L
Fuel Consumption	＞18L/100km

Note:Specifications are for reference only, subject to the actual vehicle.
