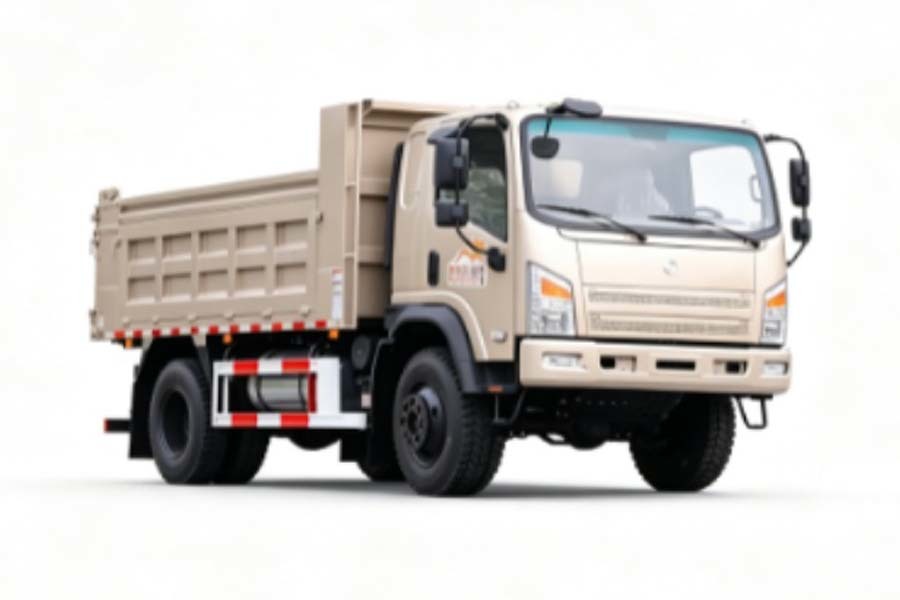

Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Export Dongfeng four-wheel-drive flathead dump truck
Specifications
Packaging Details :
Nude Packed（Adjust according to the needs of different export countries）.
Transmission :
5-speed manual transmission
Price :
Pricing Tailored to Your Needs
Overall Dimensions :
6740×2610×2880mm
MOQ :
1
Engine :
B170 33
Supply Ability :
Unlimited
Cargo Container Dimensions :
4200×2200×(800+200)mm
Delivery Time :
5-7 working days; large orders depend on the factory's schedule.
Obstacle Clearance :
280mm
Description

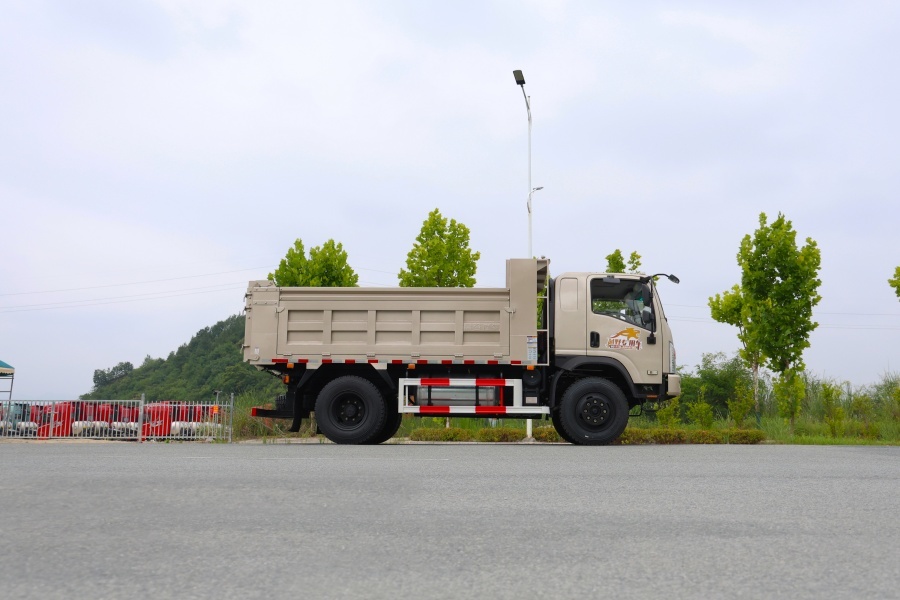

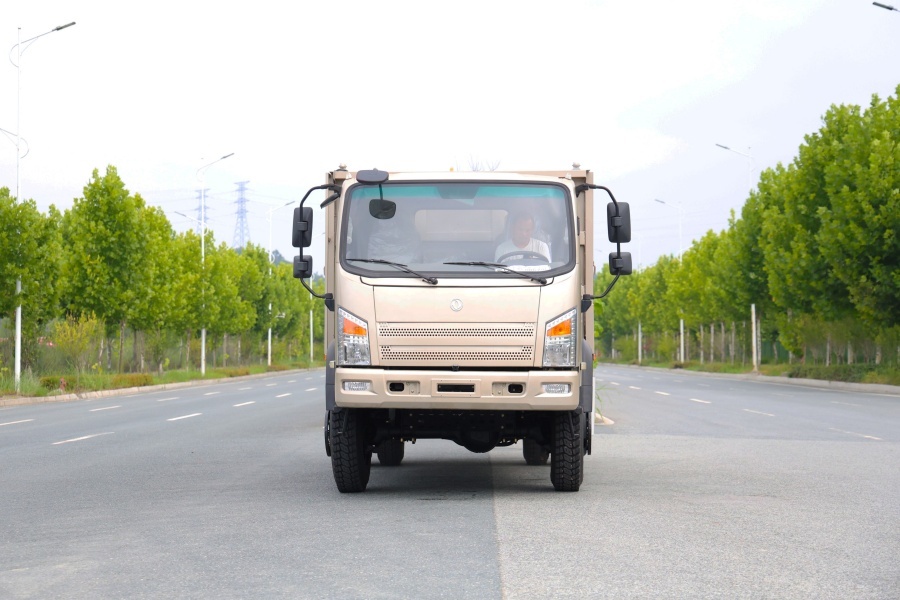

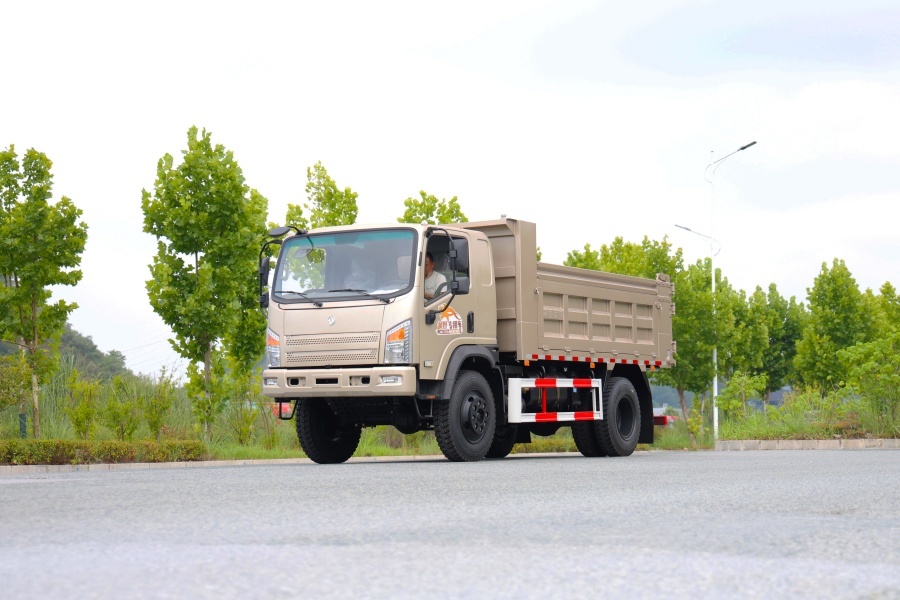

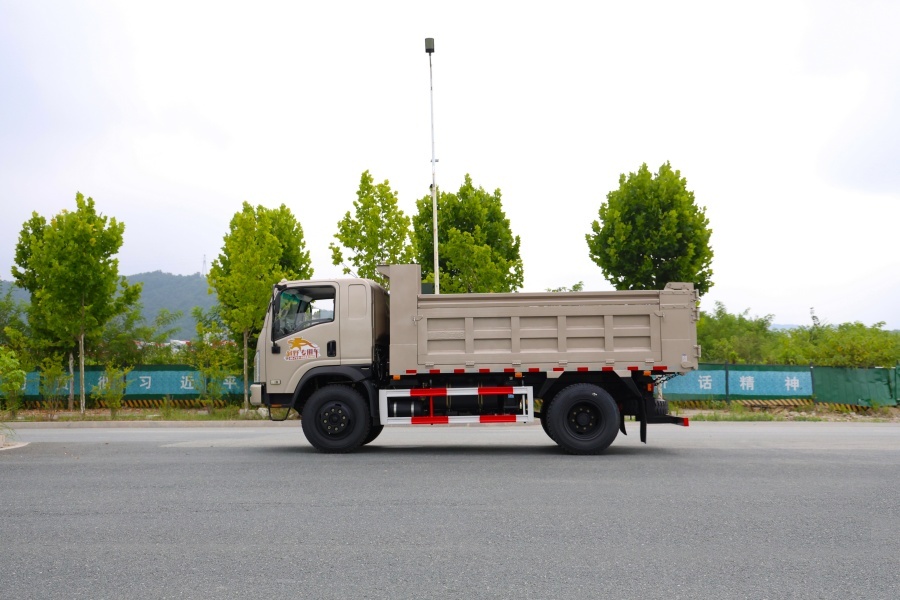

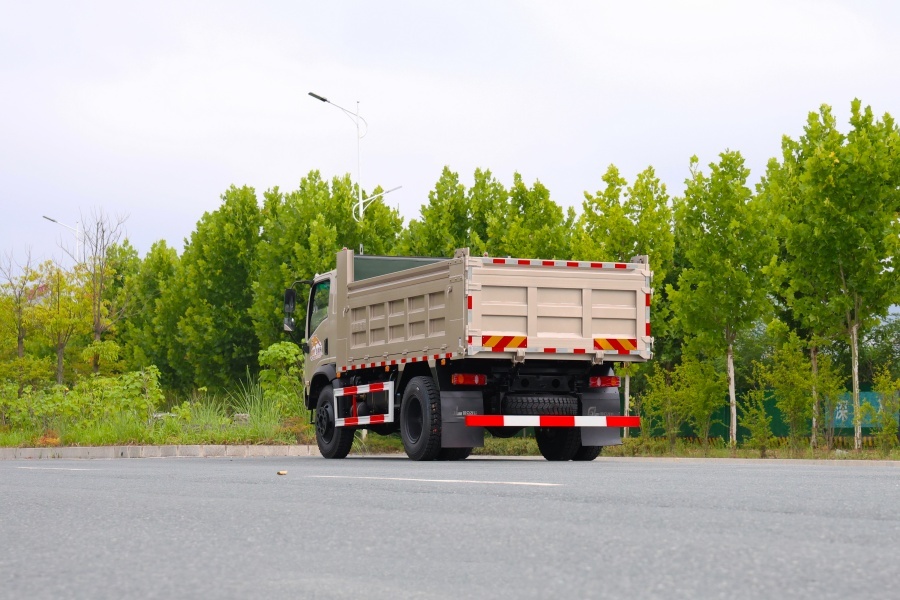

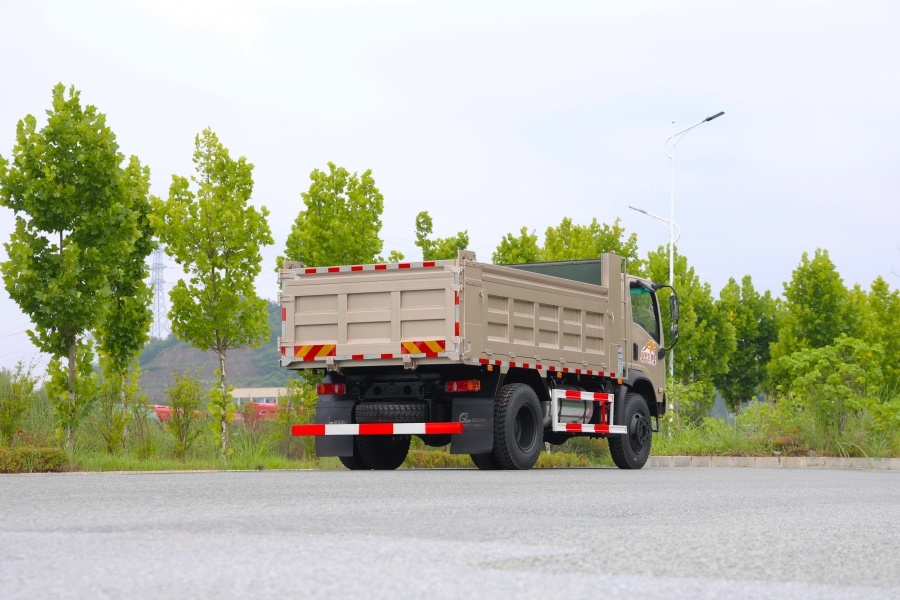

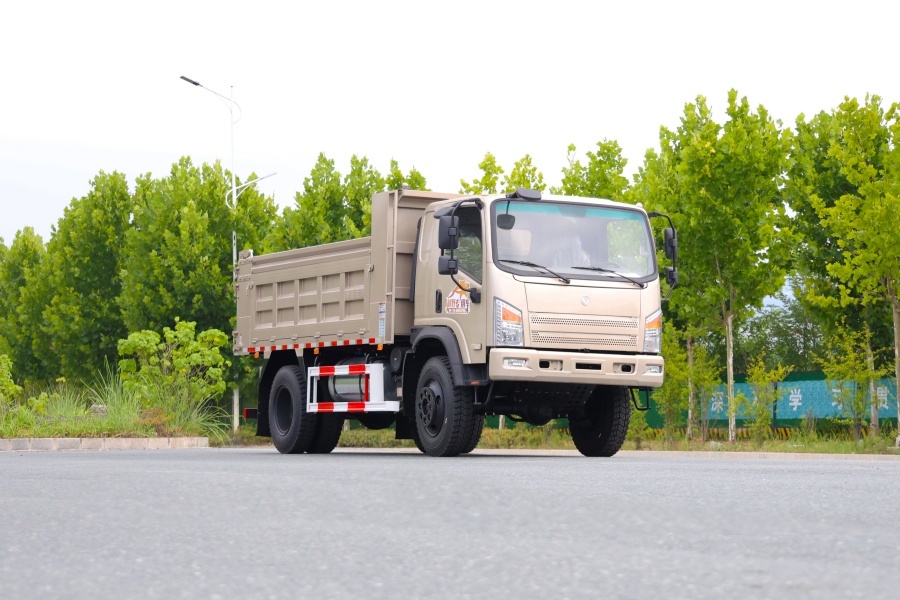

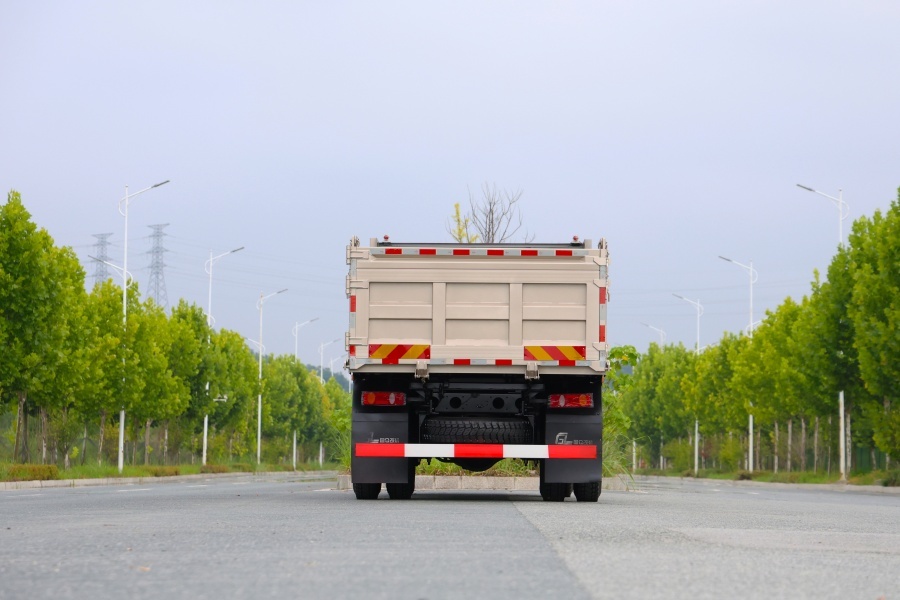

The 4×4 flat semi cab dump truck is equipped with B170 33 engine and 5-speed manual gearbox. Fitted with high-low transfer case, it delivers reliable off-road performance with 720mm fording depth. Robust leaf spring suspension and 9.00R20 tires adapt to rough terrain. Suitable for mining, mountain transport and engineering works, customizable and available for export worldwide

Export Dongfeng four-wheel-drive flathead dump truck

Basic Configuration
Engine B170 33
Transmission 5-speed manual transmission
Cab Flat Semi Cab
Axle 2.7T/8T Load Axle
Tyres 9.00R20 (6+1)
Overall Dimensions 6740×2610×2880mm
Cargo Container Dimensions 4200×2200×(800+200)mm
Displacement 5900ml
Power 125kw
Wheelbase 3600mm
Wheel Span 1820/1840mm
GVW (Gross Vehicle Weight) 10700kg
Curb Weight 6780kg
Approach Angle 21°
Departure Angle 34°
Suspension 9/10+8 Steel Plate Springs
Fuel Tank Capacity 160L
Fording Depth 720mm
Obstacle Clearance 280mm
Max. Speed 85km/h
Minimum Ground Clearance 280mm
Torque 560N·m
Distance of Rear Frame Upper Surface To Ground 1160mm

Note: All configurations are for reference only, subject to the real finished vehicle.
