Specifications
Brand Name :
OEM
Model Number :
YH300GY-L4
Place of Origin :
Chongqing, China
MOQ :
40HQ
Price :
Negotiable
Delivery Time :
45 work days
Packaging Details :
SKD 111PCS/40HQ
Supply Ability :
Customized
Ride Capacity :
2 Person
Engine :
4 stroke
Transmission method :
Chain drive
Transmission :
5-speed
Ignition method :
CDI
Lubrication method :
Pressure, splash
Clutch type :
Multi-plate wet clutch, manual
Description

Description:

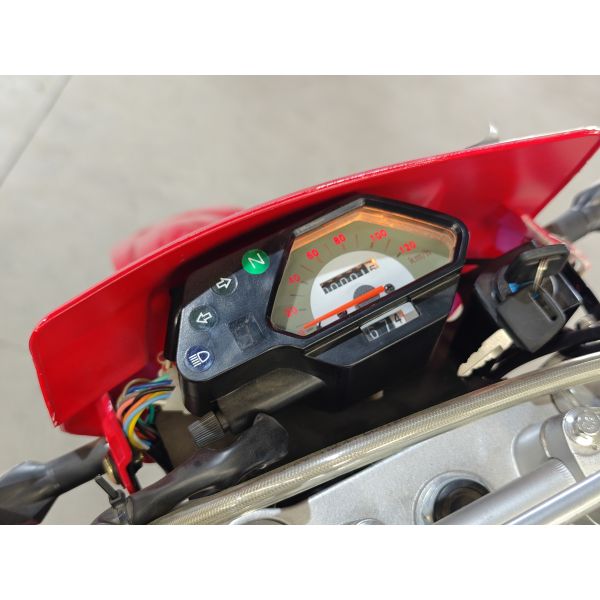

CB300 air-cooled engine, single cylinder, vertical, four-stroke, electric/foot start, competition board track carburetor, maintenance-free battery, straight front shock absorber, single rear shock absorber, with cradle and high-function cradle. Multi-function digital instrument, front and rear aluminum alloy lightweight mesh wheels, front wheel specifications 3.00-21, rear 4.60-18 deep-tooth off-road tires, reinforced track board flat fork, classic diamond rearview mirror.

Specifications:

Item Parameter
Dimensions (Length x Width x Height) 2140 x820x 1240
Seat Height 900mm
Wheelbase 1460mm
Minimum Ground Clearance 280mm
Maximum Load 150kg
Steering Angle 40
Side Stand Tilt Angle 14
Ride Capacity 1 Person
Dry Weight 110kg
Fuel Tank Capacity 9L
Front Braking System Disc brakes
Rear Braking System Disc brakes
Front Tire Size 80/100-21
Rear Tire Size 100/90-18
Battery Size 12V/6.5Ah
Engine Type Single cylinder, air-cooled, four-stroke
Engine displacement 270.2
Bore x stroke 70×70.2
Compression ratio 9.0:1
Maximum power 11.5/7000 (kW/r/min)
Maximum torque 19/6000 (N·m/r/min)
Maximum speed 220 km/h
Start-up acceleration 15s
Overtaking acceleration 14s
Lubrication method Pressure, splash
Oil volume 1.2L
Clutch type Multi-plate wet clutch, electric/foot start
Ignition method CDI
Spark plug D8TC
Starting method Electric foot start
Transmission method Chain drive
Final gear ratio 15:41

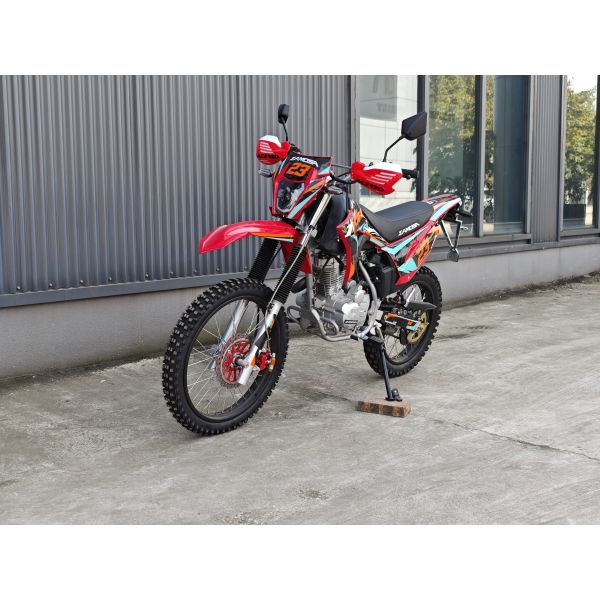

300CC Air Cooled Engine 4 Stroke Enduro Dirt Bikes Off Road Motorcycle With 9L Fuel Tank

300CC Air Cooled Engine 4 Stroke Enduro Dirt Bikes Off Road Motorcycle With 9L Fuel Tank

300CC Air Cooled Engine 4 Stroke Enduro Dirt Bikes Off Road Motorcycle With 9L Fuel Tank

300CC Air Cooled Engine 4 Stroke Enduro Dirt Bikes Off Road Motorcycle With 9L Fuel Tank

300CC Air Cooled Engine 4 Stroke Enduro Dirt Bikes Off Road Motorcycle With 9L Fuel Tank

Frequently Asked Questions:

Q1. About us:

A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.

Q2. Payment Terms:

A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.

Q3. Delivery Timeline:

A: Depending on the order quantity, usually around 45 working days

Q4. Customization:

A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.

Q5. Packaging Parameters:

A: Through SKD packaging, a 40HQ container can hold 111 units.

Q6. Minimum Order Quantity:

A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.

Q7. After-sales Service:

We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
