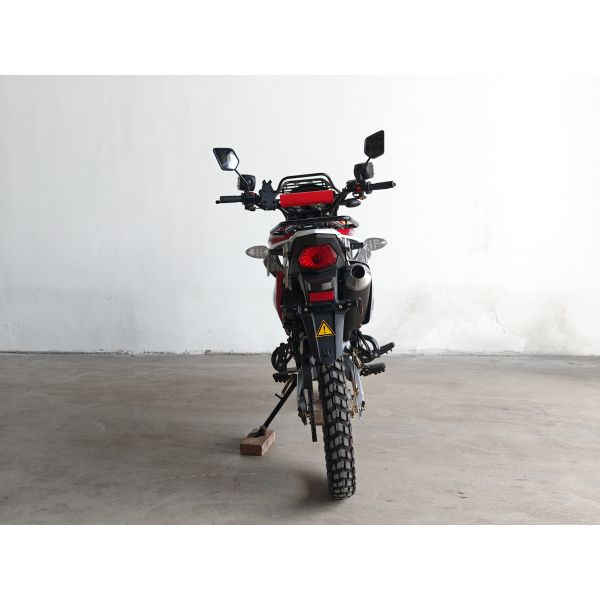

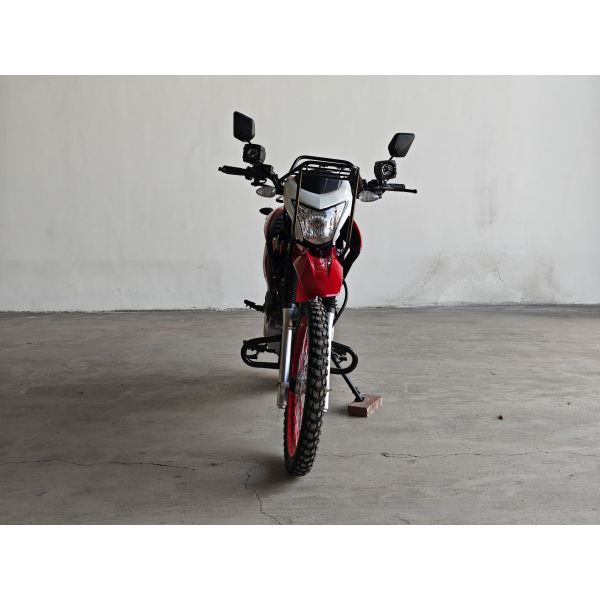

OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle
Specifications
Brand Name :
OEM
Model Number :
YH200GY-16
Place of Origin :
Chongqing, China
MOQ :
40HQ
Price :
Negotiable
Supply Ability :
Customized
Delivery Time :
45 work days
Packaging Details :
SKD 93PCS/40HQ，CKD 125PCS/40HQ
Ride Capacity :
2 Person
Engine :
4 stroke
Transmission method :
Chain drive
Transmission :
5-speed
Ignition method :
CDI
Lubrication method :
Pressure, splash
Clutch type :
Multi-plate wet clutch, manual
Description

Description:

Place of Origin:

Chongqing, China

Starting system:

Electric / Kick

Model Number:

YH200GY-16

Fork:

Reinforced Plate Flat Fork

Engine:

200CC Single Cylinder, Air-Cooled, Four Stroke

Shock Absorber:

Straight front shock absorber with single rear shock absorber

Transmission System:

Chain Drive

Brake:

Front Disc Brake, Rear Drum Brake

Tyre:

Off Road Deep Teeth Tires

Minimum Order Quantity:

93

Brazil off-road 2016 new model covers, CG200CC engine, Youli Keihin carburetor, maintenance-free battery, straight front shock absorber, single rear shock absorber without bracket, ordinary instrument, front and rear mesh wheels, deep tooth tires (front 90/100-19, rear 110/100-17), reinforced plate flat fork, high temperature paint muffler, front disc brake, rear drum brake, aluminum alloy rear handrail. Classic diamond rearview mirror.


Specifications:

Item Parameter
Dimensions (Length x Width x Height) 2100×860×1180mm
Seat Height 900mm
Wheelbase 1350mm
Minimum Ground Clearance 300mm
Maximum Load 150kg
Steering Angle 35
Side Stand Tilt Angle 14
Ride Capacity 2 Person
Dry Weight 115kg
Fuel Tank Capacity 12L
Front Braking System Disc brakes
Rear Braking System Drum brakes
Front Tire Size 90/100/21
Rear Tire Size 110/90/18
Battery Size 12V/6.5Ah
Engine Type Single cylinder, air-cooled, four-stroke
Engine displacement 200
Bore x stroke 62×53
Compression ratio 9.0:1
Maximum power 8.8/8000(kW/r/min)
Maximum torque 11.3/6500(N·m/r/min)
Maximum speed 90km/h
Start-up acceleration 14S
Overtaking acceleration 13S
Lubrication method Pressure, Splash
Oil volume 1.1L
Clutch type Multi-plate wet clutch, manual
Ignition method CDI
Spark plug A8RTC
Starting method Electric kick starter
Transmission method Chain drive
Final gear ratio 15:43


OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle

OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle

OEM 200cc Air Cooled Off Road Bikes For Adults , Four Stroke Dirt Road Motorcycle


FAQ

Q1. About us:

A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.

Q2. Payment Terms:

A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.

Q3. Delivery Timeline:

A: Depending on the order quantity, usually around 45 working days

Q4. Customization:

A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.

Q5. Packaging Parameters:

A: The size of SKD is 1890×460×840mm, and a 40HQ container can hold 93 units.

The size of CKD is 1400×760×380mm, and a 40HQ container can hold 125 units.

Q6. Can the decals be modified?

A: Yes, we can create custom decals based on your specifications.

Q7. After-sales Service:

A: We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
