Specifications
Brand Name :
OEM
Model Number :
YH150GY-10
Place of Origin :
Chongqing, China
MOQ :
40HQ
Price :
Negotiable
Supply Ability :
Customized
Delivery Time :
45 work days
Packaging Details :
SKD 96PCS/40HQ,CKD 138PCS/40HQ
Ride Capacity :
2 Person
Engine :
4 stroke
Transmission method :
Chain drive
Transmission :
5-speed
Ignition method :
CDI
Lubrication method :
Pressure, splash
Clutch type :
Multi-plate wet clutch, manual
Description

Description:

ENGINE:

CG200

ENGINE TYPE

SINGLE CYLINDER, AIR-COOLED, FOUR-STROKE

DISPLACEMENT:

200CC

MAX. POWER:

8.8/8000KW/R/MIN

MAX. TORQUE:

11.3/6500N.M./RPM

IGNITION TYPE:

CDI

START SYSTEM:

ELECTRICAL/KICK

TRANSMISSION:

CHAIN DRIVE

MAX. SPEED:

90KM/H

BRAKE:

FRONT DISC AND REAR DRUM

OIL VOLUME:

1.1L

IGNITION TYPE:

CDI

BORE x STROKE:

62×53

COMPRESSION RATIO:

9.0:1

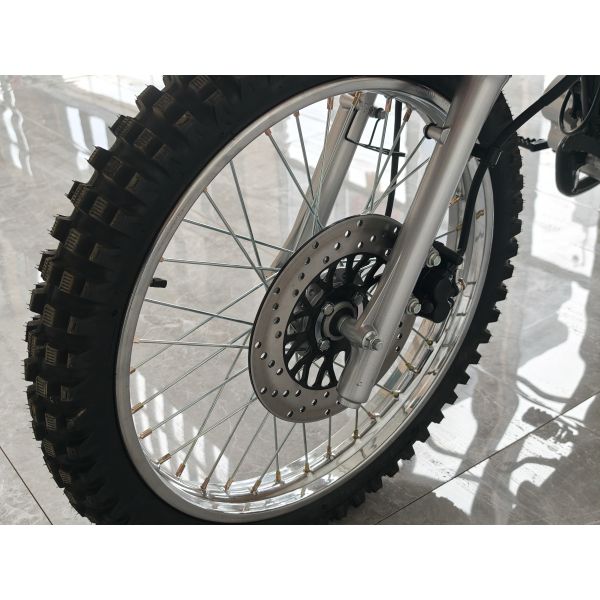

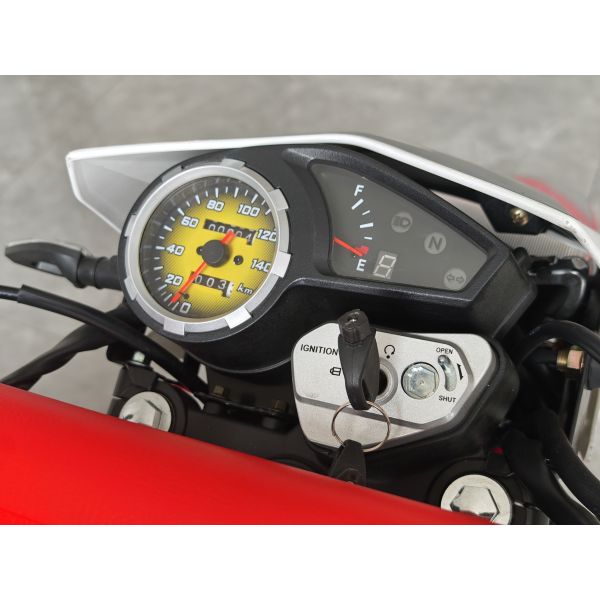

Brazil off-road 2010 model cover, CG200CC engine, Youli Keihin carburetor, maintenance-free battery, straight front shock absorber, single rear shock absorber without cradle, ordinary instrument, front and rear mesh wheels, deep tooth tires (front 3.00-21, rear 4.10-18), reinforced square tube flat fork, aluminum alloy muffler, front disc brake, rear drum brake, aluminum alloy rear handrail. Classic diamond rearview mirror.


Specifications:

Item Parameter
Dimensions (Length x Width x Height) 2090×900×1230mm
Seat Height 890mm
Wheelbase 1360mm
Minimum Ground Clearance 285mm
Maximum Load 150kg
Steering Angle 38
Side Stand Tilt Angle 13
Ride Capacity 2 Person
Dry Weight 118kg
Fuel Tank Capacity 11.5L
Front Braking System Disc brakes
Rear Braking System Drum brakes
Front Tire Size 90/100-21
Rear Tire Size 120/90-18
Battery Size 12V/6.5Ah
Start-up acceleration 14S
Overtaking acceleration 13S
Lubrication method Pressure, Splash
Final gear ratio 15:43


Street Legal 200cc Motocross Dirt Bike Motorcycles With Front Disc And Rear Drum Brakes

Street Legal 200cc Motocross Dirt Bike Motorcycles With Front Disc And Rear Drum Brakes

Street Legal 200cc Motocross Dirt Bike Motorcycles With Front Disc And Rear Drum Brakes

Street Legal 200cc Motocross Dirt Bike Motorcycles With Front Disc And Rear Drum Brakes


FAQ

Q1. About us:

A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.

Q2. Payment Terms:

A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.

Q3. Delivery Timeline:

A: Depending on the order quantity, usually around 45 working days

Q4. Customization:

A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.

Q5. Packaging Parameters:

A: The size of SKD is 1830×460×840mm, and a 40HQ container can hold 96 units.

The size of CKD is 1350×760×380mm, and a 40HQ container can hold 138 units.

Q6. Minimum Order Quantity:

A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.

Q7. After-sales Service:

We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
