Specifications
Brand Name :
OEM
Model Number :
YH150GY-16
Place of Origin :
Chongqing, China
MOQ :
40HQ
Price :
Negotiable
Delivery Time :
45 work days
Packaging Details :
SKD 93PCS/40HQ,CKD 125PCS/40HQ
Supply Ability :
Customized
Ride Capacity :
2 Person
Engine :
4 stroke
Transmission method :
Chain drive
Transmission :
5-speed
Ignition method :
CDI
Lubrication method :
Pressure, splash
Clutch type :
Multi-plate wet clutch, manual
Description

Description:

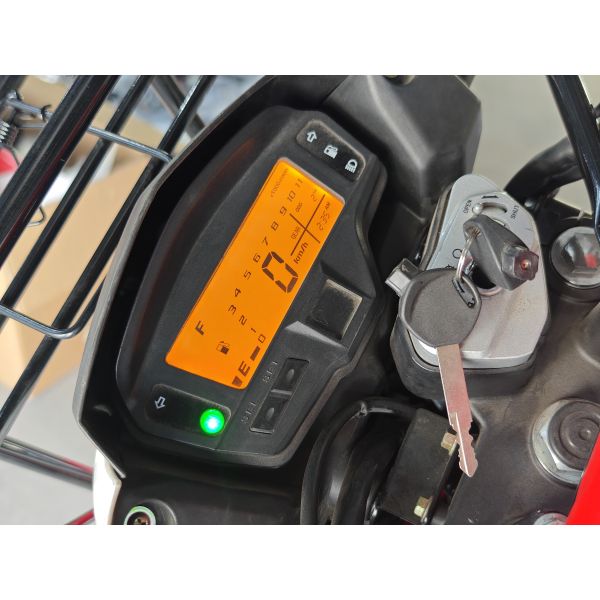

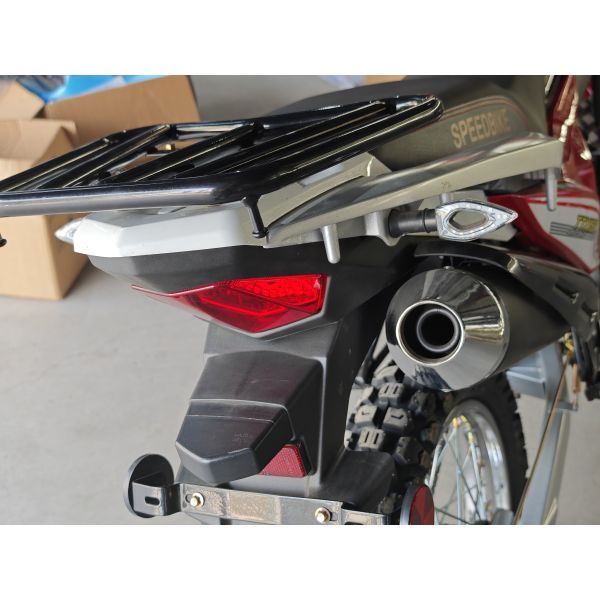

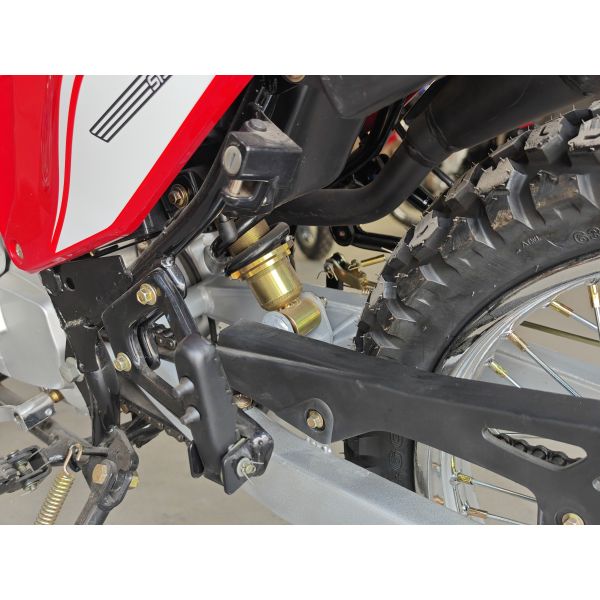

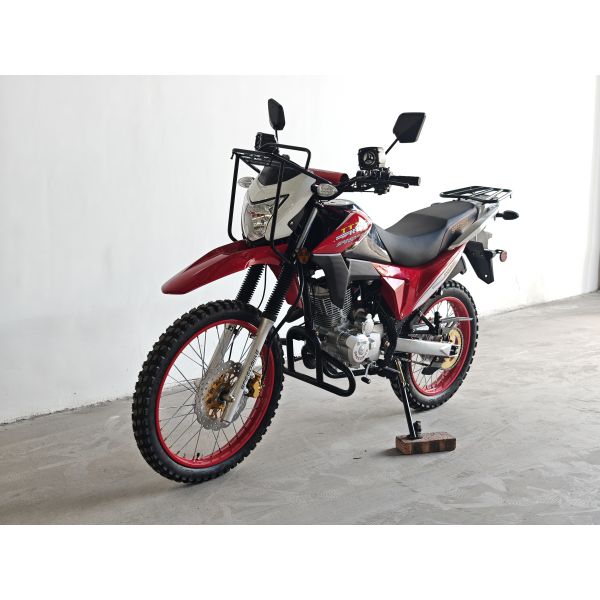

Brazil off-road 2016 new model covers, CG150CC engine, Youli Keihin carburetor, maintenance-free battery, straight front shock absorber, single rear shock absorber without bracket, ordinary instrument, front and rear mesh wheels, deep tooth tires (front 90/100-19, rear 110/100-17), reinforced plate flat fork, high temperature paint muffler, front disc brake, rear drum brake, aluminum alloy rear handrail. Classic diamond rearview mirror.

Specifications:

Item Parameter
Dimensions (Length x Width x Height) 2100×860×1180mm
Seat Height 900mm
Wheelbase 1350mm
Minimum Ground Clearance 300mm
Maximum Load 150kg
Steering Angle 35
Side Stand Tilt Angle 14
Ride Capacity 2 Person
Dry Weight 115kg
Fuel Tank Capacity 12L
Front Braking System Disc brakes
Rear Braking System Drum brakes
Front Tire Size 90/100/21
Rear Tire Size 110/90/18
Battery Size 12V/6.5Ah
Engine Type Single cylinder, air-cooled, four-stroke
Engine displacement 162
Bore x stroke 62×53
Compression ratio 9.0:1
Maximum power 8.8/8000(kW/r/min)
Maximum torque 11.3/6500(N·m/r/min)
Maximum speed 90km/h
Start-up acceleration 14S
Overtaking acceleration 13S
Lubrication method Pressure, Splash
Oil volume 1.1L
Clutch type Multi-plate wet clutch, manual
Ignition method CDI
Spark plug A8RTC
Starting method Electric kick starter
Transmission method Chain drive
Final gear ratio 15:43

Brazil 150CC Off Road Touring Motorcycle With High Temp Paint Muffler Easy Handling

Brazil 150CC Off Road Touring Motorcycle With High Temp Paint Muffler Easy Handling

Brazil 150CC Off Road Touring Motorcycle With High Temp Paint Muffler Easy Handling

Brazil 150CC Off Road Touring Motorcycle With High Temp Paint Muffler Easy Handling

Frequently Asked Questions:

Q1. About us:

A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.

Q2. Payment Terms:

A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.

Q3. Delivery Timeline:

A: Depending on the order quantity, usually around 45 working days

Q4. Customization:

A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.

Q5. Packaging Parameters:

A: The size of SKD is 1890×460×840mm, and a 40HQ container can hold 93 units.

The size of CKD is 1400×760×380mm, and a 40HQ container can hold 125 units.

Q6. Minimum Order Quantity:

A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.

Q7. After-sales Service:

We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
