Specifications
Brand Name :
OEM
Model Number :
YH200GY-B
Place of Origin :
Chongqing, China
MOQ :
40HQ
Price :
Negotiable
Supply Ability :
Customized
Delivery Time :
45 work days
Packaging Details :
SKD 96PCS/40HQ,CKD 170PCS/40HQ
Ride Capacity :
2 Person
Engine :
4 stroke
Transmission method :
Chain drive
Transmission :
5-speed
Ignition method :
CDI
Lubrication method :
Pressure, splash
Clutch type :
Multi-plate wet clutch, manual
Description

Description:

ENGINE:

CG200

ENGINE TYPE

SINGLE CYLINDER, AIR-COOLED, FOUR-STROKE

DISPLACEMENT:

197CC

MAX. POWER:

11/7500KW/R/MIN

MAX. TORQUE:

16/6500N.M./RPM

IGNITION TYPE:

CDI

START SYSTEM:

ELECTRICAL/KICK

TRANSMISSION:

CHAIN DRIVE

TYRE:

FRONT 2.75/21 REAR 4.10/18

BRAKE:

FRONT AND REAR DRUM

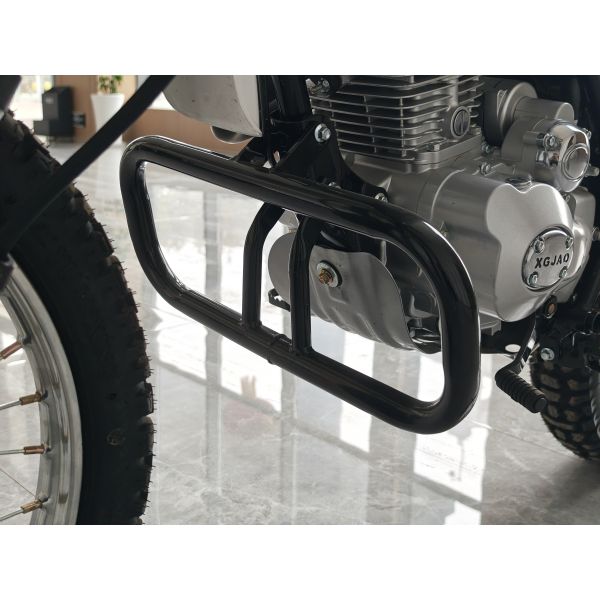

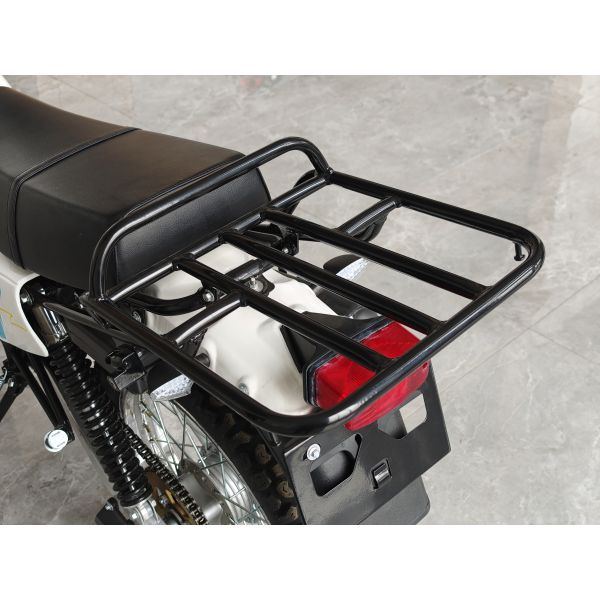

CG200CC power, front disc and rear drum, front and rear mesh wheels, Yuanxing tires, shunting shock absorbers, Honda original 110 drums, square tube flat forks, LED turn signals, with large shelves, bumpers, handlebar guards. With dual remote control anti-theft devices, MP3, USB charger, silver-white engine protection plate, maintenance-free 12V6.5AH battery.


Specifications:

Item Parameter
Dimensions (Length x Width x Height) 2150×820×1200mm
Seat Height 900mm
Wheelbase 1400mm
Minimum Ground Clearance 220mm
Maximum Load 150kg
Steering Angle 35
Side Stand Tilt Angle 14
Ride Capacity 2 Person
Dry Weight 120kg
Fuel Tank Capacity 9L
Front Braking System Drum brakes
Rear Braking System Drum brakes
Front Tire Size 2.75/21
Rear Tire Size 4.10/18
Battery Size 12V/6.5Ah
Engine Type Single cylinder, air-cooled, four-stroke
Engine displacement 197
Bore x stroke 63.5×62.2
Compression ratio 9.0:1
Maximum power 11/7500(kW/r/min)
Maximum torque 16/6500(N·m/r/min)
Maximum speed 95km/h
Start-up acceleration 15S
Overtaking acceleration 10S
Lubrication method Pressure, Splash
Oil volume 1.1L
Clutch type Multi-plate wet clutch, manual
Ignition method CDI
Spark plug A8RTC
Starting method Electric kick starter
Transmission method Chain drive
Final gear ratio 15:46


200CC Chopper Motorbike 4 Stroke With Yuanxing Tires And Honda Original 110 Wheels

200CC Chopper Motorbike 4 Stroke With Yuanxing Tires And Honda Original 110 Wheels

200CC Chopper Motorbike 4 Stroke With Yuanxing Tires And Honda Original 110 Wheels

200CC Chopper Motorbike 4 Stroke With Yuanxing Tires And Honda Original 110 Wheels


Frequently Asked Questions:

Q1. About us:

A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.

Q2. Payment Terms:

A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.

Q3. Delivery Timeline:

A: Depending on the order quantity, usually around 45 working days

Q4. Customization:

A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.

Q5. Packaging Parameters:

A: The size of SKD is 1830×460×840mm, and a 40HQ container can hold 96 units.

The size of CKD is 1250×760×380mm, and a 40HQ container can hold 170 units.

Q6. Minimum Order Quantity:

A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.

Q7. After-sales Service:

We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
