Specifications
Brand Name :
Sinoseen
Model Number :
SNS-DZ1147-V1.0
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Type :
USB Camera Module
Sensor :
PS5268 1/2.7 inch
Resolution :
2MP 1920*1080
Dimensions :
Customizable
Frame Rate :
25FPS
Lens FOV :
57°
Interface :
USB
Description

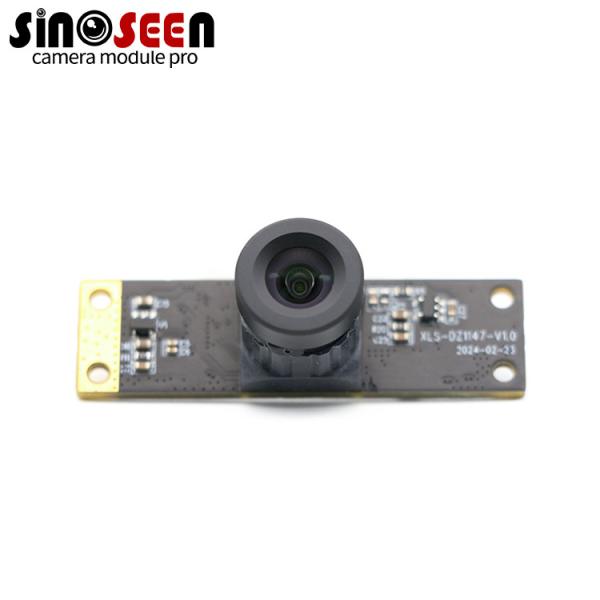

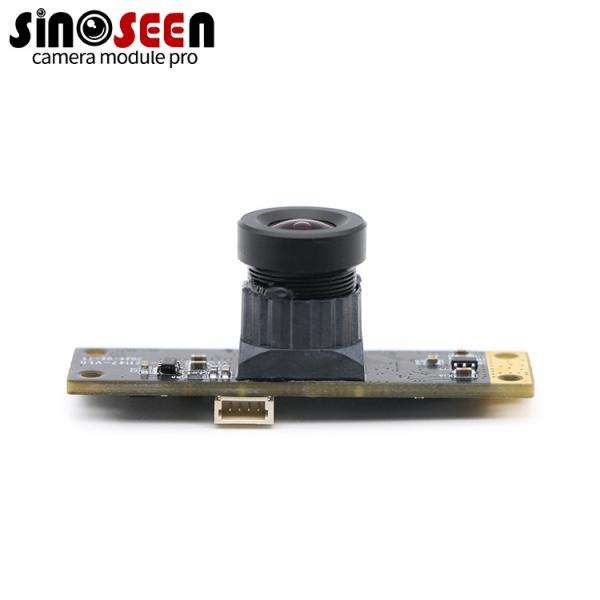

Looking to simplify your product design without sacrificing Full HD recording performance? The Sinoseen SNS-DZ1147-V1.0 Camera Module is your ideal choice. This module, featuring the PS5268 2MP CMOS image sensor, is capable of capturing 1920x1080 (1080p) HD video and recording it at a smooth rate of 25 frames per second. Its fixed-focus design eliminates complex autofocus mechanisms, significantly reducing hardware costs and design complexity, effectively solving the pain points of high cost and difficult integration associated with traditional solutions. This makes it perfect for driving recorders, Internet of Things (IoT) devices, and various embedded systems.


Via a standard USB interface, the module can be easily connected to a variety of devices, enabling rapid deployment and broad compatibility. It strikes a perfect balance between image quality, frame rate, and ease of use, providing an excellent solution for budget-sensitive projects that require reliable high-definition video input. Choose the Sinoseen SNS-DZ1147-V1.0 to achieve high-quality Full HD recording with lower costs and simpler integration, boosting your product's market competitiveness!


Specification

Module

SNS-DZ1147-V1.0
Sensor PS5268 CMOS
Image sensor size 1/2.7 inch
Pixel 2MP
Most effective pixels 1920*1080
Pixel Size 3.0um*3.0um
Frame rate 25fps
Optical distortion <-0.5%
Image sensor Data output RAW Data 10bits
Focus type Fixed focus
Output interface USB2.0
Video output MJPG/YUV
Output formats RAW Bayer 10bits
Max S/N ratio TBD
Dynamic TBD
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
