Specifications
Brand Name :
Sinoseen
Model Number :
SNS-DZ1147-V1.0
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Type :
USB Camera Module
Sensor :
PS5268 1/2.7 inch
Resolution :
2MP 1920*1080
Dimensions :
Customizable
Frame Rate :
25FPS
Lens FOV :
57°
Interface :
USB
Description

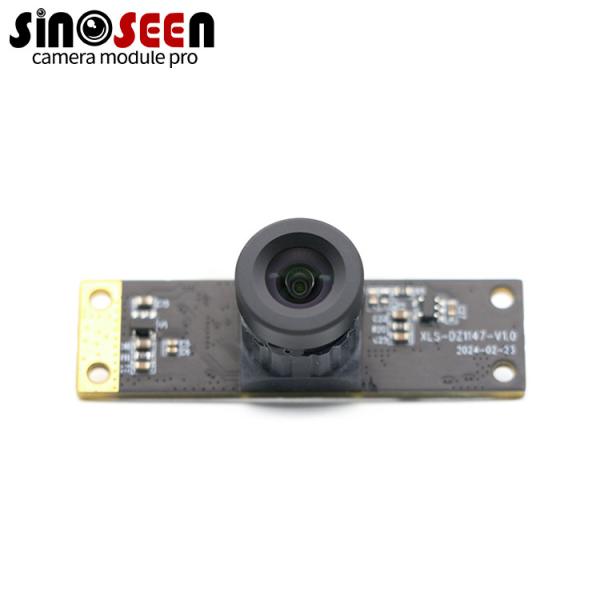

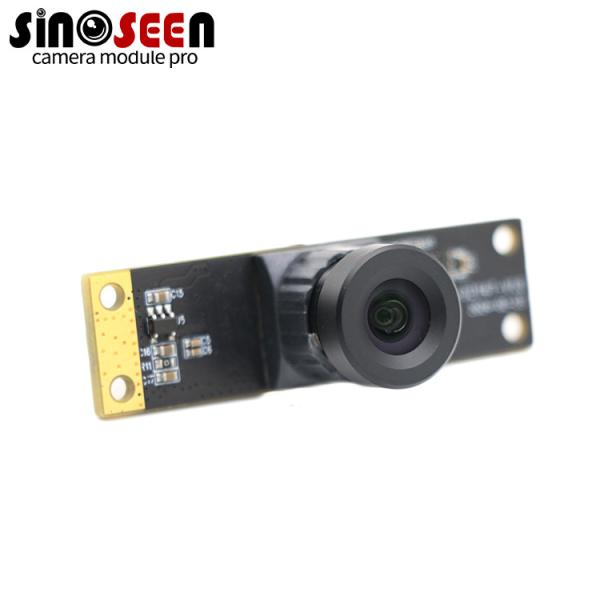

Still concerned about camera module compatibility? The Sinoseen SNS-DZ1147-V1.0 Camera Module, with its broad USB compatibility, offers you a worry-free HD video input solution. This module, featuring the PS5268 2MP CMOS sensor, supports 1920x1080 Full HD (1080p) video at 25 frames per second, ensuring clear and smooth footage output in various applications such as driving recorders, webcams, and security surveillance. It addresses the common pain point of poor driver compatibility with traditional cameras; via a standard USB interface, it easily adapts to mainstream operating systems including Windows, Linux, macOS, and Android, delivering true plug-and-play functionality.


The fixed-focus design not only reduces costs but also enables this module to excel in stability and reliability, requiring no post-installation maintenance. Whether you are developing a cost-effective consumer electronic product or an embedded system with high stability requirements, the Sinoseen SNS-DZ1147-V1.0 provides a high-value, easy-to-integrate solution. Choose us to make your products more competitive in the market and offer users an outstanding visual experience!


Specification

Module

SNS-DZ1147-V1.0
Sensor PS5268 CMOS
Image sensor size 1/2.7 inch
Pixel 2MP
Most effective pixels 1920*1080
Pixel Size 3.0um*3.0um
Frame rate 25fps
Optical distortion <-0.5%
Image sensor Data output RAW Data 10bits
Focus type Fixed focus
Output interface USB2.0
Video output MJPG/YUV
Output formats RAW Bayer 10bits
Max S/N ratio TBD
Dynamic TBD
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
