Revolutionize Your Video 640x480 resolution Conferencing Experience with Sinoseen BF20A6 1/10-inch CMOS sensor USB Camera Module
Revolutionize Your Video 640x480 resolution Conferencing Experience with Sinoseen BF20A6 1/10-inch CMOS sensor USB Camera Module
Revolutionize Your Video 640x480 resolution Conferencing Experience with Sinoseen BF20A6 1/10-inch CMOS sensor USB Camera Module
Revolutionize Your Video 640x480 resolution Conferencing Experience with Sinoseen BF20A6 1/10-inch CMOS sensor USB Camera Module
Revolutionize Your Video 640x480 resolution Conferencing Experience with Sinoseen BF20A6 1/10-inch CMOS sensor USB Camera Module
Revolutionize Your Video 640x480 resolution Conferencing Experience with Sinoseen BF20A6 1/10-inch CMOS sensor USB Camera Module
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-DZ1140-V1.0
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Type :
USB Camera Module
Sensor :
BF20A6 1/10 inch
Resolution :
30W 640*480
Dimensions :
Customizable
Frame Rate :
30FPS
Lens FOV :
51°
Interface :
USB
Description

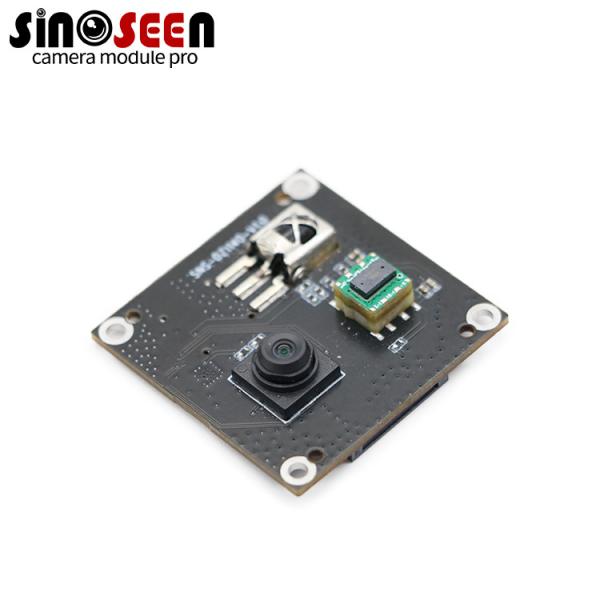

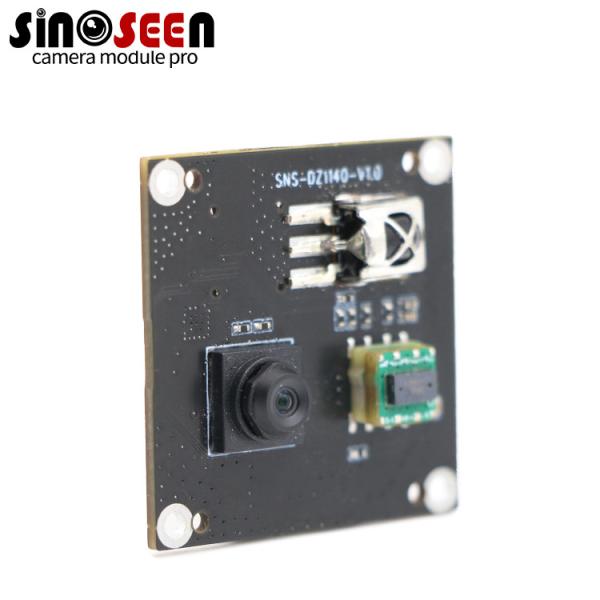

Looking to simplify your product design while comprehensively enhancing the video conferencing experience? The Sinoseen SNS-DZ1140-V1.0 Camera Module is your ideal choice. This module, featuring a BF20A6 1/10-inch CMOS sensor, is capable of delivering high-quality video capture at 640x480 resolution and a smooth 30 frames per second. Its fixed-focus design eliminates complex focusing mechanisms, significantly reducing hardware costs and design complexity, effectively addressing the pain points of high cost and difficult integration associated with traditional solutions. This makes it perfect for video conference phone equipment and various embedded communication systems.


Via a standard USB interface, the module can be easily connected to a variety of devices, enabling rapid deployment and broad compatibility. The BF20A6 sensor's good low-light performance ensures clear images under various conference room lighting conditions. Furthermore, its ultra-low 30W power consumption makes it an energy-efficient and eco-friendly solution. Choose the Sinoseen SNS-DZ1140-V1.0 to achieve high-quality video conferencing capabilities with lower costs and simpler integration, boosting your product's market competitiveness and optimizing user communication!


Specification

Module

SNS-DZ1140-V1.0
Sensor BF20A6 CMOS
Image sensor size 1/10 inch
Pixel 30W
Most effective pixels 640*480
Pixel Size 2.25um*2.25um
Frame rate 30fps
Optical distortion <=15.5%
Image sensor Data output RAW Data 10bits
Focus type Fixed focus
Output interface USB2.0
Video output YUV
Output formats RAW Bayer 10bits
Max S/N ratio TBD
Dynamic TBD
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
