Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-GM1104-V1.0
Certification :
RoHS
Place of Origin :
Shenzhen,China
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3weeks
Packaging Details :
Tray+Anti-static bag in carton box
Type :
MIPI Camera Module
Sensor :
IMX377 1/2.3 inch
Resolution :
12MP 4000*3000
Dimensions :
Customizable
EFL :
4.3
Lens FOV :
85°
Interface :
MIPI
Description

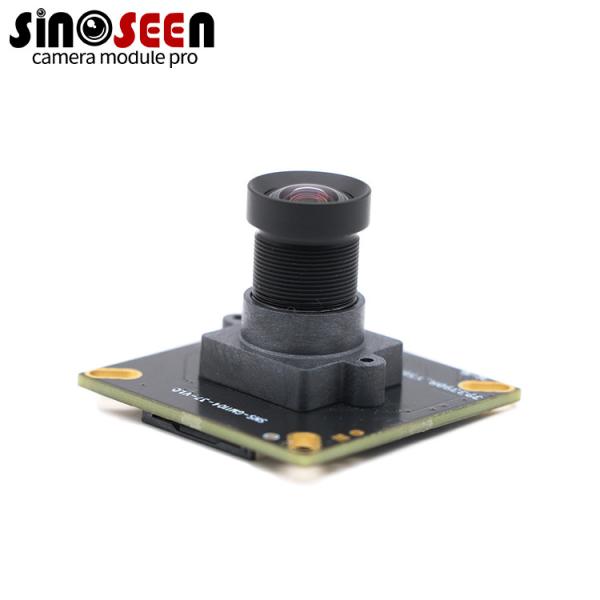

Still looking for an uncompromising imaging solution for your small portable devices? The Sinoseen SNS-GM1104-V1.0 Camera Module, with its ultra-compact design and high-performance capabilities, is the ideal choice for action cameras and smart security systems. It features Sony's 12MP IMX377 CMOS image sensor, effortlessly capturing richly detailed, clear images with its 4152 x 3062 effective pixels, completely solving the pain point of limited image quality in small devices. Its 1/2.3-inch optical format ensures excellent image quality while maintaining the module's miniaturization.


This module utilizes a MIPI data interface, a standard optimized for mobile and embedded applications, guaranteeing high-speed and low-power data transmission. This makes it perfect for products with strict battery life and integration space requirements. Whether your device needs to handle challenging environments or simply requires high-quality image capture, the Sinoseen SNS-GM1104-V1.0 provides a stable and reliable solution. Choose this module now to empower your portable devices and achieve beyond-expectation imaging results!


Specification

Module

SNS-GM1104-V1.0
Sensor IMX377 CMOS
Image sensor size 1/2.3 inch
Pixel 12MP
Most effective pixels 4000*3000
Pixel Size 1.55um*1.55um
Image sensor Data output RAW Data 10bits
Max S/N ratio TBD
Dynamic TBD
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC











Effortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable DevicesEffortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable DevicesEffortlessly Capture Stunning Images with the Sinoseen 4152 x 3062 Camera Module imx377 Perfect for Small Portable Devices
