Specifications
Brand Name :
sinoseen
Model Number :
XLS-thermal-384
Certification :
ce,iso,rohs
Place of Origin :
china
MOQ :
3
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3week
Packaging Details :
Tray+Anti-static bag in carton box
Description

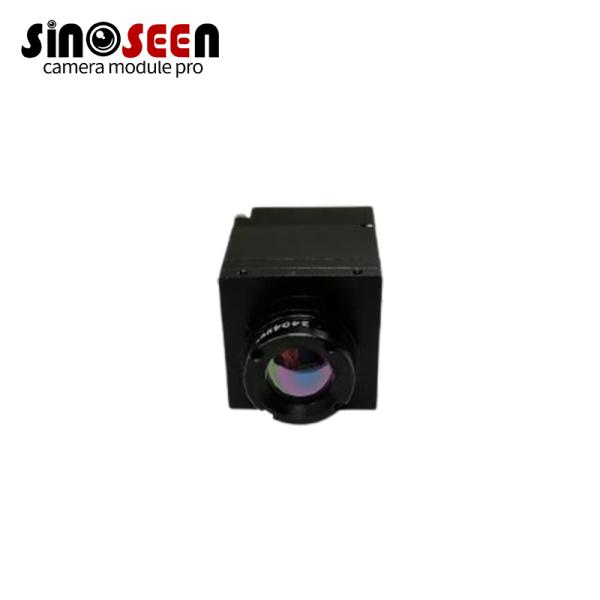

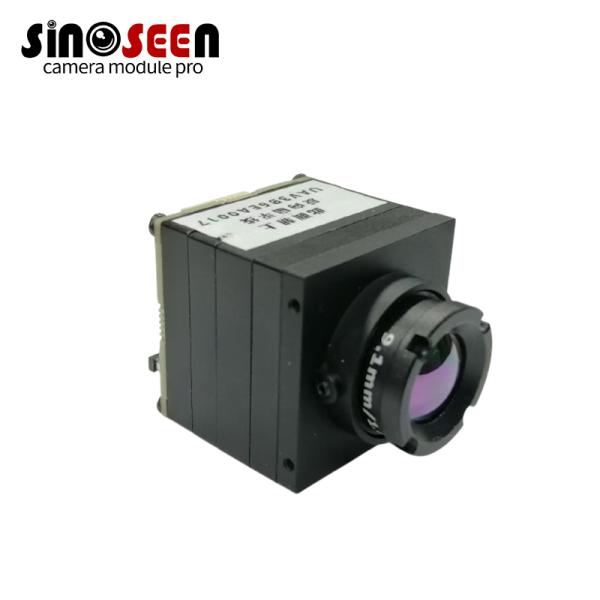

Compact Uncooled Thermal Imaging Core – Tailored for Drones, Vehicles, and Industry 4.0

Engineered for modern high-performance systems, this 384x288 uncooled thermal imaging core features a VOx infrared detector with a fine pixel pitch of 12μm. Its low NETD (≤40mK) and high-speed frame output ensure crisp thermal imagery and real-time observation, even in rapidly changing environments.

Ideal for integration into automotive night vision, UAV thermal surveillance, or industrial temperature monitoring, this core features advanced image processing capabilities and multiple display modes. Its low power design (≤1W) and compact size ensure seamless integration.

Core Benefits:

  • Precise imaging with ≤40mK sensitivity

  • Multi-mode output: Iron Red, Rainbow, White/Black Hot

  • Small and rugged – perfect for mobile/embedded use

  • CVBS video out, RS232 control

  • Reliability across -20°C to +60°C operation

IR

Detector

Resolution

384x288

Spectral range

8~14μm

Detector type

VOx

Pixth pitch

12μm

NETD

≤40mK

Lens

9.1mm

Frame rate

≤50Hz


adjustment

Bright or Contrast adjustment

Auto or manual

Polarity

White Hot or Black Hot

Color palettes

Iron, Iron invert, Rainbow,Feather

E-zoom

X1,X2,X4

Image processing

NUC,digital filter noise reduction, digital details enhanced

Image mirror

Left and right , Up and down

Power

Power

Overcurrent protection, overvoltage protection, reverse input protection

Power input

DC 5~12V

Power consumption

≤ 1W

Common

Video output

CVBS

Communicationport

RS232

Operating Temperature

-20℃~+60℃

Storage Temperature

-45℃~+85℃

Humidity

5～95%, non-condensing

Vibration

6.06g,all axial for random vibration

Shock

40g,4ms,rear peak sawtooth wave at 3 axes of 6 directions

Dimension

26×26×21.1mm(without lens and connectors)

Weight

≤23g(without lens and connectors)

Customization Services Available We tailor solutions to your system—adjust frame rates, interfaces, optics, or calibration as needed. Fast prototyping and scalable production supported.


About Sinoseen Sinoseen delivers industrial-grade imaging modules, combining innovation with manufacturing scale. Trusted by top-tier clients in AI vision, security, and OEM devices.
