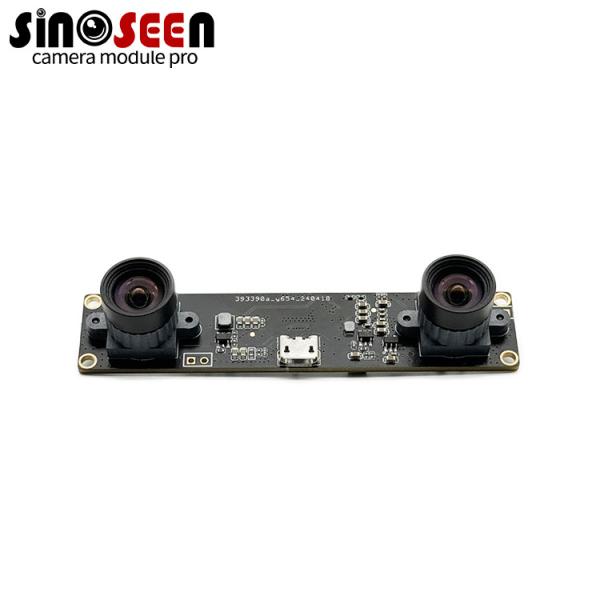

120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-SM1159-V1.0
Certification :
RoHS
Place of Origin :
China
MOQ :
5
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3week
Packaging Details :
Tray+Anti-static bag in carton box
Stable Temperature :
0°C to 50°C
Dsp :
USB2.0 DSP
Data Storage :
Video, Pictures
Precision :
≥5mil
Standard Configuration :
USB3.0 High Speed
Chip Type :
OV5648
Image Resolution :
640*480
Image Sensor :
CMOS
Keywords :
IP Camera Module
Distortion :
＜22%
Interface :
USB
Gpu :
Mali-T860
Max Pixel Rate :
28Mp/s
Snr :
≥50db
Sensor Type :
CMOS
Description

  • The Sinoseen 1/4 "CMOS OV9281 image sensor module is equipped with advanced digital sensors that support resolutions up to 120 FPS. It performs well in high resolution and low light environments, making it ideal for applications such as video conferencing, surveillance, and industrial inspection. The module provides rich colors and high-quality imaging, supports USB2.0 plug and play, and is compatible with multiple operating systems. For those looking for superior image performance.

    Signal SNS-SM1159-V1.0 REMARKS
    Image Sensor Size(图像感光尺寸) 1/4 inch
    Effective Pixels(有效像素) 1280H*800V
    Pixel size(像素点大小) 3 um*3 um
    Optical distortion(畸变) <-1.2%
    Image sensor Data output(数据输出类型) Raw Bayer 10bits
    Video output(输出格式) MPJG/YUV

    Maximum Frame Rates(分辨率和帧率)

    2560*800 120FPS 1280*800 120FPS 1280*792 120FPS 2560*720 120FPS 1280*720 120FPS 1280*712 120FPS

    1600*600 120FPS 800*600 120FPS

    800*592 120FPS 1280*480 210FPS

    640*472 210FPS 1280*400 210FPS

    640*400 210FPS 640*392 210FPS

    640*480 210FPS 640*240 210FPS

    320*240 210FPS 320*232 210FPS

    MPJG
    SNR max(信噪比) TBD
    Dynamic range(动态范围) TBD
    Min. Illumination(最低照度) TBD
    Digital interface(连接接口) USB2.0 线长1.5米
    Transfer rates(接口速度) 480MB/S
    Power requirements(电源) 5V±5%
    Storage temperature储藏温度 -20℃to70℃
    operating temperature 工作温度 -10℃to60℃
    Power Consumption (功率) NO LED /
    IR-LED /
    PCB printig ink black
    OS(支持系统) Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC )
    Lens view (默认镜头) M12*P0.5 LENS
    Lens Construction 镜头结构 1G5P+650IR
    F/NO光圈 2.4±5%
    EFL 有效焦距 2.6 mm±5%
    FOV 角度 D :83°±3°
    对焦方式 定焦
    拍摄距离 60cm-∞
