8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-GM1133-V1.0
Certification :
RoHS
Place of Origin :
China
MOQ :
5
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3week
Packaging Details :
Tray+Anti-static bag in carton box
Sensor Type :
CMOS
Module Size :
Two Layers 38mmX38mm
Audio Input :
Channel Audio MIC Input
Standard Interface :
USB2.0 High Speed
Pixel Size :
1.4µm x1.4µm
Coded Format :
H.265/H.264
Power Consumption :
About 140mA
Object Distance :
6CM-200CM
Driving Method :
Drive Free
F Number :
2.2
Operating Current :
610mA(VGA)
Max Image Circle :
4.8mm
Artwork :
8-Layer Design
Warranty :
10 Years
Compatibility :
Windows, Mac, Linux
Description

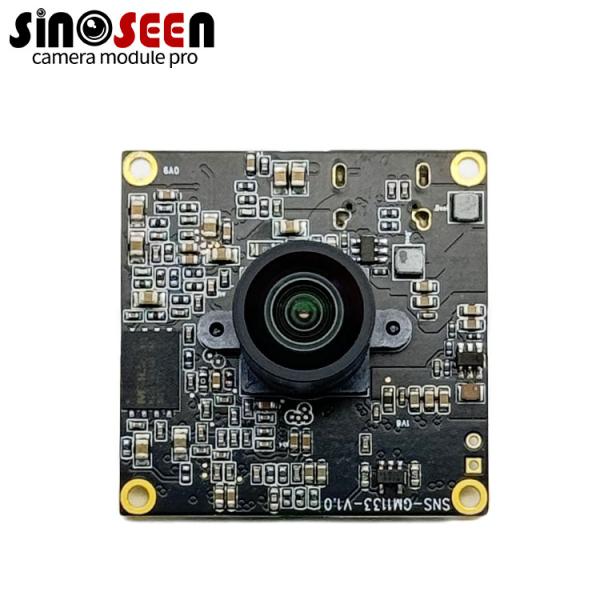

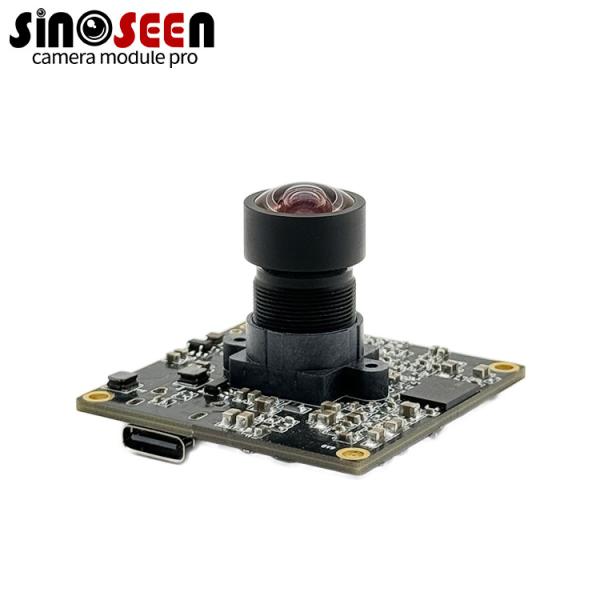

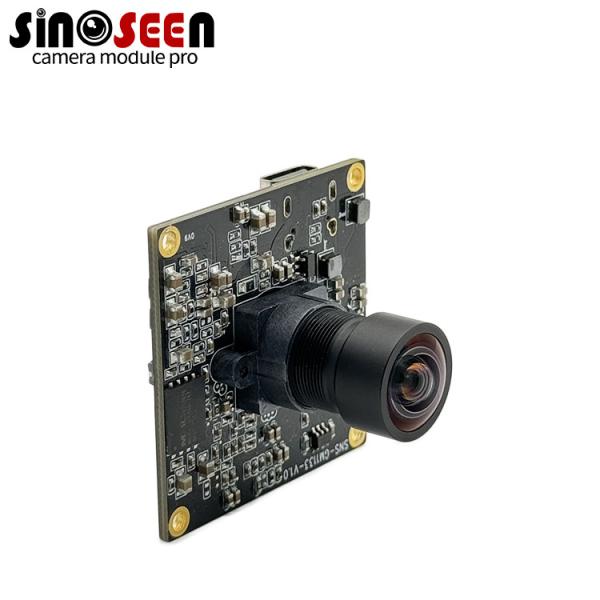

  • Sinoseen GM1133 1/2.8" vb1940 CMOS 5MP camera module with high-speed USB2.0 interface for seamless connection. This advanced digital image sensor delivers sharp images at a resolution of 2592x1944 and a frame rate of 30FPS, making it particularly suitable for machine vision applications. Support plug and play functions and a variety of operating systems, widely used in video conferencing, monitoring, industrial testing and other fields. It features enhanced low-light performance and customizable image Settings.

    Upgrade your imaging solution with Sinoseen multifunctional camera modules that perfectly meet professionals' needs for superior image quality and reliability in a variety of visual recognition scenarios.

    Signal SNS-GM1133-V1.0 REMARKS
    Image Sensor Size(图像感光尺寸) 1/2.8inch
    Effective Pixels(有效像素) 2592H*1944V
    Pixel size(像素点大小) 2.0 um*2.0 um
    Optical distortion(畸变) <0.45%
    Image sensor Data output(数据输出类型) Raw Bayer 10bits
    Video output(输出格式) MPJG/YUV

    Maximum Frame Rates(分辨率和帧率)

    		 2592*1944 30 FPS 1920*1080 30 FPS 1600*1200 30 FPS

    MJPG
    SNR max(信噪比) TBD
    Dynamic range(动态范围) TBD
    Min. Illumination(最低照度) TBD
    Digital interface(连接接口) Type-c USB2.0 线长1.5米
    Transfer rates(接口速度) 480MB/S
    Power requirements(电源) 5V±5%
    Storage temperature储藏温度 -20℃to70℃
    operating temperature 工作温度 -10℃to60℃
    Power Consumption (功率) NO LED /
    IR-LED /
    PCB printig ink black
    OS(支持系统) Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC )
    Lens view (默认镜头) M12*P0.5 LENS
    Lens Construction 镜头结构 3G2P+650IR
    F/NO光圈 3.0±5%
    EFL 有效焦距 4.18 mm±5%
    FOV 角度 82°±3°
    对焦方式 定焦
    拍摄距离 60cm-∞
