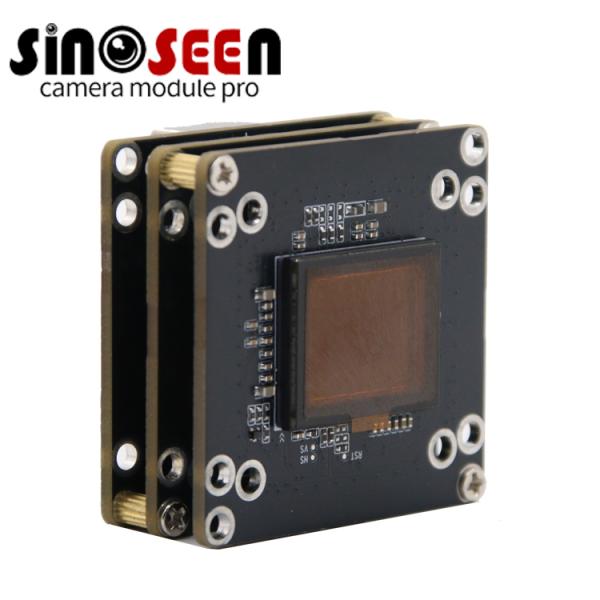

High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-DZ1224-48-V1.0
Certification :
RoHS
Place of Origin :
China
MOQ :
5
Price :
10-100usd or negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3week
Packaging Details :
Tray+Anti-static bag in carton box
Focus Type :
Auto Focus
Image Stabilization :
Optical
Feature :
Low light performance
Lens Fov :
70°(optional)
Lens Type :
Fixed Focus
Type :
USB camera module
Description

Product Description

This CMOS USB3.0 camera module is built for machine vision and industrial automation. With a 1/1.2 inch CMOS sensor, it delivers 1920×1080 resolution at up to 90fps, ensuring sharp, detailed, and real-time imaging.

The USB3.0 interface provides 3Gbps transfer speed, supporting uncompressed and high frame rate data output. It is compatible with MJPG and YUY2 formats for flexible integration. Users can capture high-quality images and videos without lag.

The camera supports advanced image adjustment including exposure, brightness, contrast, and saturation. It is engineered for low light environments, maintaining excellent performance under challenging conditions.

It works seamlessly with Windows, Linux, Android, and Mac systems, offering plug-and-play connectivity without external drivers. Standard C-mount and custom lenses are supported, enabling flexible adaptation to diverse projects.

Applications include industrial inspection, machine vision systems, quality control, automation, surveillance, and access management.

Highlights

  • 1/1.2 inch CMOS sensor with 1080P 90fps output

  • Optimized for machine vision and industrial inspection

  • USB3.0 high-speed interface, 3Gbps bandwidth

  • High accuracy image capture in low light

  • Supports real-time video and still image formats


Item Specification
Model Signal SNS-DZ1224-48-V1.0
Image Sensor Size 1/1.2” inch
Effective Pixels 1920 × 1080
Pixel Size 5.8 µm × 5.8 µm
Image Sensor Data Output Raw Bayer 10 bits
Video Output Format MJPG / YUY2
Maximum Resolution & Frame Rates - 1920 × 1080 → MJPG 90 FPS / YUY2 60 FPS
- 1280 × 960 → MJPG 90 FPS / YUY2 90 FPS
- 1280 × 720 → MJPG 90 FPS / YUY2 90 FPS
- 640 × 480 → MJPG 90 FPS / YUY2 90 FPS
SNR (max) TBD
Dynamic Range TBD
Minimum Illumination TBD
Digital Interface USB3.0 (Type-B)
Transfer Rates 3 Gbps
Power Requirements 5V ± 5%
Storage Temperature -40℃ ~ 70℃
Operating Temperature -30℃ ~ 60℃
Power Consumption NO LED / IR-LED / PCB printing ink black
Operating System Support Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported)
Effective Focal Length (EFL) /
F/NO (Aperture) /
Field of View (FOV) /
Optical Distortion /
Lens Construction /
Lens View (Default Lens) /
Focus Type Fixed focus
Shooting Distance 60 cm ~ ∞
