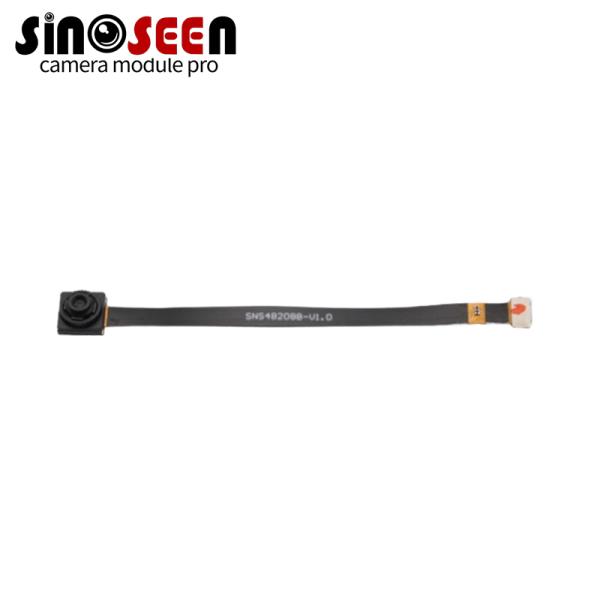

Sony IMX586 48MP Back Illuminated Camera module 1/2.0 Inch Optical Format High Resolution Imaging for Smartphones Tablets
Sony IMX586 48MP Back Illuminated Camera module 1/2.0 Inch Optical Format High Resolution Imaging for Smartphones Tablets
Sony IMX586 48MP Back Illuminated Camera module 1/2.0 Inch Optical Format High Resolution Imaging for Smartphones Tablets
Sony IMX586 48MP Back Illuminated Camera module 1/2.0 Inch Optical Format High Resolution Imaging for Smartphones Tablets
Sony IMX586 48MP Back Illuminated Camera module 1/2.0 Inch Optical Format High Resolution Imaging for Smartphones Tablets
Sony IMX586 48MP Back Illuminated Camera module 1/2.0 Inch Optical Format High Resolution Imaging for Smartphones Tablets
Sony IMX586 48MP Back Illuminated Camera module 1/2.0 Inch Optical Format High Resolution Imaging for Smartphones Tablets
Sony IMX586 48MP Back Illuminated Camera module 1/2.0 Inch Optical Format High Resolution Imaging for Smartphones Tablets
Specifications
Brand Name :
Sinoseen
Model Number :
SNS482088-V1.0
Certification :
RoHS
Place of Origin :
China
MOQ :
5
Price :
10-100usd or negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3week
Packaging Details :
Tray+Anti-static bag in carton box
Output Formats :
8-10/bit RGB RAW output
Description :
1080P 60fps MIPI CSI-2 Camera module
Type :
Mini Module
Features :
Mini Camera Module
Focus Range :
60cm to Infinity
Output Format :
Linear-12 bit RAW
Focal Length :
3.6mm
Focus Type :
Auto focus
Power Supply :
3.3V
Chip Type :
IMX586
Focus :
Fixed Focus（Customizable）
Video Compression Format :
YUY/MJPG
Network :
TCP
Dimensions :
25mm x 25mm x 5mm
Chroma :
RGB, Bayer
Description

Product Description

The Sony IMX586 sensor is built for modern mobile imaging. It provides 48MP resolution with 0.8um pixels, giving detailed photos without enlarging device size.

Its back-illuminated structure increases light sensitivity, while advanced noise reduction keeps images clean even in low light. With parallel ADC converters, it captures images quickly and accurately.

The IMX586 is designed for smartphones, tablets, and portable devices, supporting everyday photography, video recording, and advanced camera applications. Its compact form factor makes it ideal for slim device designs.

Highlights

  • 48MP high resolution sensor

  • 0.8um compact pixel design

  • Back-illuminated structure for sensitivity

  • Low noise for clearer images

  • Perfect for mobile and tablet devices

Item Specification
Sensor Type CMOS Image Sensor
Diagonal Size 8.0 mm (Type 1/2.0)
Image Size 8032 (H) × 6248 (V) ≈ 50.18 M pixels
Total Number of Pixels 8032 × 6248 ≈ 50.18 M pixels
Number of Effective Pixels - 8032 × 6088 ≈ 48.89 M pixels
- 8000 × 6000 ≈ 48.00 M pixels
Number of Active Pixels 7.504 mm (H) × 5.659 mm (V)
Chip Size 7.504 mm × 5.659 mm
Unit Cell Size (Pixel Size) 0.80 µm × 0.80 µm
Substrate Material Silicon
