48MP CMOS Camera Module USB2.0 Interface Multi-Format Output High Frame Rate Support for Machine Vision
48MP CMOS Camera Module USB2.0 Interface Multi-Format Output High Frame Rate Support for Machine Vision
48MP CMOS Camera Module USB2.0 Interface Multi-Format Output High Frame Rate Support for Machine Vision
48MP CMOS Camera Module USB2.0 Interface Multi-Format Output High Frame Rate Support for Machine Vision
48MP CMOS Camera Module USB2.0 Interface Multi-Format Output High Frame Rate Support for Machine Vision
48MP CMOS Camera Module USB2.0 Interface Multi-Format Output High Frame Rate Support for Machine Vision
48MP CMOS Camera Module USB2.0 Interface Multi-Format Output High Frame Rate Support for Machine Vision
48MP CMOS Camera Module USB2.0 Interface Multi-Format Output High Frame Rate Support for Machine Vision
Specifications
Brand Name :
Sinoseen
Model Number :
SNS-DZ1204-V1.0
Certification :
RoHS
Place of Origin :
China
MOQ :
5
Price :
10-100usd or negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3week
Packaging Details :
Tray+Anti-static bag in carton box
Image Stabilization :
Optical
View Angle :
72°
Pixels :
3840H * 2160V
Keyword :
CMOS Camera Module
Image Colo :
RGB
Keywords :
IP Camera Module
Array Size :
4208x3120
Lens Type :
Fixed
Fov :
D= 85°
Pixel :
8 Mega Pixel
Print Contrast :
20% minimum reflectance
Precision :
≥5mil
Lens Size :
1/6.5inch
Optical Format :
1/1.8" CMOS Image Sensor
Shutter Type :
Electronic Shutter
Description

Product Description

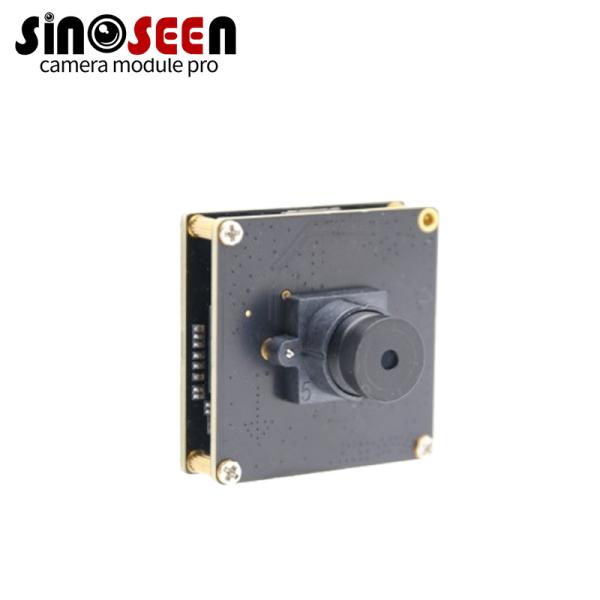

The Signal SNS-GM48M-V1.0 is a 48MP CMOS sensor module with USB2.0 interface. It supports MJPG, YUY2, and Raw Bayer 10-bit outputs, making it adaptable to different imaging needs.

The sensor works across various resolutions and frame rates, including 4K at 25fps and 1080p at 30fps. It ensures stable video performance for both still images and dynamic recording.

With USB2.0 high-speed transfer and plug-and-play support, it runs on Windows, Mac, Linux, and Android platforms.

This camera module is ideal for security monitoring, machine vision, and industrial inspection projects.

Highlights

  • 48MP clear imaging

  • Supports MJPG, YUY2, Raw Bayer

  • Full HD at 30fps

  • USB2.0 high-speed transfer


Item Specification
Model Signal SNS-GM48M-V1.0
Image Sensor Data Output Raw Bayer 10 bits
Video Output Format MJPG / YUY2
Maximum Resolution & Frame Rates (MJPG) - 7968 × 5984 → 3 FPS
- 5696 × 4272 → 5 FPS
- 4608 × 3456 → 10 FPS
- 4160 × 3120 → 10 FPS
- 4000 × 3000 → 10 FPS
- 3840 × 2160 → 25 FPS
- 2592 × 1944 → 20 FPS
- 1920 × 1080 → 30 FPS
- 1600 × 1200 → 20 FPS
- 1280 × 720 → 30 FPS
- 800 × 600 → 20 FPS
- 640 × 480 → 20 FPS
- 320 × 240 → 20 FPS
Maximum Resolution & Frame Rates (YUY2) - 3840 × 2160 → 1 FPS
- 2592 × 1944 → 2 FPS
- 1920 × 1080 → 5 FPS
- 1600 × 1200 → 5 FPS
- 1280 × 720 → 10 FPS
- 640 × 480 → 20 FPS
- 320 × 240 → 20 FPS
SNR (Max) TBD
Dynamic Range TBD
Minimum Illumination TBD
Digital Interface USB2.0
Transfer Rates 480 MB/s
Power Requirements 5V ±5%
Power Consumption Max 800 mA
Storage Temperature -40°C ~ 70°C
Operating Temperature Max 85°C
Operating System Support Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported)
Effective Focal Length (EFL) 3.24 mm ±5%
F/NO (Aperture) 2.2 ±5%
Field of View (FOV) D: 80° / H: 68° / V: 54° ±3°
Optical Distortion < -0.5%
Lens View (Default Lens) M12 × P0.5
Focus Type Fixed focus
