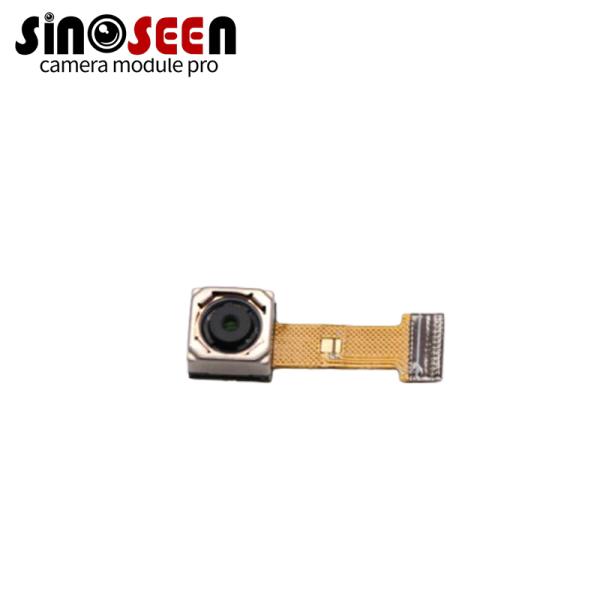

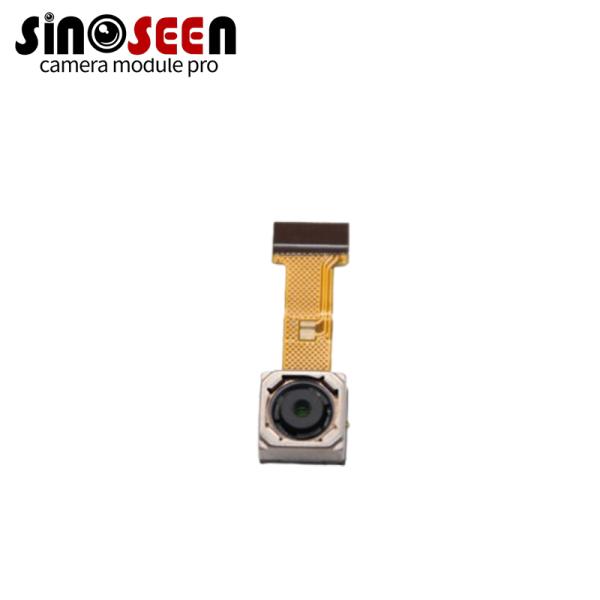

OV5670 5MP CMOS Sensor with 2-Lane MIPI Output 1080P 60fps
OV5670 5MP CMOS Sensor with 2-Lane MIPI Output 1080P 60fps
OV5670 5MP CMOS Sensor with 2-Lane MIPI Output 1080P 60fps
OV5670 5MP CMOS Sensor with 2-Lane MIPI Output 1080P 60fps
OV5670 5MP CMOS Sensor with 2-Lane MIPI Output 1080P 60fps
OV5670 5MP CMOS Sensor with 2-Lane MIPI Output 1080P 60fps
OV5670 5MP CMOS Sensor with 2-Lane MIPI Output 1080P 60fps
OV5670 5MP CMOS Sensor with 2-Lane MIPI Output 1080P 60fps
Specifications
Brand Name :
Sinoseen
Model Number :
SNS52032-V1.0
Certification :
RoHS
Place of Origin :
China
MOQ :
5
Price :
10-100usd or negotiable
Payment Terms :
T/T
Supply Ability :
500000 pieces/month
Delivery Time :
2-3week
Packaging Details :
Tray+Anti-static bag in carton box
Pixel Size :
0.8µm(H) x 0.8µm(V)
Shutter Type :
Electronic Rolling Shutter
Output Format :
RGB Output
Sensor :
IMX335
Lens Fov :
65°
Focusing Type :
AF
Maximum Frame Rate :
3840 × 2160 @ 30fps
Pinout :
24 Pin
Vcm Driver :
DW900W
Dimensions :
25mm x 24.5mm x 6.5mm
Efl :
3.19MM
Sensor Type :
CMOS
Application Type :
Security
Field Of View :
84° (Optional)
Focal Length :
1.58mm
Description

Product Description

The OV5670 sensor captures 5MP images with 10-bit RGB RAW output. It supports HDR and rolling shutter, giving vivid and clear images in all lighting conditions.


The sensor works with a 2-lane MIPI interface and offers frame rates up to 1080P 60fps and VGA 120fps, suitable for mobile cameras, drones, and embedded devices.


It includes on-chip noise reduction and pixel correction, ensuring clean and accurate images. The sensor’s high sensitivity ensures reliable performance in low light.

Highlights

  • 5MP CMOS HDR sensor

  • Rolling shutter with high frame rates

  • 2-lane MIPI output for embedded systems

  • Noise reduction and pixel correction


Item Specification
Active Array Size 2592 × 1944
Pixel Size 1.12 µm × 1.12 µm
Image Area 2945.7 µm × 2214 µm
Lens Size 1/5”
Lens Chief Ray Angle (CRA) 31° non-linear (see figure 9-2)
Input Clock Frequency 6 ~ 27 MHz
Output Interface 2-lane MIPI serial output
Output Formats 10-bit RGB RAW
Maximum Frame Rate - 5MP (2592 × 1944) → 30 FPS
- Quad HD (2560 × 1440) → 30 FPS
- 1080p (1920 × 1080) → 60 FPS
- 720p (1280 × 720) → 60 FPS
- VGA (640 × 480) → 120 FPS
Power Supply - Analog: 2.6 ~ 3.0V (2.8V nominal)
- Core: 1.14 ~ 1.26V (1.2V nominal)
- I/O: 1.7 ~ 3.0V (1.8V or 2.8V nominal)
Power Requirements Active: TBD
Standby: TBD
XSHUTDOWN: TBD
Sensitivity TBD
Maximum S/N Ratio TBD
Dynamic Range TBD
Dark Current TBD
Operating Temperature -30°C ~ +85°C junction temperature
Stable Image Temperature 0°C ~ +60°C junction temperature
Package Dimensions 4080 µm × 3430.2
