Specifications
Video Compression :
H.264
Focus Type :
Auto Focus
Mounting Type :
all
Cable Length :
1m/1.5m
Brand Name :
sinoseen
Interface :
USB BUS POWER 5P-1.25mm
Dimension :
25X25mm
Place of Origin :
China
MOQ :
5
Pixel Size :
3.4μm x 3.4μm
Connection Type :
USB
Model Number :
sns
Lens View :
FOV150°(Optional),F/N(Optional)
Operating Voltage :
DC5V
AEC/AWB/AGC :
Supported
Working Current :
120mA~220mA
Effective Pixels :
HD 648(H)X488(V)
Image Sensor :
1/6.5"
View Angle :
150 Degree
Description

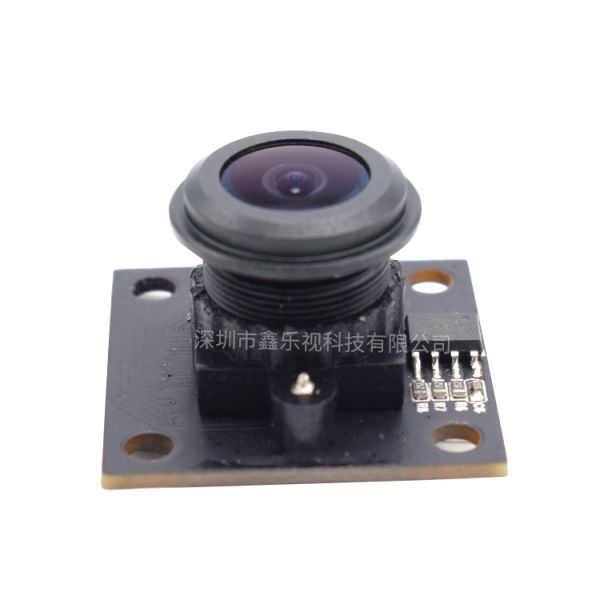

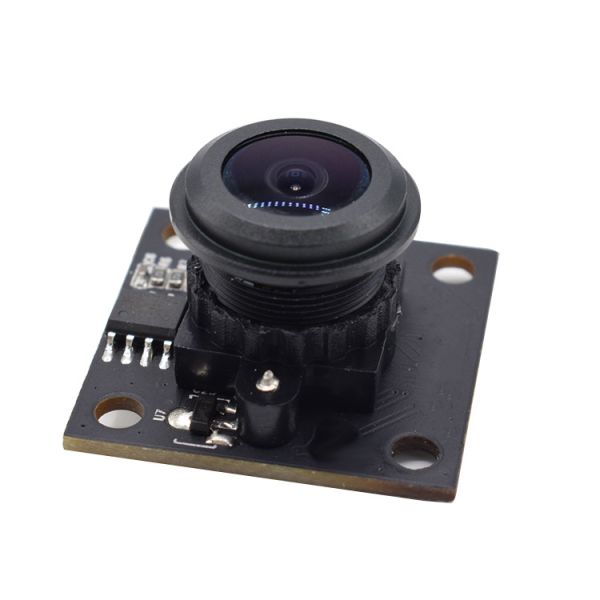

USB Auto Focus HD Camera Module with 150° Wide Angle
High-definition CMOS camera module featuring auto focus and ultra-wide 150-degree field of view, designed for industrial imaging applications.
Technical Specifications
Pixel Size 3.4μm × 3.4μm
Effective Pixels HD 648(H) × 488(V)
Image Sensor 1/6.5" CMOS
AEC/AWB/AGC Supported
Lens View FOV 150° (Optional), F/N (Optional)
Interface USB BUS POWER 5P-1.25mm
Operating Voltage DC 5V
Working Current 120mA ~ 220mA
Dimension 25 × 25mm
Cable Length 1m / 1.5m
Product Images
USB Auto Focus HD Camera Module with 150 Degree Wide Angle COMS Product Category Camera Modules USB Auto Focus HD Camera Module with 150 Degree Wide Angle COMS Product Category Camera Modules USB Auto Focus HD Camera Module with 150 Degree Wide Angle COMS Product Category Camera Modules
Company Profile
USB Auto Focus HD Camera Module with 150 Degree Wide Angle COMS Product Category Camera Modules
Shenzhen Sinoseen Technology Co., Ltd was established in March 2009. For decades, Sinoseen has been dedicated to providing customers with various OEM/ODM customized CMOS image processing solutions from design and development, manufacturing, to after-sales one-stop service. We are confident to offer customers with the most competitive price and quality. At present our products involve USB camera modules, mobile phone camera modules, notebook camera modules, security cameras, car cameras and smart home camera products. Any product related with camera module, we can find the best solution for you.
Application Areas
USB Auto Focus HD Camera Module with 150 Degree Wide Angle COMS Product Category Camera Modules
  • Imaging and vision solutions
  • Machine vision and intelligent systems
  • Future security and optical technology solutions
  • Camera module customized solutions
  • Internet of Things end-to-end solutions
  • Iris recognition and face recognition technology
  • VR high end camera solutions
  • Smart home and intelligent hardware solutions
  • Professional camera modules for small UAV
  • Drone solutions and aerial filming
  • Mobile phone camera modules and solutions
  • Optronics and imaging technology solutions
  • Infrared imagers for industry
  • Embedded systems solutions
Customization Process
USB Auto Focus HD Camera Module with 150 Degree Wide Angle COMS Product Category Camera Modules
Our customization process begins with understanding your specific application requirements. We analyze factors including product structure size, image definition, frame rate, lens angle, lighting conditions, and functional targets to recommend the optimal DSP chip, sensor, and lens combination.
Customization Example
For person identification systems: In well-lit indoor environments, we recommend standard lenses and sensors. For challenging lighting conditions or backlight situations, we suggest WDR wide dynamic sensors with distortion correction. For high-security requirements, we provide WDR with black and white infrared binocular recognition cameras. Final parameter adjustments for color, white balance, and saturation are tailored to your specific environment.
