Specifications
Model Number :
SNS-DZ1142-V1.0
Certification :
RoHS、ISO9001、CE
Price :
10-100USD or negotiable
Packaging Details :
Tray+Anti-static bag in carton box
Interface :
USB2.0
Brand Name :
Sinoseen
Supply Ability :
500000 pieces/month
MOQ :
3
Delivery Time :
2-3weeks
Lens FOV :
Optional 96° Wide-Angle Lens
Payment Terms :
T/T
Place of Origin :
China
Resolution :
1920*1080P
Shutter :
Rolling Shutter
Sensor :
IMX327
Description
IMX327 2MP 1080P 30FPS USB 2.0 Low Light Camera Module
Product Overview
The SNS-DZ1142-V1.0 is a 2MP USB 2.0 camera module built around the IMX327 1/2.8-inch CMOS image sensor. It delivers up to 1920 × 1080 resolution at 30FPS in MJPG mode. The 2.9μm pixel size supports clear imaging in low-light environments. With a compact 38 × 38 mm board, USB 2.0 interface and M12 lens configuration, the module is suitable for kiosks, scanners, access-control terminals and other embedded vision devices.
Key Features
  • 2MP Full HD output up to 1920 × 1080 at 30FPS
  • IMX327 1/2.8-inch CMOS image sensor
  • 2.9μm × 2.9μm pixel size for low-light imaging
  • USB 2.0 interface with MJPG and YUV output
  • Compact 38 × 38 mm board-level design
  • M12 lens with fixed-focus configuration
  • Optional 96° field of view
  • Cable, lens and connector customization available
IMX327 2MP 1080P 30FPS USB 2.0 Low Light Camera Module 38x38mm Board with Optional 96° Wide Angle Lens
Technical Specifications
Model SNS-DZ1142-V1.0 Sensor IMX327 CMOS
Optical Format 1/2.8 inch Interface USB2.0
Resolution 1920 × 1080, 2MP Pixel Size 2.9μm × 2.9μm
Lens FOV 96° (Optional) Focus Type Fixed Focus
Feature Low-Light Imaging Shutter Type Rolling Shutter
Video Output MJPG / YUV Board Size 38 × 38mm
IMX327 2MP 1080P 30FPS USB 2.0 Low Light Camera Module 38x38mm Board with Optional 96° Wide Angle Lens
Application Areas
  • Embedded vision systems and smart devices
  • Self-service kiosks and scanners
  • Access-control terminals
  • Industrial visual monitoring
  • Custom USB imaging products
IMX327 2MP 1080P 30FPS USB 2.0 Low Light Camera Module 38x38mm Board with Optional 96° Wide Angle Lens

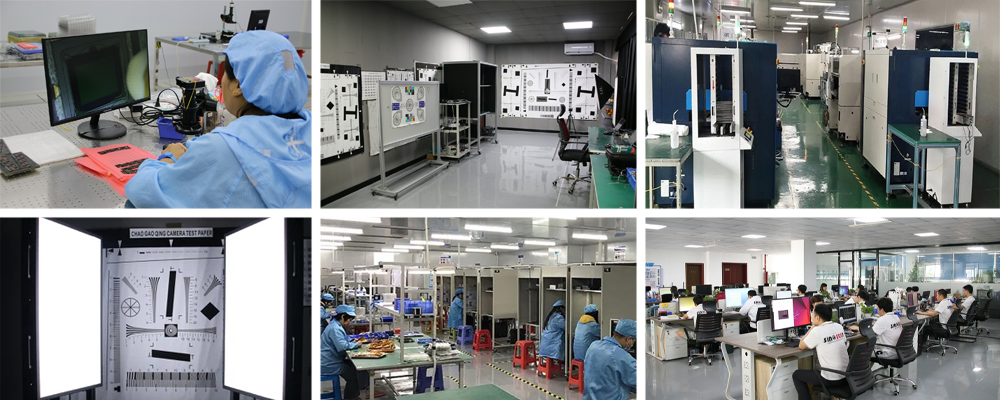

About Sinoseen
Sinoseen is a leading China camera module manufacturer with over ten years of expertise, supplying advanced vision solutions worldwide. We specialize in camera module distribution and customized development, supporting MIPI, DVP, and USB interfaces through complete OEM/ODM services. Our experienced technical and service teams provide one-stop solutions from concept to volume production.
IMX327 2MP 1080P 30FPS USB 2.0 Low Light Camera Module 38x38mm Board with Optional 96° Wide Angle Lens
Customization Process
  1. Requirement Definition - Specify lens, cable length, and synchronization needs
  2. Optical Design - Select M12, wide-angle, or NIR-pass optics
  3. Prototype Delivery - Functional samples in 10-14 days
  4. Validation - Timing, EMI, and thermal testing
  5. Mass Production - Full traceability and quality assurance
Compliance & Quality Assurance
All modules comply with RoHS, REACH, CE, and FCC standards. Our supply chain operates under ISO 9001 and IATF 16949 with diversified sensor sourcing and 12-month buffer stock to guarantee continuity.
IMX327 2MP 1080P 30FPS USB 2.0 Low Light Camera Module 38x38mm Board with Optional 96° Wide Angle Lens IMX327 2MP 1080P 30FPS USB 2.0 Low Light Camera Module 38x38mm Board with Optional 96° Wide Angle Lens
Frequently Asked Questions
What is the maximum resolution and frame rate?
The SNS-DZ1142-V1.0 supports up to 1920 × 1080 resolution at 30FPS in MJPG mode. Other supported resolutions include 1280 × 960, 1280 × 720, 1024 × 768, 800 × 600, 640 × 480 and 320 × 240.
What image sensor does this camera module use?
This USB camera module uses the IMX327 1/2.8-inch CMOS image sensor with a 2.9μm × 2.9μm pixel size. It is suitable for applications that require clear imaging in low-light environments.
Is the 96° wide-angle lens included?
The 96° field-of-view lens is an optional configuration. Other M12 lens options may be available based on the required field of view, working distance and installation space.
Does low light mean infrared night vision?
No. Low-light imaging and infrared night vision are different. The IMX327 sensor provides improved imaging under limited visible light, while complete darkness normally requires an IR-sensitive configuration and infrared LEDs. Please contact us if IR night vision is required.
What applications is this module suitable for?
The module can be used in embedded vision systems, self-service kiosks, scanners, access-control terminals, smart devices, industrial visual monitoring and other custom USB imaging products.
