T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm
T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm
T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm
T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm
Specifications
Brand Name :
OED/OEM
Model Number :
T38
Certification :
ISO 9001 2008
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Delivery Time :
20 days
Packaging Details :
Wooden Box
Color :
Yellow/Golden/Red/Black/Customized
Button Material :
Tungsten Carbide
Thread :
T38
Diameter :
64mm
Length :
130mm
Skirt Design :
Standard
Face Design :
Flat
Description

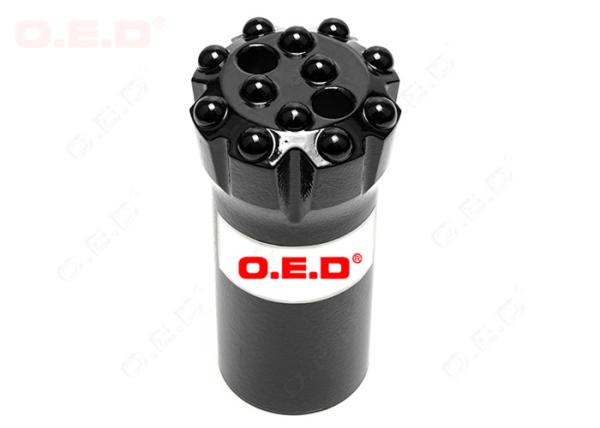

T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm

Rock drilling tools factory OED manufactures rock drill bits: T38 Threaded Button Bits is the most important size for
benching and long-hole drilling underground.
Code No.: Q12-64-T38
Diameter: 64mm
Length: 130mm
Gauge Buttons: 10mm*8
Front Buttons: 10mm*4
Skirt Design: Standard
Carbide Design: Dome
Face Design: Flat
Water Holes: 2 on front
Weight: 1.66kg

T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm

Diameter 64mm 76mm, 89mm,
Skirt body: retrac, and normal,
Face type: flat, uniface, drop center
Carbide shape: Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

12 Dome carbide inserts T38 threaded drill bits with flat face design, 64mm diameter and normal skirt body for bench
drilling and underground long hole drilling.

T38 Drill Bits for Bench Drilling Long Hole Drilling Underground Diameter 64mm

T38 Drill Bits for Bench Drilling, Long Hole Drilling Underground

Name Code No. Thread Diameter Gauge Front Skirt Design Weight

Threaded Button Bits

 Q9-57-T38 T38 57 6*10mm 3*10mm Standard 1.3 KGS
Q9-64-T38 T38 64 6*12mm 3*11mm Standard 1.7 KGS
Q9-64-T38-RC T38 64 6*12mm 3*11mm Retrac 1.8 KGS
Q9-70-T38 T38 70 6*12mm 3*11mm Standard 2.0 KGS
Q9-70-T38-RC T38 70 6*12mm 3*11mm Retrac 2.5 KGS
Q9-76-T38 T38 76 6*13mm 3*13mm Standard 2.4 KGS
Q9-76-T38-RC T38 76 6*13mm 3*13mm Retrac 2.5 KGS
Q9-89-T38 T38 89 6*14mm 3*13mm Standard 3.4 KGS
Q9-89-T38-RC T38 89 6*14mm 3*13mm Retrac 4.9 KGS
Q10-89-T38 T38 89 6*14mm 4*14mm Standard 3.3 KGS
Q10-89-T38-RC T38 89 6*14mm 4*14mm Retrac 3.0 KGS
Q12-64-T38 T38 64 8*10 mm 4*10mm Standard 1.6 KGS
Q12-64-T38-RC T38 64 8*10mm 4*10mm Retrac 1.8 KGS
Q12-89-T38 T38 89 8*11mm 4*11mm Standard 3.3 KGS
Q12-89-T38-RC T38 89 8*11mm 4*11mm Retrac 4.8 KGS
Q12-102-T38 T38 102 8*14mm 4*13mm Standard 4.6 KGS
Q12-102-T38-RC T38 102 8*14mm 4*13mm Retrac 6.7 KGS
Q13-76-T38 T38 76 8*11mm 5*11mm Standard 2.4 KGS
Q13-76-T38-RC T38 76 8*11mm 5*10 Retrac 2.9 KGS
Q14-76-T38 T38 76 8*11mm 6*11mm Standard 2.4 KGS
Q14-76-T38-RC T38 76 8*11mm 6*11mm Retrac 3.0 KGS
Q14-89-T38 T38 89 8*13mm 6*13mm Standard 3.3 KGS
Q14-89-T38-RC T38 89 8*13mm 6*13mm Retrac 5.5 KGS
Q14-102-T38 T38 102 8*14mm 6*14mm Standard 4.5 KGS
Q14-102-T38-RC T38 102 8*14mm 6*14mm Retrac 6.9 KGS
Q14-115-T38 T38 115 8*16mm 6*14mm Standard 5.3 KGS
Q17-89-T38 T38 89 9*11mm 8*10mm Standard 3.3 KGS
Q17-102-T38 T38 102 9*13mm 8*13mm Standard 4.4 KGS
Q18-115-T38 T38 115 9*14mm 9*13mm Standard 5.3 KGS

Cross Bits

 CB-64-T38 T38 64 12*20.6 Standard 1.7 KGS
CB-70-T38 T38 70 12.7*25 Standard 2.0 KGS
CB-76-T38 T38 76 12.7*25 Standard 2.4 KGS
CB-89-T89 T38 89 12.7*25 Standard 3.4 KGS
CB-102-T38 T38 102 16*25 Standard 4.6 KGS

Remarks: Other specifications are available according to customers' requirements
