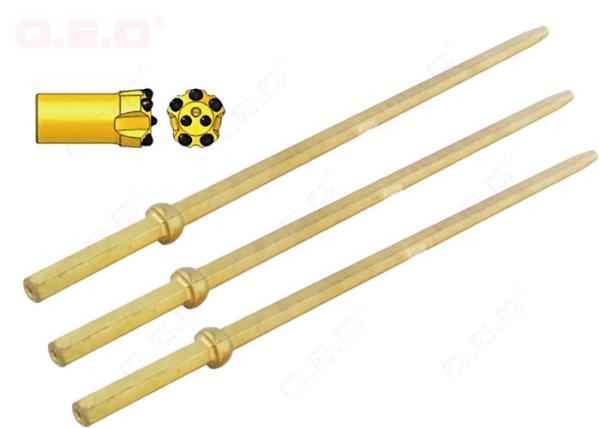

Granite Tools Tapered Drill Rod 7 Degree 12 Degree 1000mm Hex22 Long Lifespan
Granite Tools Tapered Drill Rod 7 Degree 12 Degree 1000mm Hex22 Long Lifespan
Granite Tools Tapered Drill Rod 7 Degree 12 Degree 1000mm Hex22 Long Lifespan
Granite Tools Tapered Drill Rod 7 Degree 12 Degree 1000mm Hex22 Long Lifespan
Specifications
Brand Name :
OED/OEM
Model Number :
Taper Angle: 4, 6, 7, 11, 12 degree
Certification :
ISO 9001 2008
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Delivery Time :
20 days
Packaging Details :
Wooden Box
Color :
Yellow/Golden/Red/Black/Customized
Material :
Steel
Description

Granite Tools Tapered Drill Rod 7 Degree 12 Degree 1000mm Hex22

Description

Tapered Drill Rods Are Used In Granite And Marble Quarry, Gold Mine, Railway, Tunnel, Etc. For Drilling

Product Name: Rock Drill Tapered Drill Rods
Types Tapered Drill Rods, Integral Drill Rods, Plug Hole Rods
Application Tapered Drill Rods Are Used In Granite And Marble Quarry, Gold Mine, Railway, Tunnel, Etc. For Drilling
Material: High Quality Carbide And High Quality Steel

Drill Rods Specifications Length(Mm/Inch) Betopper Part No.
Plug Hole Rods Chisel Bit Diameter-23mm 368mm 14.48'' Hex22-368-D23
Integral Drill Rods Bit Diameter-40mm 908mm 35.75'' Hex22*108-908-D40
Taper Drill Rod Taper Angle 7° 600mm 23.63'' T7-Hex22*108-600
800mm 31.50'' T7-Hex22*108-800
1000mm 39.37'' T7-Hex22*108-1000
1200mm 47.24'' T7-Hex22*108-1200
1500mm 59.06'' T7-Hex22*108-1500
1600mm 62.99'' T7-Hex22*108-1600
2000mm 78.74'' T7-Hex22*108-2000
3000mm 118.11'' T7-Hex22*108-3000
5000mm 198.85'' T7-Hex22*108-5000
Taper Angle 12° 1900mm 74.80'' T12-Hex22*108-1900
2000mm 78.74'' T12-Hex22*108-2000
3600mm 141.73'' T12-Hex22*108-3000

Tapered Drill Equipment Also Provides A Hexagonal Chuck Section To Provide Leverage For The Rotation Chuck Bushing, Which Usually Also Has A Forged Collar To Maintain The Proper Shank Striking Face Position In The Rock Drill, And Match A Tapered Bit At The Socket End. Holes Are Typically Drilled In 0.6 M Increments To Accommodate The Air-Leg Feed Length.

Granite Tools Tapered Drill Rod 7 Degree 12 Degree 1000mm Hex22 Long Lifespan
