Product Overview

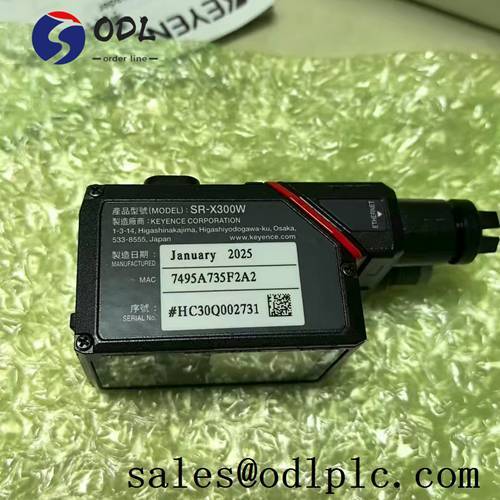

The SR-X300W Keyence AI-Powered Code Reader is a cutting-edge solution designed to streamline barcode and QR code reading in industrial and manufacturing environments. Equipped with a high-resolution 2.3-megapixel CMOS image sensor and advanced AI technology, this wide-field type code reader delivers superior accuracy and reliability.

Technical Specifications

Manufacturer : Keyence

Part Number : SR-X300W

Type : Wide-field type (2.3 megapixels)

Sensor : CMOS image sensor

Number of pixels : 1920 × 1200

Focus : Auto

Illumination light source : High-intensity red/white LED

Pointer light source : High-intensity green LED

Minimum resolution : 2D codes : 0.060 mm | Barcodes : 0.082 mm

Reading distance : 50 to 1000 mm

Reading field of view : 267 × 166 mm

I/O specifications :

Control input : Number of inputs : 2 | Input type : Photo MOS relay output | Maximum rating : 30 VDC | Minimum ON voltage : 15 VDC | Maximum OFF current : 0.2 mA

Control output : Number of outputs : 3 | Output type : Bidirectional voltage input | Maximum rating : 30 VDC | Maximum load current : 50 mA or less for 1 output, or 100 mA or less in total for 3 outputs | Leakage current when OFF : 0.1 mA or less | Residual voltage when ON : 1 V or less

USB : Communication standard : USB 2.0 High Speed compliant

Ratings :

Power voltage : 24 VDC +25%/-20%

Current consumption : Approx. 750 mA

Environmental resistance :

Enclosure rating : IP65/IP67 (IEC60529)

Ambient temperature : 0 to +45°C

Storage temperature : -10 to +50°C

Relative humidity/Storage relative humidity : 35 to 85% RH (No condensation)

Weight : Approx. 200 g
