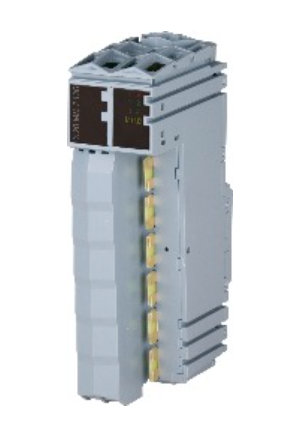

X20 MM 2436 B & R Automated X20 Mm 2436 2ch PWM motor module
X20 MM 2436 B & R Automated X20 Mm 2436 2ch PWM motor module
Specifications
Brand Name :
B & R PLC
Model Number :
X20 MM 2436
Certification :
CE
Place of Origin :
Austria
MOQ :
1
Price :
$89-899
Payment Terms :
T/T
Supply Ability :
99
Delivery Time :
3-5days
Packaging Details :
2.5 cm x 10.2 cm x 5.8 cm
Leading Time :
in stock
Warranty :
1 year
Weight :
0.01kg
Delivery time :
3-5days
Quality :
Brand new & Original
Shipping term :
DHL FEDEX UPS TNT
Description

Product Overview:


The motor bridge module is used to control 2 DC motors with a nominal voltage of 24 to 39 VDC ± 25% and a nominal current of up to 3 a. This module can be reconfigured and used in current controller mode to control inductive loads. This module is also equipped with 4 digital inputs, which can be used as incremental counters. Each motor is controlled by a full bridge (H-bridge). This allows the motor to move in two directions.


Technical specifications:


  • 2x output (H-bridge) with PWM control and 24 to 39 VDC ± 25% power supply
  • 3 A nominal current (maximum current 3.5 A)
  • 15Hz to 50kHz frequency, 16 bits
  • Frequency mode with a resolution of 10 to 6553.5 Hz or 1 to 655.35 Hz.
  • PWM resolution, 15 bits+symbol, minimum 10ns
  • Configurable jitter
  • 2x 2 24V inputs, configurable as AB
  • Sink connection
  • Single wire connection


X20 MM 2436 B & R Automated X20 Mm 2436 2ch PWM motor module


Our Services:


1, All our products are new and original, and of good quality.

2, Our prices are very competitive.

3, We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4, All inquiries will be valued and will reply in 24 hours.

5, Fast shipping, and good after-sale service

6, We will ship the items within 1-3 working days after the payment is received.

7, Good package to protect the products.
