Product Overview:

The module is equipped with 16 inputs for 1-wire connections. The module is designed for sink input wiring.

Technical specifications:

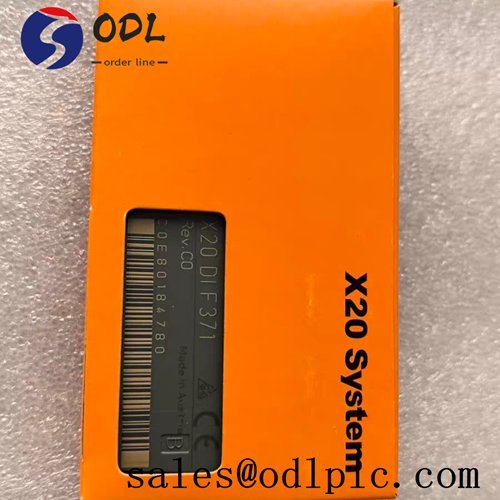

Manufacturer : B&R

MATERIAL NUMBER: X20DIF371

16 digital inputs

Source circuit

1-wire connections

Configurable software input filter for entire module

The module is equipped with 16 inputs for 1-wire connections. The module is designed for sink input wiring.

I/O module : 16 digital inputs 24 VDC for 1-wire connections

B&R ID code : 0xC0E8

Status indicators : I/O function per channel, operating state, module status

Module run/error : Yes, using LED status indicator and software

Bus : 0.18 W

Internal I/O : 1.47 W

Additional power dissipation caused by actuators (resistive) [W] : -

Horizontal : Yes

Vertical : Yes

Installation elevation above sea level : 0 to 2000 m : No limitation

Installation elevation above sea level : >2000 m : Reduction of ambient temperature by 0.5°C per 100 m

Degree of protection per EN 60529 : IP20

Horizontal mounting orientation : -25 to 60°C

Vertical mounting orientation : -25 to 50°C

Derating : See section "Derating".

Storage : -40 to 85°C

Transport : -40 to 85°C

Relative humidity Operation,Storage & Transport : 5 to 95%, non-condensing

Note : Order 1x terminal block X20TB1F separately. Order 1x bus module X20BM11 separately.

Pitch : 12.5+0.2mm
