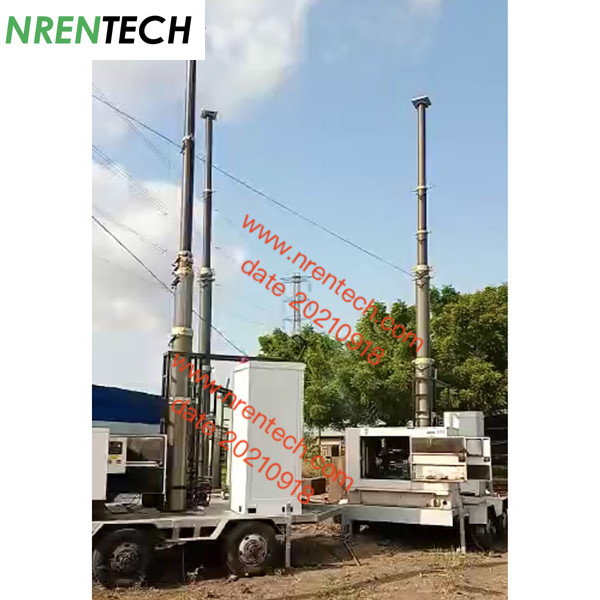

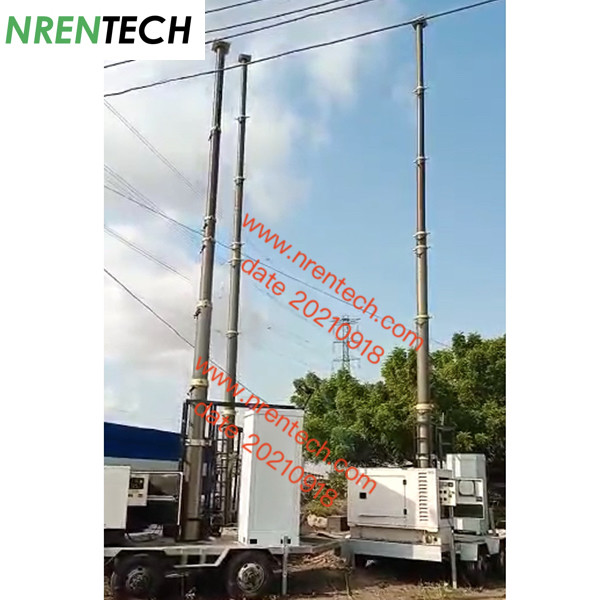

15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
Specifications
Brand Name :
NRENTECH
Model Number :
NR-3.3-15-350L-7S-160-316
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD 15000/unit FOB Shanghai
Payment Terms :
T/T, Western Union
Supply Ability :
200 units/month
Delivery Time :
30 working days
Packaging Details :
wooden box.
extended height :
15m
retracted height :
3.3m
payloads :
350kg
working air pressure :
0.2Mpa/29PSI
working temperature :
-15~85℃
collar style :
locking collar
number of sections :
7 sections
section dia. :
160mm~316mm
default accessories :
1x top flange, 1xbottom flange, 1x air hose pipe
optional accessories :
side mounting brackets, guying lines, electric air compressor
unit weight :
330kg approx.
guarantee :
5 years
wind load :
144km/h
Description

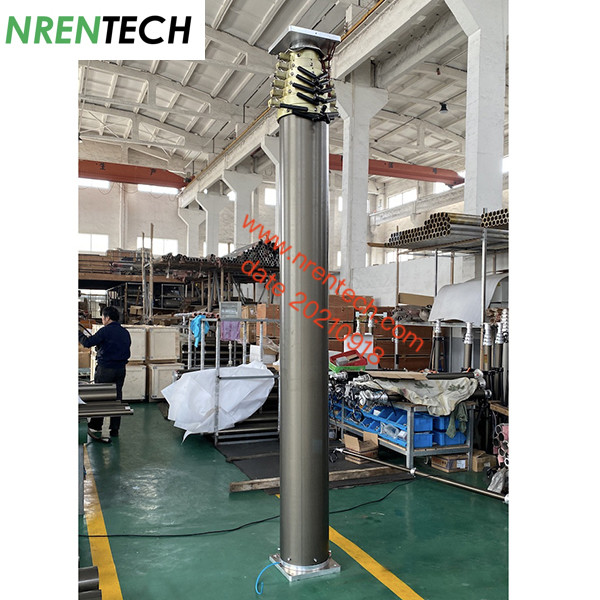

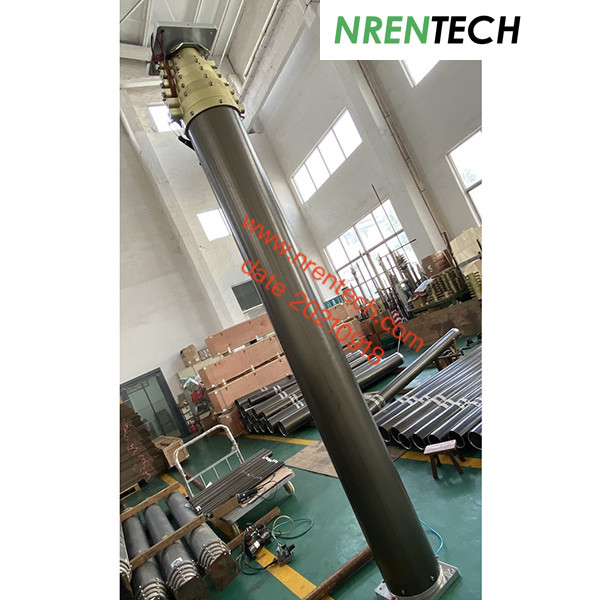

15m Locking Mast-350kg Payload-3.3m Retract NR-3.3-15-350L-160-316

15m Locking Pneumatic Telescopic Mast-350kg Payload 3.3m Retracted Height

Item #: NR-3.3-15-350L-160-316
1> Extended Height: 15m
2> Retracted Height: 3.3m
3> Vertical Payloads: 350kg @ 0.25Mpa/36PSI
4> Collar Type: Lockable (automatic extension, manual operating retraction, suitable for long time deployment weekly, monthly or yearly)
5> Rated Working Air Pressure: 0.25Mpa/29PSI
6> Number of Sections: 7 pcs
7> Sections Diameter Range: 160mm~316mm
8> Material: Aluminum alloy 6063T5, hard anodizing treatment
9> Default Accessories:1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, 1x manual operation tool, guy lines mounting plate and eyebolts.
10> Mast weight: 353kg approx.
11> Wind Load: 144 KMH
12> Working Temerature: -25°C~65°C

Optional Accessories:
1> Electric air compressor 3000W, AC220V/50hz
2> Guy lines kit: 3 layers, 4 lines each layer, 4 mounting stakes, mounting radius 15m
3> Side Mounting Bracket NR-S316, iron materials, 30kg approx.
4> Ground mounting quadpod bracket NR-QUADPOD316
5> Remote control kit
6> Manual Rotation Basement

Manufacturing Lead Time: 30 days

Shipping Lead Time(Port to Port): As arranged

Transport Packaging: Seaworthy & Airworthy Packing, Multi-layer Plywood Case (Fumigation-free).

Product Warranty: 2 years

Product data updated as of 20260531.

Product information is subject to change without notice.

15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height

15m Lockable Pneumatic Telescopic Mast-350kg Payload
NR-3.3-15-350L-7S-160-316
15m telescoping mast 350kg payloads for integrated telecom tower trailer 3.3m closed height
Extended Height : 15 m 49.2 ft 　
Retracted Height : 3.3 m 10.8 ft 　
Vertical Payload : 350 kg 770 lb 　
Working air pressure : 0.25 Mpa 37 PSI 　
Collar Type : Locking (Automatic Extension, Manual Retraction)
Inside Electric Wires : 　 　 　 　
Number of sections : 7 　 　 　 　
Top section diameter : 160 mm 6.3 in 　
Basement section diameter : 316 mm 12.4 in 　
Mast Weight : 323 kg 710.6 lb 　
Working temperature : -25~65 Celsius Degree
Materials : Aluminum alloy 6063T5
Default accessories : top flange
bottom flange
air hose pipe
air control manual
Retraction operation tool
Wind Load : 144kmh
Optional Accessories : Electric air compressor AC220V/50hz, 3000W
Guy Rope Kits 3x4 (3 layers, 4 ropes each layer, 4 mounting stakes, mounting radius 15m)
Side Mounting Bracket Steel Materials, 30kg approx.
Ground mounting Quadpod Stainless Material
Rotation Basement
Remote control kit AC220V/50Hz
data update on 20260208
