Specifications
Brand Name :
nrentech
Model Number :
NR-3300-15000-300L
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD 10000 per unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
15 working days
Packaging Details :
shipping crate box 350cmL x 45cmW x 55cmH, 350kg approx.
Extended Height :
15m
Retracted Height :
3.3m
Payloads :
300kg
Sections :
7sections (140mm~279mm)
Materials :
aluminum alloy 6063
mast weight :
250kg approx.
guying ropes :
3 layers and 4 directions
wind speed :
max 150km/h (according to project)
working temperature :
-20~85C
Working air pressure :
0.2Mpa/29PSI
Packing :
wooden box
Shipping weight :
350kg approx.
Description

15m pneumatic telescopic mast 300kg payloads NR-3300-15000-300L for mobile telecommunication tower

15m Pneumatic Telescopic Mast 300kg payloads NR-3.3-15-300L-7S-140-279

15m Pneumatic Telescopic Mast-300kg payloads
Item #: NR-3.3-15-300L-7S-140-279
1> Extend height: 15m
2> Retract height: 3.3m
3> Vertical Payloads: 300kg @0.2Mpa/29PSI
4> Collar type: Manual Locking collar (automatic extension, manual retraction)
5> Number of sections: 7 sections/ section dia. 140mm~279mm
6> Material: aluminum alloy 6063T5
7> Net Weight: 280kg approx.

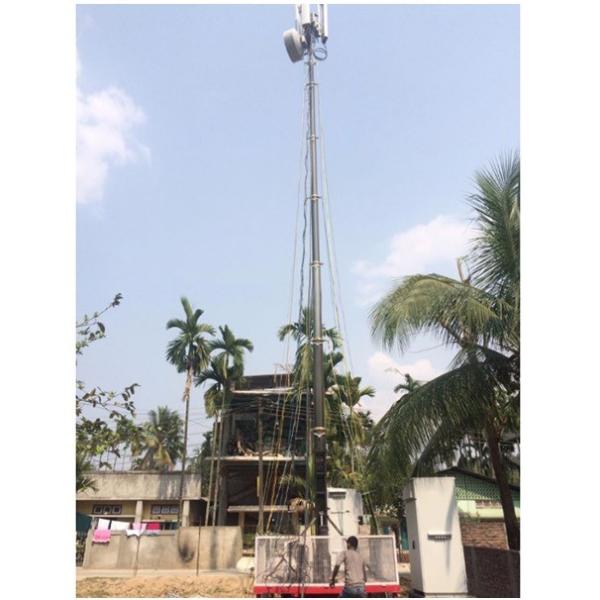

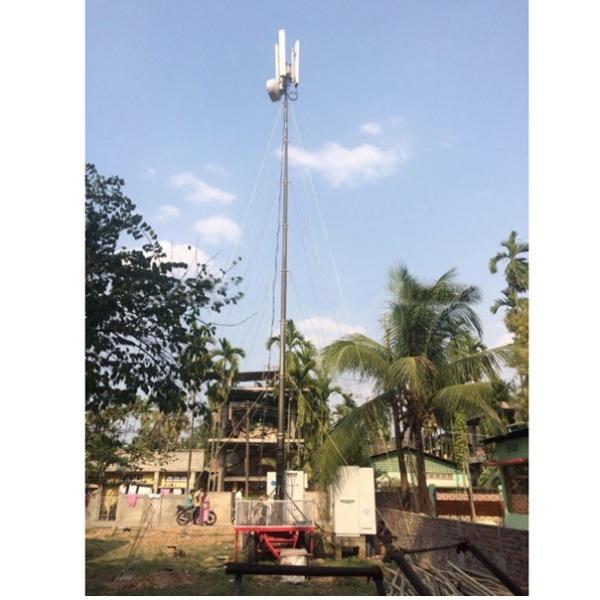

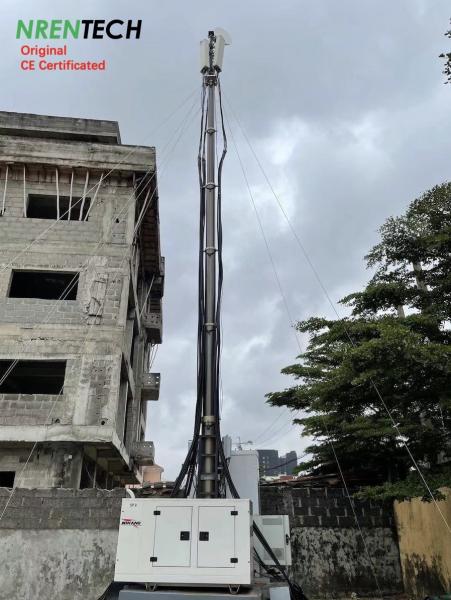

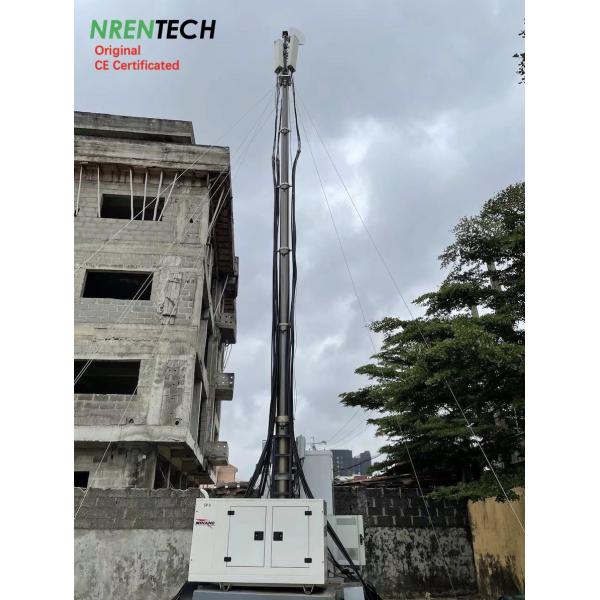

mast application for mobile telecommunication vehicle
Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual, 1x manual operation tool
Optional accessoires:
Vehicle side mounting brackets
AC220V/50Hz electric air compressor
Ground mounting tripods or quadpod
Wireless remote control
120km/h wind speed guying ropes mounting kits (3 layers x 4 directions, mounting radius 15m)

Leading time: within 20 days

15m Lockable Pneumatic Telescopic Mast-300kg Payloads
1> Item #: 　NR-3.3-15-300L-7S-140-279
2> Extended Height: 　15m
3> Retracted Height: 　3.3m
4> Maximum Payloads: 　300kg
5> Type: T-Lockable, Anti-rotation
6> Inside Electric Wires 　Non
7> Number of Sections: 　7
8> Sections’ diameter*Thickness: 　140*5mm, 160*5mm, 180*5mm, 202*6mm, 227*6mm, 252*6mm, 279*7mm
9> Materials: Aluminum Alloy, Stainless steel fasteners
10> Working Air Pressure: 0.2Mpa/29PSI
11> Working Temperature: -25~55 Degrees Celsius
12> Mast Weight: 　280kg
13> Wind Loads: 　120km/h (3x4 guide ropes)
14> Default accessories: 1x top flange
1x bottom flange
1x air hose pipe
1x air controller
15> Optional Accessories: Ground Mounting Tripods/quadpod
Guying Rope Kits with Mounting Spikes
AC220V/50Hz Electric Air Compressor
Vehicle Side Mounting Bracket
Remote Controller Kit
