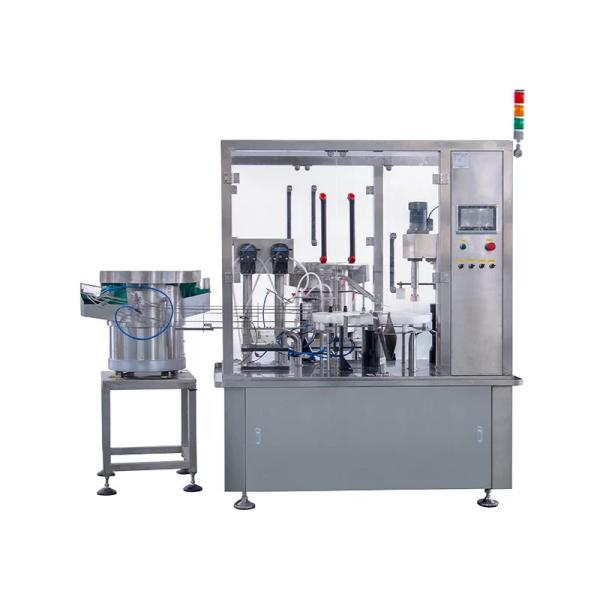

Automatic CBD Oil Liquid Filling Machine

The CBD oil liquid filling machine is designed for a variety of liquid products used in food, cosmetics, personal care, essential oils, and flavor industries. This compact monoblock system integrates filling, screw capping, and labeling functions, supporting bottle sizes from 5mL to 500mL with high accuracy and efficiency.

Equipped with a peristaltic pump system, the machine enables fast product changeovers without complex cleaning. It can also be configured with piston or flow meter filling systems to suit different liquid viscosities.

The complete line supports up to two labels and reaches speeds of up to 60 bottles per minute. Featuring an intuitive touchscreen control system with recipe storage, the machine ensures easy operation and flexible adjustment for various liquid packaging applications.

Feature

1. The manipulator fine-tunes the nozzles to optimize the feeding stoppers rate when utilizing narrow-edge nozzles.
2. Peristaltic pump filling, managed by a single-chip system, guarantees exceptional dosage precision, facilitating dosage adjustments without interrupting machine operation.
3. This monoblock machine is designed for filling, feeding stoppers, and capping, prioritizing space efficiency and featuring a straightforward structure. It presents an elegant appearance and facilitates easy cleaning.
4. Accurate graduator positioning ensures steady operation, enabling the filling of bottles of varying sizes.
5. Equipped with a touch panel control interface for effortless operation and elevated automation levels. Speed adjustments can be made using an inverter.
6. Automatic halting in the absence of bottles or caps prevents any filling or capping processes from taking place.

Parameter

Operation Process:

1. Material Preparation: Ensure an ample supply of bottles, plugs, covers, and liquid medicine. Vibrating hoppers maintain a continuous supply of plugs and covers, positioned both inside and outside the designated cover locations.

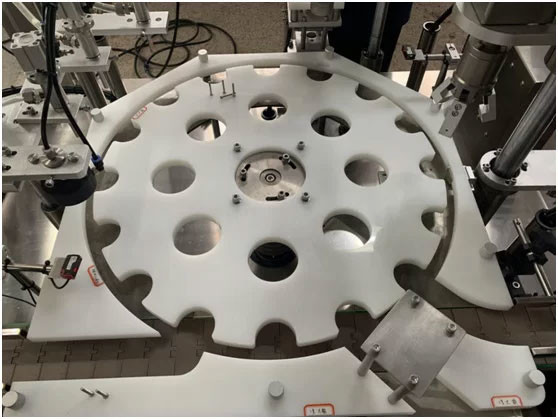

2. Bottle Feeding: Bottles are organized and directed by the bottle feeder turntable.

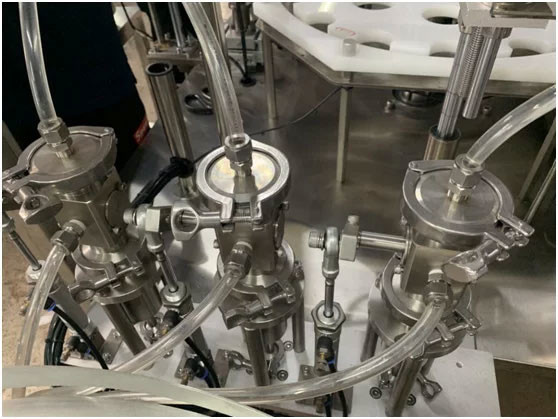

3. Filling: Bottles are carefully positioned for filling through oscillation, followed by intermittent drive for filling, stoppering, covering, and screw capping. Liquid filling is accomplished using a peristaltic pump and an automatically moving needle that precisely fills the liquid in the bottle.

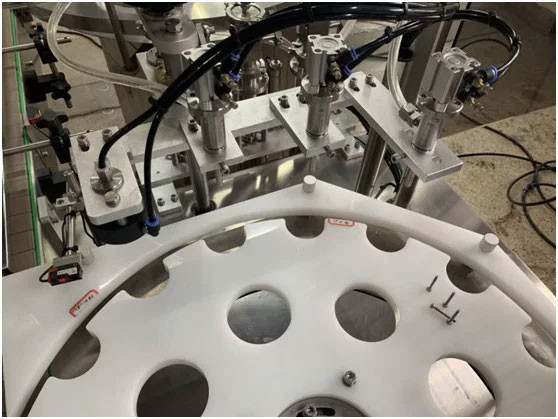

4. Plugging: Plugs are delivered from a vibrating hopper to the stoppering station, where bottles are guided by wheel clearance. Optical fiber detection regulates the stoppering cylinder solenoid valve, ensuring proper stoppering.

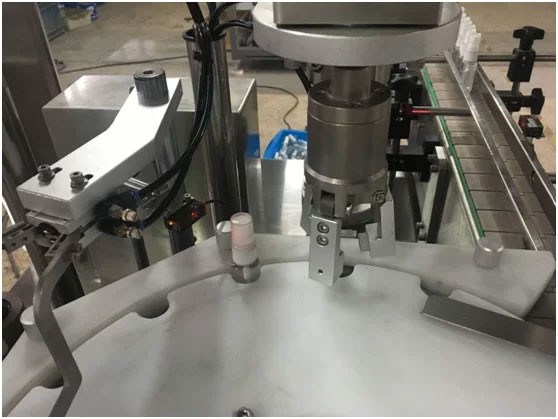

5. Capping: Bottles with inserted plugs proceed to the capping station, where screw caps are applied using a cylinder-based mechanism. The screw caps are rotated and lowered until securely fastened, with torque adjustments made for optimal tightness.

6. Bottle Egress: Capped bottles are conveyed away from the machine via the conveyor belt, prepared for subsequent packaging procedures.

If you are interested in automatic cbd oil liquid filling machine, please contact us
