Specifications
Model NO. :
50*35/70*35/73*36mm
Specification :
D60, D60, 50*35/70*35/73*36mm
Shape :
U-type, U-Type
Usage :
Office Building, Hotel, Office Building
Function :
Fireproofing, Anti-Corrosion
Material :
Steel, Steel
After-Sales Service :
["Replace","Replace"]
Type :
Cold Bending Inner Edge Channel
Perforated :
Not Perforated
Width :
52mm/72mm/75mm/100mm/148mm
Height :
25mm/29mm/32mm/40mm
Thickness :
0.40 to 1.0mm
Standard Length :
3000mm
Transport Package :
by Cartons
Trademark :
NOYA
Origin :
China
HS Code :
39269090
Supply Ability :
1000 Ton/Tons Per Month
Place of Origin :
China
MOQ :
one pallet
Delivery Time :
10 days after receive the downpay
Payment Terms :
T/T, LC, west union, paypal. DP
Description
Product Description

Material: Galvanized Steel
Application: Dry wall Partition and Suspension System
We can produce all size according clients requirement.

Advantage:
Excellent fire resistive ability. Suit residuals and public places.
Fast installation. Easy to control the construction progress
Combinative construction. Easy to keep work places clean.
Good vibration absorbing ability. Suit buildings on seismic belt.
Fast reconstruction for easy assembling and dismantling.
Filling acoustic insulation can enhance the sound-proof ability.
Surface of the walls are smooth. Easy to paint or paste wallpaper.
Electric wires are hidden in the wall
It is easy to drill through the wall for construction.
It could be applied under the original ceiling

Products name Interior Wall Partition and Suspended Ceiling Metal Steel Profile
Products Design Design personalization, according to customers drawings or photos.
Services We can supply comprehensive service for you with professional production, sales, shipping and after-service team.

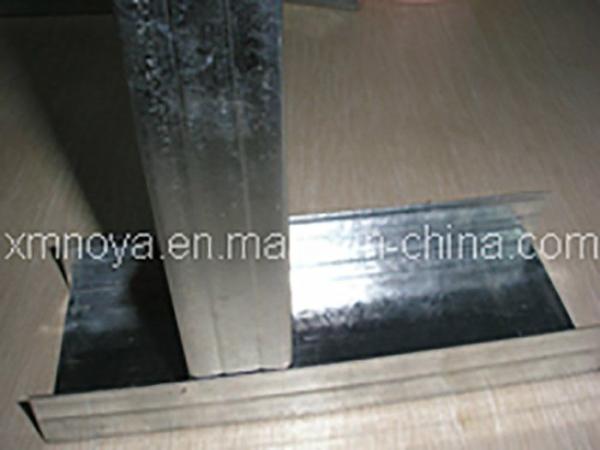

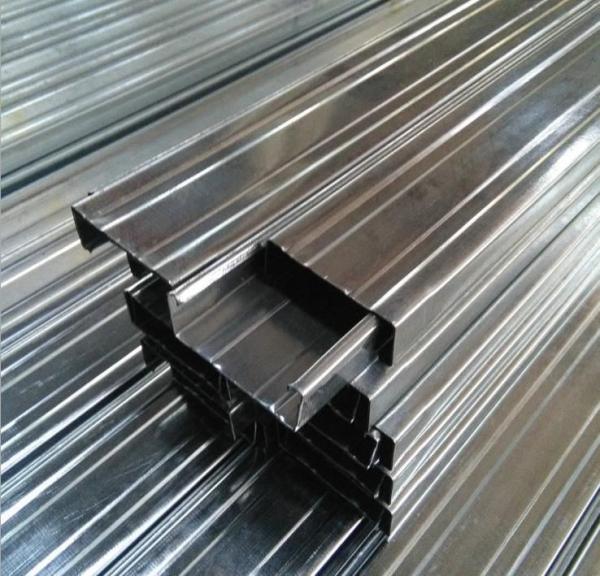

Detailed Photos
52mm/72mm/75mm/100mm/148mm Office Building Light Steel U Channel for Wall Partition
52mm/72mm/75mm/100mm/148mm Office Building Light Steel U Channel for Wall Partition

Product Parameters

Specification:
TRACK:
Width: 52mm/72mm/75mm/100mm/148mm
Height: 25mm/29mm/32mm/40mm
Thickness: 0.40 to 1.0mm
Standard length: 3000mm

Stud:
Width: 50mm/70mm/73mm/98mm/146mm
Height: 32mm/34.5mm/36mm
Thickness: 0.40 to 1.0mm

52mm/72mm/75mm/100mm/148mm Office Building Light Steel U Channel for Wall Partition
52mm/72mm/75mm/100mm/148mm Office Building Light Steel U Channel for Wall Partition




Standard length: 3000mm

Omega(Furring channel): 35*22mm / 45*22mm / 35*16mm
Wall Angle: 20*20mm/22*22mm/25*25mm
Main Channel: 38*11mm/50*15mm/60*27mm
CD & UD SYSTEM C&D 60*27, 27* 28mm

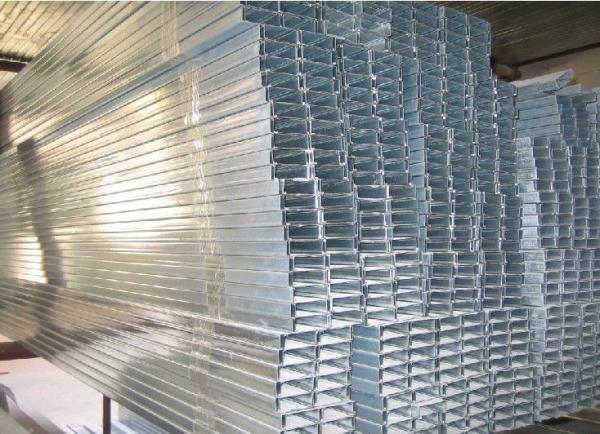

Packaging & Shipping
