Full Automatic Vertical Snack Food Packaging Machine For Photo Clips / Peanuts
Full Automatic Vertical Snack Food Packaging Machine For Photo Clips / Peanuts
Full Automatic Vertical Snack Food Packaging Machine For Photo Clips / Peanuts
Full Automatic Vertical Snack Food Packaging Machine For Photo Clips / Peanuts
Specifications
Brand Name :
HKJ
Model Number :
BJLA420/10 NP
Certification :
ISO90001-2000
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
20 SETS/MONTH
Delivery Time :
20 WORKS DAYS
Packaging Details :
Standard exporting wooden case
Motor :
3 servo motror
Materials :
304 stainless steel
Screen :
Touch screen
Power :
AC220V/50-60HZ/2.2 KW
Max Film width :
420mm
Power of the Horizontal-seal heaters :
800W/220V
Description

High Quality Multi Weigher Vertical Packing Machine for Snack Food

Application:

Automatically finish the process of weighting, feeding and sealing for snack food, such as:Photo clips,Pasta,Peanuts,Nuts,Candy,etc.

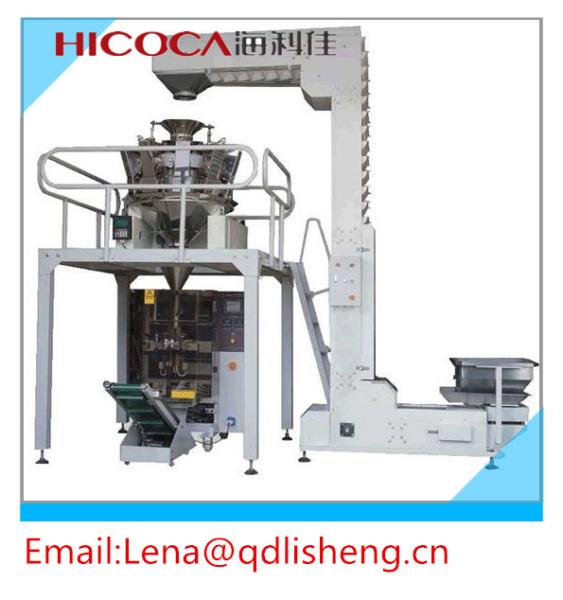

Contains:

1 CH-220 Host or CH200 host

2 Ten-head computer combination scales

3 Z-type conveyor

4 Vibration-actuated feeder

5 Support platform

6 Product conveyor

Specification:

Voltage/Power AC220V/50-60HZ/2.2kw
Power of Vertical-seal heater 500W/220V
Power of the Horizontal-seal heater 800W/220V
Packing Material OPP/CPP,CPP/PEMST/PE,PET/PE
Thickness of the film 0.05-0.08mm
Max Width of the film 420mm
Max Dimensions of the bag 300mm*200mm
Packing Rate 50-60 bags/min
Weight 600 KGS
Air Pressure 6.5 mpa
Air Consumption 600L/min
Dimensions 4800*800*1500mm

Main clectric parts brand list

A, Packing machine

1 Touch screen Weinview (Taiwan)
2 Servo motor Mitsubish(Japan)
3 Servo amplifier Mitsubish(Japan)
4 PLC Mitsubish(Japan)
5 Solid state relay CHINT( China)
6 Air switch Fuji(Japan)
7 Kubler system for electricity transmission Mercotac( USA)

B,Trimming and feeding coveyor

1 Servo drive Mitsubish(Japan)
2 Servo motor Mitsubish(Japan)
3 Photo sensor Autonics( Korea)

Full Automatic Vertical Snack Food Packaging Machine For Photo Clips / Peanuts

Full Automatic Vertical Snack Food Packaging Machine For Photo Clips / Peanuts

Full Automatic Vertical Snack Food Packaging Machine For Photo Clips / Peanuts

Remark:

1, Package: Standard export wooden case

2, Delivery time: 40 days from receive advance payment

3, We will supply full set of spare parts and tooling when machine shipping

4, Warranty: 1 year, after one year, we will supply technical service
