Customized Stainless Steel Screws And Bolts , Precision Mould Making Use Fasteners
Customized Stainless Steel Screws And Bolts , Precision Mould Making Use Fasteners
Customized Stainless Steel Screws And Bolts , Precision Mould Making Use Fasteners
Customized Stainless Steel Screws And Bolts , Precision Mould Making Use Fasteners
Specifications
Brand Name :
JESENTECH
Model Number :
Non standard customization
Certification :
IATF 16949:2016
Place of Origin :
Shenzhen CHINA
MOQ :
1-10pieces
Price :
Negotiated price
Payment Terms :
T/T, L/C, MoneyGram, Western Union,Paypal
Supply Ability :
3500000 Pieces/month
Delivery Time :
3-5 days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Material :
Stainless Steel/Carbon Steel/Aluminum alloy/Brass/Copper or customized
Tolerance :
+/-0.003mm
Standard :
GB/ANSI/DIN/ISO/JIS
Size :
According to customer's requirements
Finish :
Black Oxide/Nickel Plated/Plain or customized
Production technics :
Automatic lathe/CNC lathe machine
Certificate :
IATF16949:2016 / ROHS
Grade :
4.8/ 8.8/ 10.9/ 12.9 etc
Application :
automation equipment
Description

Professional supply customized stainless steel Fasteners Screws and bolts for precision mould making

Product introduction:

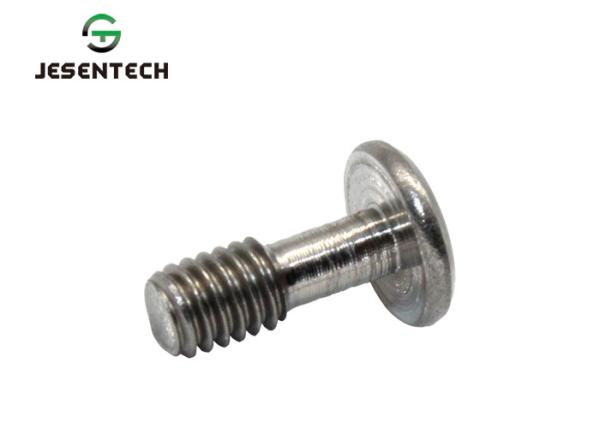

The plug screw is also called the shoulder screw, the stop screw, the stop bolt, the brake bolt, etc.; the plug screw is used together with the bolt pull rod, mainly for controlling the fixed mold seat plate in the three-plate mold, the flow channel push plate Mold fittings for the mold opening stroke between the die and the die. Since it can be set to the parting surface of the mold, the mold design can be miniaturized.

These products have high hardness, good toughness, excellent wear resistance and heat resistance. They are suitable for precision molds and can significantly improve their service life. Especially the hot shape of precision molds has become effective control, suitable for high temperature working environment. Mold. The plug screw constitutes the attribute material: SCM435, hardness: 33 ~ 38HRC.

Item No Material Surface treatment
LGBS SUS303

/

Customized Stainless Steel Screws And Bolts , Precision Mould Making Use Fasteners

Format H L Choice A F B d
Item No. M*P
LGBS 2*0.4 2.5 4,6,8,10 3.8 2 1.5 1.5
3*0.5 4 8,10,12,15 5.5 3 2.5 2.2
4*0.7 3 8,10,12,15 7 4 3 3
5 10,12,15,20
5*0.8 3 10,12,15,20 8.5 5 4 3.9
6 12,15,20
6*1.0 4 12,15,20 10 6 5 4.5
8 12,15,20,25,30
8*1.25 10 20,25,30,40 13 8 6 6.3

Customized Stainless Steel Screws And Bolts , Precision Mould Making Use Fasteners
