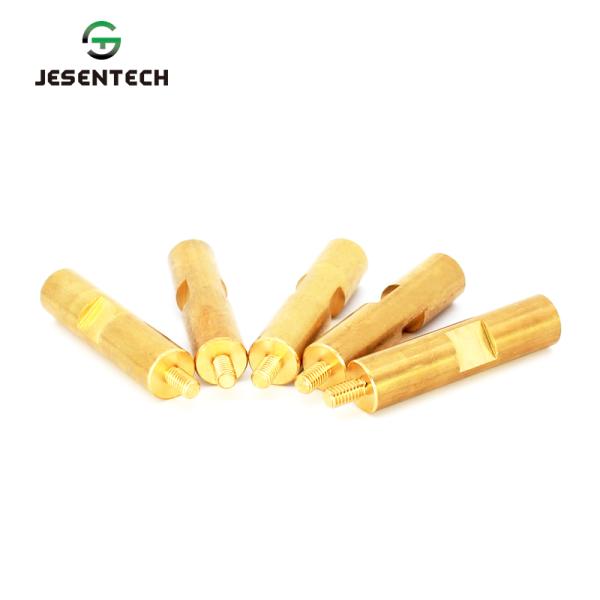

Custom Made Brass Linear Motion Shaft Wrench Groove Type For 3D Printer
Custom Made Brass Linear Motion Shaft Wrench Groove Type For 3D Printer
Custom Made Brass Linear Motion Shaft Wrench Groove Type For 3D Printer
Custom Made Brass Linear Motion Shaft Wrench Groove Type For 3D Printer
Specifications
Brand Name :
JESENTECH
Model Number :
Non standard customization
Certification :
IATF 16949:2016
Place of Origin :
Shenzhen CHINA
MOQ :
1-5 pieces
Price :
Negotiated price
Payment Terms :
T/T, L/C, Western Union,Paypal etc.
Supply Ability :
4200000 pieces/Month
Delivery Time :
3-5 days
Packaging Details :
General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)
Material :
Brass / Copper or customized
Surface treatment :
Zn- Plated,Ni-plated,passivated,Tin-Plated or As your request
Certifications :
IATF16949:2016
QC Control :
100% inspection on critical dimension
Size :
As per Customer's request
MOQ :
1-5 Pieces
Lead time :
3-7 days or according to quantity
Tolerance :
±0.003mm or customized
Hardness :
customized
Description

Small tolerance of custom made brass material Linear motion Shafts with wrench groove type for 3D printing device

Linear motion mechanism using a guide shaft:
The rod-shaped guide shaft adopts a simple shape that is the easiest to achieve the outer diameter precision in machining, and is often used for the guidance of high-precision linear motion. The guide shaft has the following features.
1. there are "g6" and "f8" two kinds of tolerance products are available, the former is suitable for the mechanism that requires almost no clearance precision movement, the latter is suitable for grease lubrication or oil lubrication bearings.
2. In order to improve the surface hardness of the shaft portion, high frequency quenching and hard chrome plating treatment are employed.
3. It can ensure the roundness, straightness of the shaft, and the coaxiality and perpendicularity with the shape of the end face.
4. Depending on the installation method, the guide shafts for different shaft ends can be selected.

One end of the thread. One end internal thread with wrench grooves
TypeMaterialHardnessSurface Treatment
Wrench groove type
PWPCRSUS440C
SUS440C high-frequency quenching 53HRC~~		/
PWPCRGSUS440Chard chrome plating
Coating hardness HV750~
Coating thickness Above 3μm

Custom Made Brass Linear Motion Shaft Wrench Groove Type For 3D Printer

TypeD(g6)L Designated unit 1mm
Wrench groove typeLFB
PWPCR
PWPCRG		6-0.004
-0.012		25~5982≤F≤Px5(When P≤6)
B≤F-2
(When P=8 Or 10)
B≤F-3
(When P≥12)
B≤F-5
(Without thread)
B=0
B≥Thread pitch x3
8-0.005
-0.014		25~798
10
12-0.006
-0.017		25~998
13
15
1625~1198
20-0.007
-0.020

M(Coarse thread)N(Coarse thread)Wrench slot sizeRC(Y)
Max.
BSWe1
3,4,5,63

BS=Designated unit 1mm
BS+e1≤L
BS≥0

580.30.5600
3,4,5,6,83,4,57800
4,5,6,8,103,4,5,68800
5,6,8,10,124,5,6,810101000
5,6,8,10,124,5,6,8111000
5,6,8,10,124,5,6,8,10131000
5,6,8,10,12,164,5,6,8,10141.01200
6,8,10,12,16,204,5,6,8,10,12171200
