TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
TZM / MoLa Material Molybdenum Products Rod M5 M8 M10 M12 With Thread
Specifications
Model Number :
Molybdenum Rod With Thread
MOQ :
Negotiate
Price :
Negitionable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000sets/month
Delivery Time :
30 days after receiving down payment
Packaging Details :
Standard export cartons
Name :
Molybdenum Rod With Thread
Thread Diameter :
M5 M8 M10 M12
Application :
High Temperature
Surface :
Polished
Material :
TZM/MoLa
Other Name :
Molybdenum Threaded Rods
Description

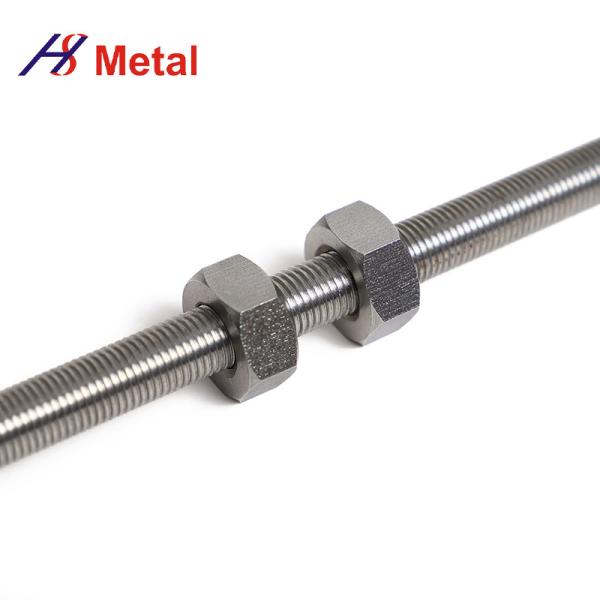

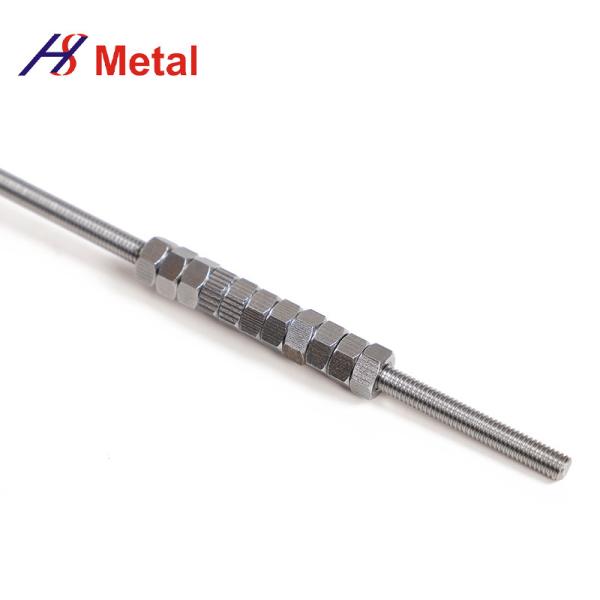

High Temperature TZM/MoLa Molybdenum Rod With Thread

Applications: Molybdenum Rod With Thread are mainly used in the high temperature vacuum environments.

Type: Fillister, pan and flat according to ANSI and metric sizes.

We produce molybdenum screws according to standard lengths or custom lengths and features.

Parameters

Molybdenum Threaded Rods
Thread Diameter 1000mm 2000mm 3000mm
M5 * * *
M8 * * *
M10 * * *
M12 * * *
* =Available
Size not listed? Please enquire – we may be able to provide it.

Atomic number 42
CAS number 7439-98-7
Atomic mass 95.94 [g/mol]
Melting point 2620 °C
Boiling point 4639 °C
Density at 20 °C 10.22 [g/cm³]
Crystal structure Body-centered cubic
Coefficient of linear thermal expansion at 20 °C 5.2 × 10-6 [m/(mK)]
Thermal conductivity at 20 °C 142 [W/(mK)]
Specific heat at 20 °C 0.25 [J/(gK)]
Electrical conductivity at 20 °C 17.9 × 106 [S/m]
Specific electrical resistance at 20 °C 0.056 [(Ωmm2)/m]

Application

Hot Zones for high-temperature furnaces.

Sputtering targets for coating solar cells & flat screens.

Glass melting electrodes

Be used of fasteners made of Molybdenum, Molybdenum alloy, Tungsten and its alloy.

Semiconductor base plates.

Brazing fixtures & Boring bars
