3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution
3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution
3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution
3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution
3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution
3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution
3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution
3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution
Specifications
Brand Name :
NODHA
Model Number :
GMMA-60S
Certification :
CE,ISO
Place of Origin :
WUXI
MOQ :
1 Set
Price :
USD 5000-8000/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Sets Per Year
Delivery Time :
10 Working Days
Packaging Details :
Plywood Case
Motor voltage :
AC 380V 3PH 50Hz
Motor power :
3400w
Cutter speed :
1050r/min
Milling speed :
0~1500mm/min
Bevel angle :
10~60 deg(adjustable)
Plate thick :
8~40mm
Bevel width :
0~45mm
N.W :
220kgs
Package :
80*65*114cm; plywood case
Description

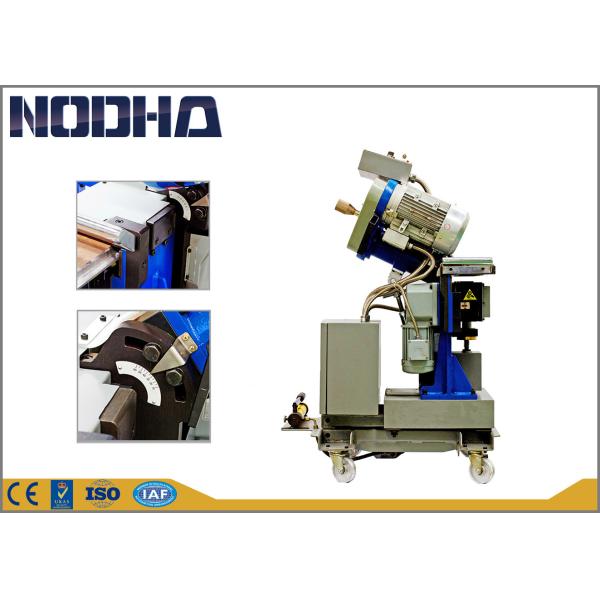

Automatic Walking Portable Plate Edge Milling Machine and Plate Beveling Machine

Introduction

GMMA-60S type automatic milling machine, this machine process plate automatically with high efficiency; completely cold cutting, non-oxidation on the surface; for the milling cutter,The radiance come to Ra 3.2-6.3 the finish on the surface is satisfy with the requirement in welding industry; easily operate and non-pollution.

Features

24V control box improve safety.

Digital display the feeding speed.

it can do "K", "V", "U" or "Y"-shaped bevel.

Cold cutting without heat affect zone.

Floating trolley compensates for uneven floor.

Hydraulic lifting makes the height adjust easily.

Beveling angle can be adjusted between 10 Deg to 60Deg

Application

Can be used to process iron, chromium iron, fine-grained steel, aluminum products, copper and aluminum alloy. Can be used in engineering machinery,steel structures, pressure vessels, shipbuilding, and the aerospace industry.

3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution

Machine parameters

Motor voltage:380V 3 PH 50Hz Motor power:3400W
Cutter rotation speed: 1050r/min milling speed:0~1500mm/min
Single mill width:15 mm bevel width: 0~45mm
Thickness of the plate:8~40mm Plate bevel angle :10°~ 60 º
Net weight :220kg Mini plate dimension:300*200mm
Exhibition

3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution

Certificate

3400w Automatic Walking Plate Edge Milling Machine With Non - Pollution

After-sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
