PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power
PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power
PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power
PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power
PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power
PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power
Specifications
Brand Name :
NODHA
Model Number :
PB-15
Certification :
CE,ISO
Place of Origin :
WUXI
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 SETS/ YEAR
Delivery Time :
5-7 Working Days

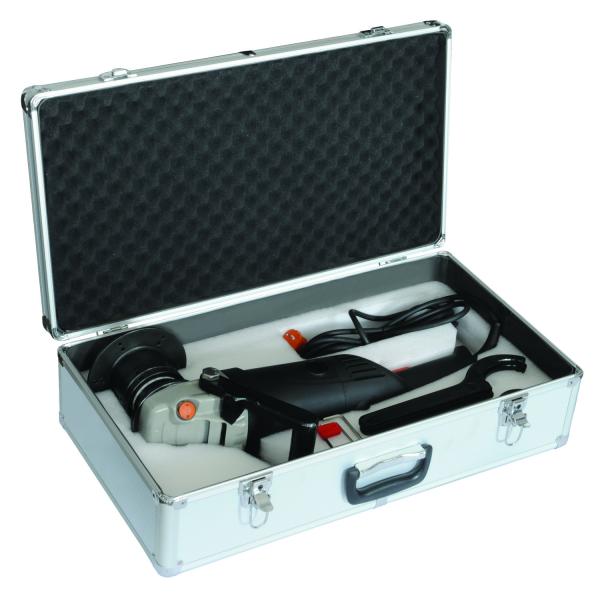

Packaging Details :
Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.
Power Supply :
220-240V 1PH 50/60HZ
Motor Power :
2450W
Spindle Speed :
2500-7500 RPM
Feed Speed :
1-10 M/Min
Beveling Width :
1-18mm
Radius Dimension :
R2, R3
Beveling Angle :
20,30,35,37.5,45,55 and 60 deg.
Minimal Plate Thickness :
1.5mm
Minimal inner radius :
25mm
Weight :
8.5kgs
Inserts Qty :
4 or 5 pcs
After-sale Service Provided :
Engineers available to service machinery overseas
Description

Edge Milling Machine:

PB-15 applies to preparation before plate welding, also edge rouding off steel construction before painting or coating. The machine equipped with continuous bevel width adjustment, overheating protection and electric speed control for use on various material. The compact design makes it an excellent tool in narrow space. The multi function and flexibility can improve efficiency and make the machine become an attarctive machine.

Features

  • High speed, high precious
  • Cold working
  • Compact and portable design
  • 2450w powerful motor-Improve efficiency

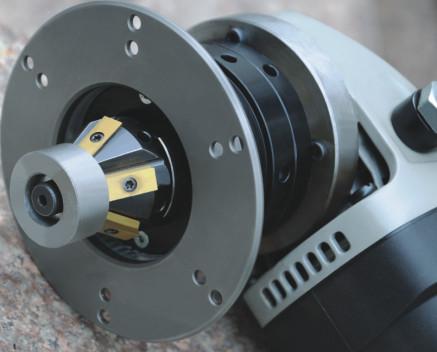

  • Small and light tool head, can process with 25mm radius inner curve

Application

  • For machining work pieces made of steel, chromium steel, fine-grained steel, aluminum, aluminum alloys, brass and plastics
  • For commercial use in industrial settings and in the skilled-trades
  • For preparing K, V, X and Y-shaped welding grooves
  • For creating visible edges in plant and mechanical engineering work

Specification

  • Power Supply: 220-240V 1PH 50/60HZ
  • Motor: 2450 W
  • Rotation: 2500-7500 RPM
  • Beveling Angle: 30° (Standard) (Option: 20°/37.5°/45° tool head)
  • Beveling Width:1-18mm (Single side)
  • Weight: 8.5 kg

Exhibition

PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power

Certification

PB-15 Handheld Plate Edge Milling Machine High Speed 2450W Motor Power

After-sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
