Specifications
Brand Name :
NODHA
Model Number :
PB-15
Certification :
CE,ISO
Place of Origin :
WUXI
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 SETS/ YEAR
Delivery Time :
8 Working Days
Packaging Details :
Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.
Power Supply :
220-240V 1PH 50/60HZ
Motor Power :
2450W
Spindle Speed :
2500-7500 RPM
Feed Speed :
10 M/Min
Beveling Width :
18mm
Radius Dimension :
R2, R3
Beveling Angle :
20,30,35,37.5,45,55 and 60 deg.
Color :
Customized
Description

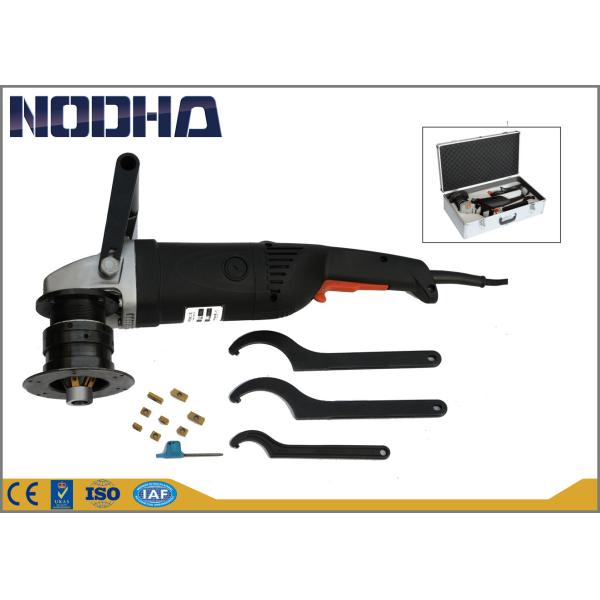

Hand held Plate Edge Milling Machine Plate Hand Milling Machine Plate Edge Milling and Beveling Machine

Handheld Edge Milling Machine Introduction:

PB-15 applies to preparation before welding, also edge rouding off steel construction before painting or coating.

The machine equipped with continuous bevel width adjustment, overheating protection and electric

speed control for use on various material. The compact design makes it an excellent tool in narrow space.

Features

The multi function and flexibility can improve efficiency and make the machine become an attarctive machine.

Application

  • For machining work pieces made of steel, chromium steel, fine-grained steel, aluminum, aluminum alloys, brass and plastics
  • For commercial use in industrial settings and in the skilled-trades
  • For creating visible edges in plant and mechanical engineering work

Specification

Power Supply: 220-240V 1PH 50/60HZ Beveling Width: 1-18mm
Motor Power: 2450 W Radius dimension: R2, R3
Cutter Rotation: 2500-7500 RPM Min Plate Thick: 1.5mm
Beveling Angle: 20°/30°/37.5°/45° N.w: 8.5 kgs

Exhibition

Customized Portable Plate Beveling Machine With CE / ISO Certificate

Certification

Customized Portable Plate Beveling Machine With CE / ISO Certificate

After-sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
