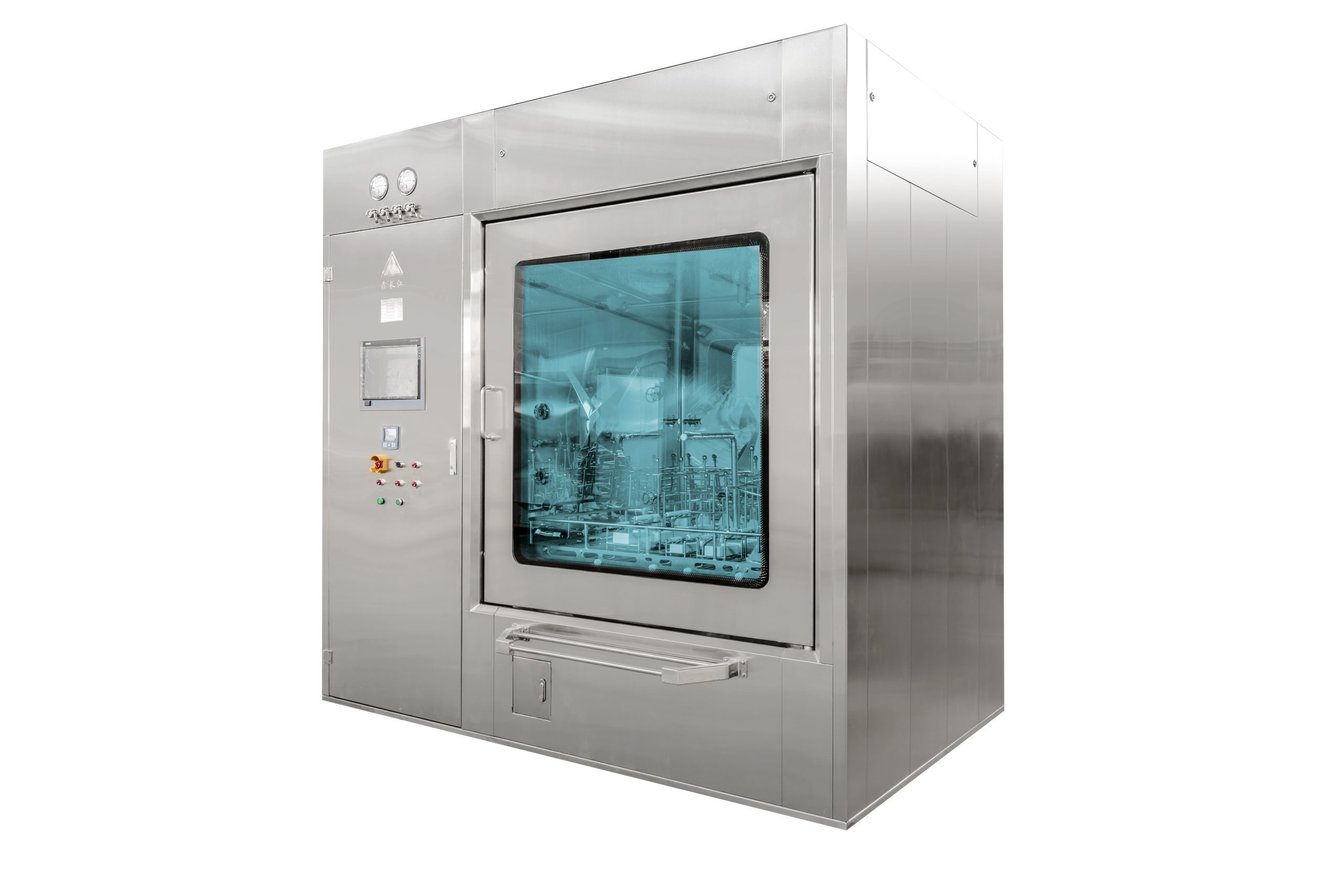

Washing Machine (SQX Series )- SQX-1.5m³
Washing Machine (SQX Series )- SQX-1.5m³
Washing Machine (SQX Series )- SQX-1.5m³
Washing Machine (SQX Series )- SQX-1.5m³
Washing Machine (SQX Series )- SQX-1.5m³
Washing Machine (SQX Series )- SQX-1.5m³
Washing Machine (SQX Series )- SQX-1.5m³
Washing Machine (SQX Series )- SQX-1.5m³
Specifications
Product Model :
SQX-1.5m³
Place of Origin :
China
Packaging Details :
Carton
Chamber Dimension（W*D*H） :
1100*1160*1180
Pure Water (kg/batch) :
DN25 0.2-0.3MPa 270-450
Cleaning Discharge Port :
DN50
Overall Dimension（W*D*H） :
2400*1428*2480
MOQ :
1 set
Injected Water (kg/batch） :
DN25 0.2-0.3MPa 180-270
Volume（m³） :
1.5
Air electric heating（KW） :
12
Water pump power（ KW） :
11/7.5
Drying and Dehumidifying Port (External Connection) :
DN200
Steam Consumption(Water heating)（kg/h） :
DN25,20
Delivery Time :
15-30 Days
Door Opening Mode :
Outward winding
Fresh Air Collection in the Clean Area before Cleaning（m³/h） :
450
Aggregate Capacity（kW） :
16
Price :
Negotiate
Running Water (kg/batch) :
DN150.2-0.3MPa 90-180
Description

Siemens Human-Machine Interactive Cleaning System (Model: SQX-1.5m³)

The Siemens human-machine interactive system features a friendly, easy-to-operate interface with real-time dynamic display of compartment operation states for reliable performance. Built with a stainless steel shell and interior mirror polishing, the unit ensures hygiene with arc-corner transitions that eliminate dead spaces.

  • Sanitary Design: Draining slope pipeline uses sanitary-level stainless steel pipes without gaps.
  • Superior Sealing: Equipped with an inflatable air-tight door to guarantee sealing performance and long-term leak-free operation.
  • Easy Maintenance: Designed for efficient cleaning and seamless integration into professional workflows.

Key Technical Specifications

ParameterDetail
Product ModelSQX-1.5m³
Volume1.5 m³
Chamber Dimension1100*1160*1180 mm
Overall Dimension2400*1428*2480 mm
Air Electric Heating12 KW
Water Pump Power11/7.5 KW
Aggregate Capacity16 KW
Door Opening ModeOutward winding
Cleaning Discharge PortDN50
