Integrated Ammonia Cracker for Metal Heat Treatment: Pure Hydrogen, Streamlined Operation

Introduction: The Integrated Ammonia Cracker represents a technological leap in hydrogen generation for demanding metal heat treatment processes like annealing, sintering, brazing, and nitriding. By combining ammonia cracking and hydrogen purification onto a single, automated skid, this system delivers high-purity hydrogen gas (H₂) efficiently, safely, and reliably directly from liquid ammonia (NH₃).

Product Features & Characteristics:

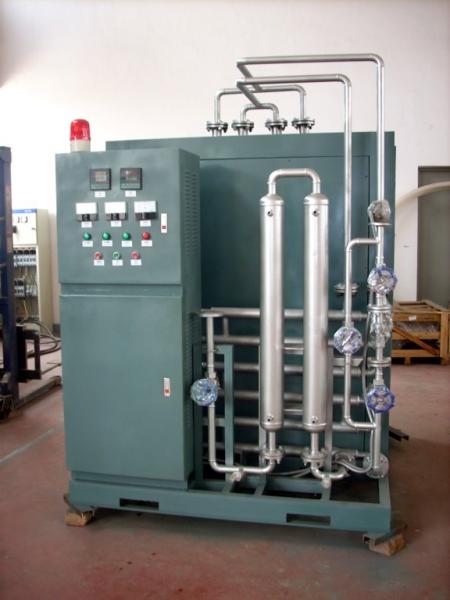

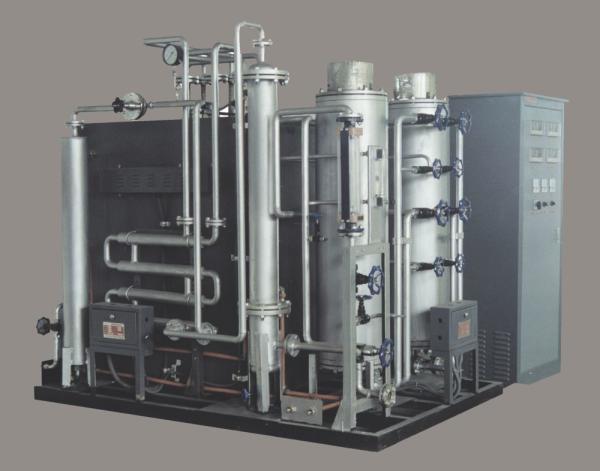

1. Fully Integrated Skid Design:

   • Core Innovation: Seamlessly incorporates both the Ammonia Cracker (where NH₃ decomposes to 75% H₂ and 25% N₂) and the Hydrogen Purificator (removes residual NH₃ and moisture) onto one compact, pre-engineered platform.
   • Benefits: Drastically reduces footprint, simplifies installation (plug-and-play), minimizes field piping/connections, lowers overall project costs, and ensures optimized compatibility between components.

2. High Degree of Automation:

   • Fully Automatic Operation: Engineered for minimal operator intervention. Features automated startup sequences, precise process control loops, continuous monitoring, and controlled shutdown procedures.
   • Benefits: Enhances operational safety, reduces labor costs, ensures consistent gas quality and flow, minimizes human error, and enables integration into broader plant control systems (SCADA/DCS).

3. Advanced Process Control & Energy Efficiency:

   • Controllable Silicon (SCR) Power Controller: Precisely regulates the electrical heating elements within the cracker furnace based on real-time demand.
   • Benefits: Optimizes energy consumption significantly compared to simple on/off controls, provides stable and uniform reactor temperature crucial for conversion efficiency, extends heating element life, and lowers operating costs.

4. Robust Safety Systems:

   • Two-Stage Pressure Reducing Valve: Ensures stable, controlled inlet pressure for the cracker, protecting downstream components from pressure surges originating from the ammonia supply.
   • Overpressure Protection & Alarm: Comprehensive pressure monitoring with integrated safety relief valves. Triggers distinct Sound and Light Alarms immediately upon detection of unsafe pressure conditions, alerting personnel for prompt action. Safety interlocks prevent unsafe operation.

5. Efficient Hydrogen Generation:

   • Ammonia Decomposition: Utilizes the catalytic reaction: 2NH₃ → 3H₂ + N₂ (endothermic, requiring heat ~800-950°C). Liquid ammonia is readily stored and vaporized before cracking.
   • Integrated Purification: Ensures the hydrogen gas stream meets stringent purity requirements for sensitive metallurgical processes by removing trace impurities (<10 ppm residual NH₃ typical).

Key Advantages:

• Pure & Consistent Hydrogen Supply: Essential for achieving defect-free, high-quality metal parts without oxidation or decarburization.
• Enhanced Safety: Integrated design minimizes leak points. Automated controls, overpressure protection, and alarms mitigate risks associated with H₂ and NH₃ handling.
• Lower Operational Costs: Reduced energy consumption (via SCR control), minimal manpower requirements (automation), and lower installation costs (skid-mounted).
• Space Optimization: Single-skid solution significantly reduces the required plant floor space.
• Reliability & Uptime: Automated operation and robust design ensure consistent performance vital for continuous heat treatment lines.
• Scalability: Design principles can be adapted to various capacities to meet specific hydrogen demand.
• Simplified Logistics: Utilizes liquid ammonia, often more readily available and easier to store/transport than bulk hydrogen gas cylinders or tube trailers.

Typical Technical Parameters:

FAQ (Frequently Asked Questions):

1. Q: Why use an Ammonia Cracker instead of bottled hydrogen?

   • A: Crackers offer significant cost savings for medium to high hydrogen volumes, eliminate handling risks of high-pressure H₂ cylinders, provide continuous on-demand supply crucial for production lines, and utilize safer-to-store liquid ammonia.

2. Q: What purity of hydrogen does this integrated unit produce?

   • A: The integrated purification stage ensures hydrogen purity typically ≥ 99.999% with residual ammonia levels below 5-10 ppm, meeting the stringent requirements for most protective atmosphere heat treatments.

3. Q: How energy-efficient is the SCR controller?

   • A: The Silicon Controlled Rectifier (SCR) power controller significantly improves energy efficiency (often 10-20%+ savings) compared to basic contactor control. It provides smooth, proportional power delivery to heaters, minimizing temperature swings and energy waste.

4. Q: Is the unit difficult to install and operate?

   • A: The skid-mounted design makes installation relatively straightforward (foundation, utilities, ammonia feed connection). Fully automatic operation minimizes day-to-day operator tasks. Comprehensive training and manuals are provided.

5. Q: What safety features protect against overpressure?

   • A: The system employs a Two-Stage Pressure Reducing Valve for stable inlet feed. Continuous pressure monitoring activates Sound and Light Alarms instantly upon detecting overpressure conditions, alongside mechanical pressure relief devices as a final safety barrier. Safety interlocks halt operation if unsafe parameters are detected.

6. Q: What maintenance is required?

   • A: Maintenance primarily involves periodic catalyst inspection/change (every 1-5+ years depending on use), checking/replacing purification media, routine inspections of valves/filters, and calibration of safety devices/sensors as per the maintenance schedule.

Conclusion: The Integrated Ammonia Cracker skid is the optimal solution for metal heat treatment facilities seeking a reliable, safe, and cost-effective source of high-purity hydrogen. Its compact footprint, high degree of automation, advanced SCR energy control, and integrated safety systems deliver superior operational efficiency and peace of mind. By generating hydrogen on-demand from liquid ammonia, it streamlines logistics, enhances process control, and significantly contributes to producing high-quality metal components. This integrated approach represents the modern standard for hydrogen supply in demanding industrial thermal processing.
