LGC6122 Non Refrigerated Infrared Thermal Camera Module Imaging Module

Specifications

Brand Name :

UND

Model Number :

LGC6122

Place of Origin :

CHINA

MOQ :

Price :

Please consult a sales engineer

Payment Terms :

T/T

Supply Ability :

1000

Delivery Time :

5-8 days

Description

Long wave non-refrigerated module

LGC6122 infrared thermal imaging module

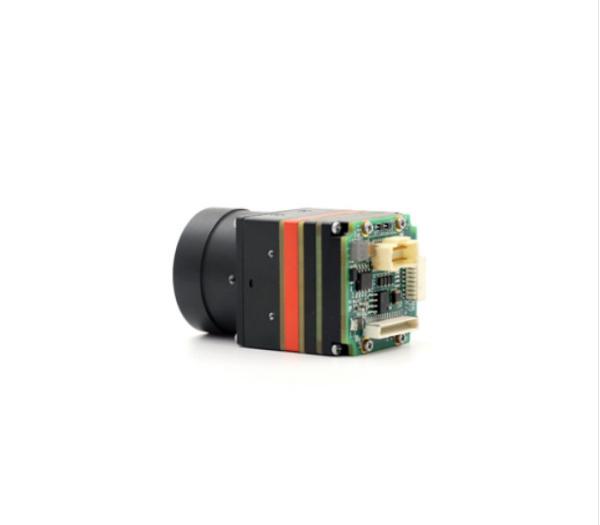

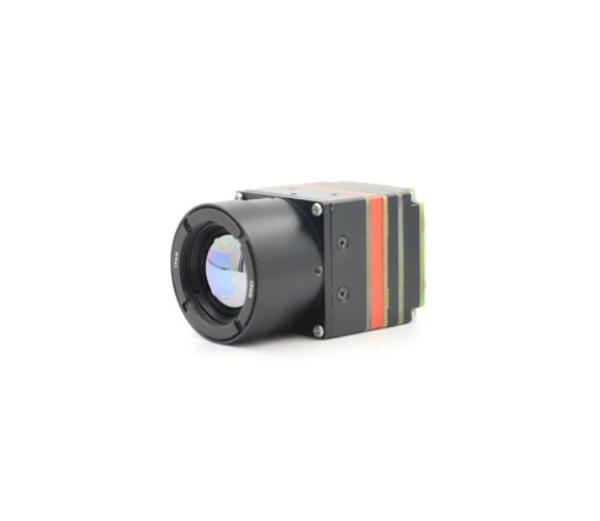

LGC6122 Non Refrigerated Infrared Thermal Camera Module Imaging Module

The domestic products can provide perfect infrared thermal imaging solutions for a variety of small thermal imaging night vision telescopes, helmet night vision equipment, lightweight unmanned aerial vehicle systems and multiple fusion photoelectric systems. At the same time, it can meet the development needs of photoelectric pods, vehicle applications, sighting devices and other products with high reliability requirements.

Resolution: 640×512

Pixel size: 12μm

Application scenario: schools, troops, enterprises, units, hospitals

Product characteristics

Small size, without lens and expansion components, the size is 29.5mm×29.5mm×28mm

Lightweight, 35g±3g without lens and expansion components;

Low power consumption, the minimum power consumption is 1.2w without user expansion components;

Provide two UART serial communication interfaces;

Provides analog video output, can support PAL /NTSC standard

Provide LVCMOS/LVDS/BT656/BT1120 mainstream digital video output;

Movement components adopt all domestic solutions, technical safety, independent and reliable;

640×512 resolution, fast and efficient;

It has good vibration and shock resistance.

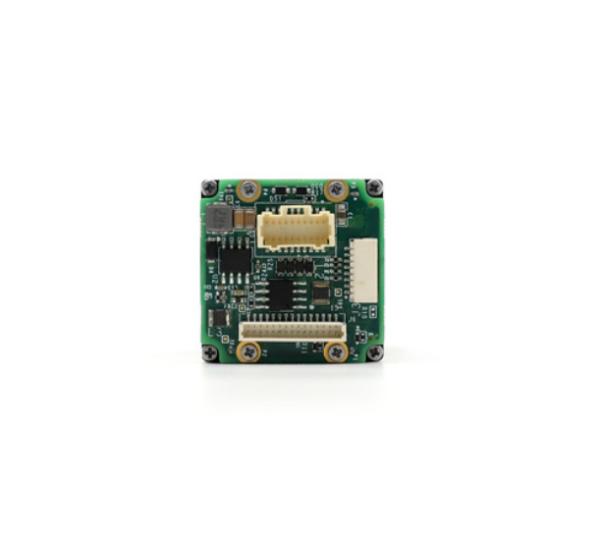

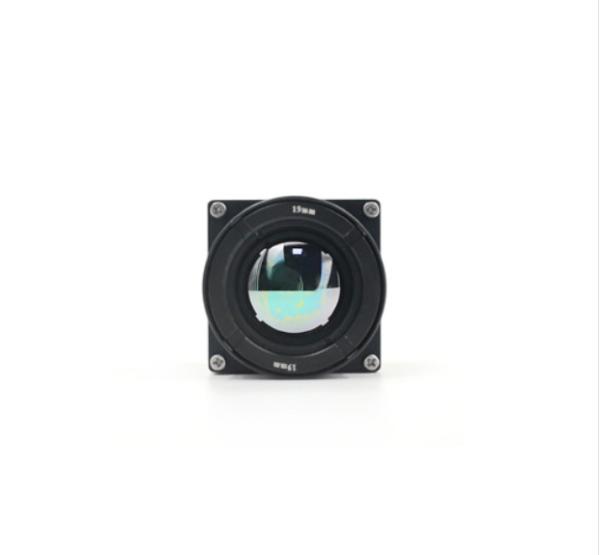

LGC6122 Non Refrigerated Infrared Thermal Camera Module Imaging Module

Technical parameter

Product model	LGCS121	LGC7121	LGC6122
Imaging parameter
Detector type	Vanadium oxide uncooled infrared focal plane detector
Array format	1280x1024	1024x768	640x512
Pixel spacing	12μm
Response band	8～14μm
Frame frequency	30/60Hz(NTSC),25/50Hz(PAL)
Non-uniformity correction	Support SBNUC and TECLESS
Electron doubling	1.0~4.0× continuous multiplication
Character superposition	Support
Noise equivalent temperature difference (NETD)	≤50mK@25℃,F#1.0 (≤40mK optional)
MRTD	≤400mK (Optional ≤300mK)
Polarity	Black/white fever
Pseudo-color	Support
Image processing	Non-uniformity correction, time domain filtering, digital detail enhancement
Optical lens
Focusing type	Athermalization
	Horizontal field Angle/focal length	Horizontal field Angle/focal length	Horizontal field Angle/focal length
	88°/10mm	70.4°/10mm	89°/4.1mm F1.2
	46.3°/19mm	37.1°/19mm	70°/5.8mm F1.2
	35.2°/25mm	28.2°/25mm	48°/9.1mm F1.2
	25.5°/35mm	20.1°/35mm	33°/13mm
	16°/55mm	12.8°/55mm	22°/19mm
	11.7°/75mm	9.4°/75mm	17°/25mm
			12.5°/35mm
			8°/55mm
			5.9°/75mm
			4.4°/100mm
