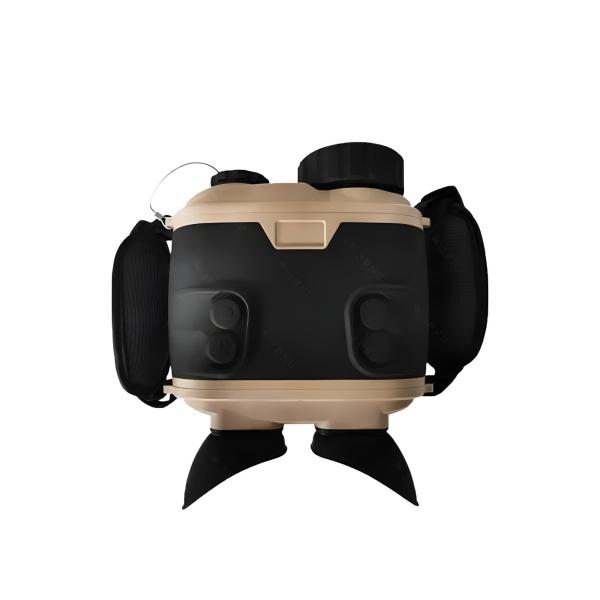

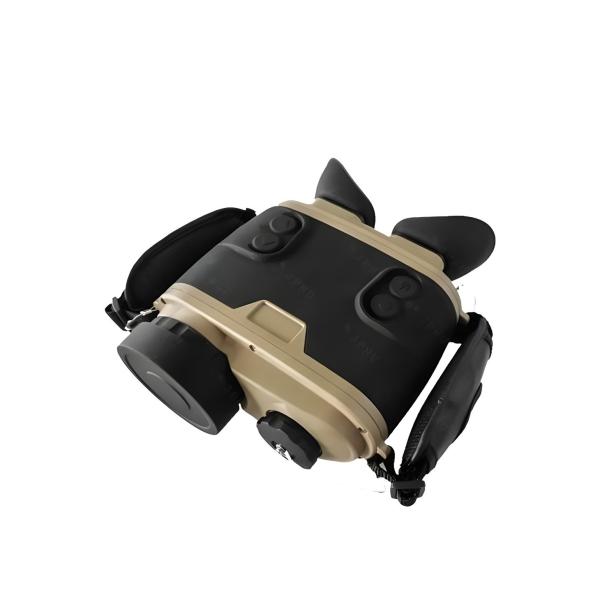

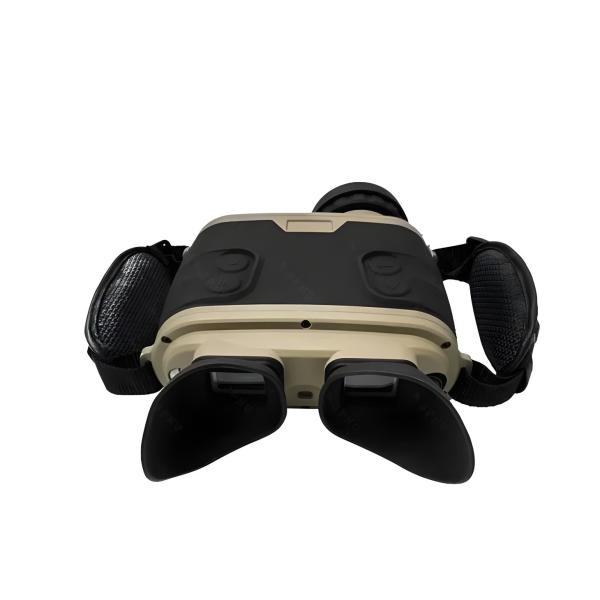

High-Sensitivity Thermal Imaging Binocular

UND-TB-350 Hand-held infrared uncooled thermal imaging night vision thermal binoculars

Un-cooled thermal radiation measurement detector

NETD 50mK at 300K

8 to 14μm wavelength range

Dual-eye LCOS eyepiece with a resolution of 640 x 480 pixels

Products Description

The High-sensitivity Thermal Imaging Binocular is a top-of-the-line thermal imaging device that offers unparalleled performance, versatility, and reliability. This remarkable product comes in two variations: the TB-350B and the TB-350E, both of which are engineered to meet the highest standards of quality and precision.

At the heart of this exceptional product is a un-cooled thermal radiation measurement detector with a resolution of 384 x 288 pixels and a pixel pitch of just 17μm. This advanced detector ensures stunningly accurate and detailed thermal images, making it ideal for a wide range of applications.

Additionally, the High-sensitivity Thermal Imaging Binocular boasts exceptional sensitivity, with a noise equivalent temperature difference (NETD) of less than 50mK at 300K. This means that it can detect even the slightest temperature differences with great precision, making it an ideal tool for a wide range of professional and industrial applications.

The TB-350B variation of the Binocular operates within a wavelength range of 8 to 14μm, while the TB-350E variation operates within a wavelength range of 8 to 12μm. Both variations include a high-resolution binocular display, which offers stunningly lifelike imagery that is perfect for a wide range of applications.

Specifically, the TB-350B features a dual-eye LCOS eyepiece with a resolution of 640 x 480 pixels, while the TB-350E features a dual-eye OLED eyepiece with a resolution of 800 x 600 pixels. Both variations offer incredible clarity and detail, making them ideal for everything from heavy-duty inspections to nighttime tactical operations.

One of the standout features of the Binocular is its high frame rate of 50Hz. This fast frame rate ensures smooth and seamless imaging, making it perfect for everything from tactical operations to scientific research.

The High-sensitivity Thermal Imaging Binocular also features advanced digital filtering capabilities for image noise reduction, as well as dynamic detail enhancement (DDE) technology to improve image clarity and sharpness.

Technical Parameters
