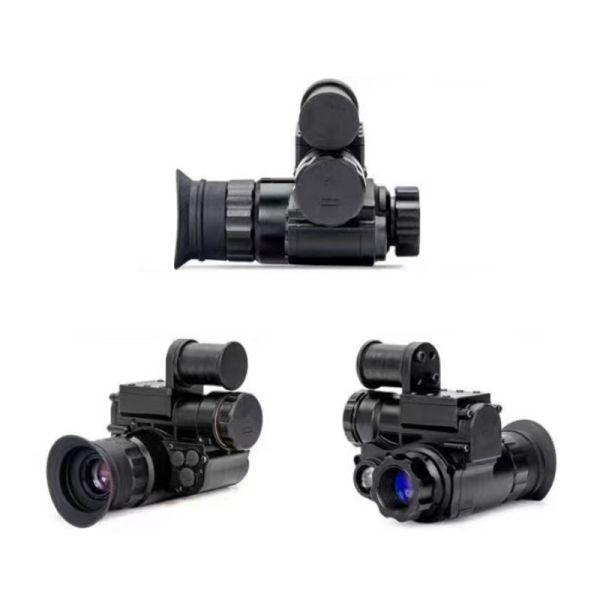

Digital Night Vision Head Mounted Thermal Monocular For Surveillance & Outdoor Use
Digital Night Vision Head Mounted Thermal Monocular For Surveillance & Outdoor Use
Digital Night Vision Head Mounted Thermal Monocular For Surveillance & Outdoor Use
Digital Night Vision Head Mounted Thermal Monocular For Surveillance & Outdoor Use
Digital Night Vision Head Mounted Thermal Monocular For Surveillance & Outdoor Use
Digital Night Vision Head Mounted Thermal Monocular For Surveillance & Outdoor Use
Specifications
Brand Name :
EV
Model Number :
NVG-30
Place of Origin :
CHINA
MOQ :
1
Price :
15-7000(USD)
Payment Terms :
T/T
Supply Ability :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Delivery Time :
In stock
Packaging Details :
Carton
Price Term: :
EXW Price
Description
Digital Night Vision Head Mounted Thermal Monocular For Surveillance & Outdoor Use
Product Features
  • 1.1" ultra-clear large display window, comfortable to view with no dark shadows
  • 80-120m all-black human observation distance
  • Ultra-high resolution, clear imaging, and wide field of view
  • Ultra-broadband infrared anti-reflection coating, day/night black & white/color effect
  • Supports photo and video capture, allowing real-time sharing of observation scenes
  • 3x digital zoom, effectively enlarging the viewing scope
  • IP66 waterproof and dustproof, operational in environments from -40°C to +50°C
Technical Specifications
Category Parameter Specification
Optical Optical Magnification 1x
Digital Magnification 3x
Objective Diameter 17.5mm
Eyepiece Type Diopter Adjustable
Field of View 25.5° × 14.5°
Diopter Adjustment Range ±5
Focal Length 20mm
Focus Adjustment Objective Lens Adjustment
Minimum Focus Distance 250mm
Exit Pupil Distance 20mm
Exit Pupil Diameter Ø7mm
Camera & Sensor Camera Type CMOS
Sensor Pixel 1920 × 1080
Sensor Size 1/2"
IR Wavelength 850nm / 940nm
Minimum Illumination 10⁻⁴ Lux
IR Power 1W
Display Display Resolution 1280 × 720
Display Size / Type 0.38" LCoS
White Balance Auto
Display Color Modes Black & White, Fluorescent Green
Environmental Operating Temperature -40°C ~ +55°C
Operating Humidity Max 70%
Storage Temperature -50°C ~ +70°C
Waterproof Rating IP66
Power & Battery Operating Voltage 3.6V - 4.2V
Battery Type 18650 × 1
Charging Method External Charger
Battery Life >5 Hours
Connectivity & Functions Video Output Wi-Fi
USB Port None
Photo Function Yes (via App)
Video/Audio Recording Yes
Screen Brightness Adjustment Yes
IR Illuminator Brightness Adjustment Yes (via App)
Photo/Video Playback & Delete Yes (via App)
Time Setting Yes
Physical Color Black
Dimensions (L×W×H) 100 × 78 × 65 mm
Weight 237g
