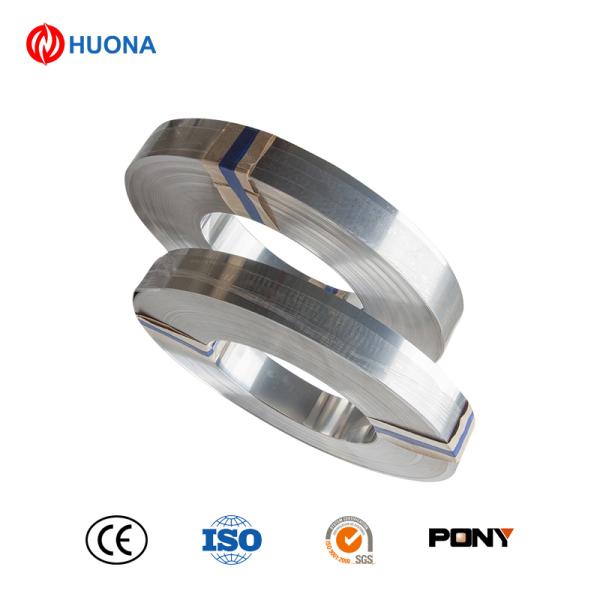

High Purity 99.99 N6 Pure Nickel Strip
High Purity 99.99 N6 Pure Nickel Strip
Specifications
Brand Name :
HUONA
Model Number :
N6
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10
Price :
DISCUSS
Payment Terms :
L/C,Western Union,,T/T
Supply Ability :
1000kg Per Week
Delivery Time :
5-7DAYS
Packaging Details :
SPOOL
Melting Point :
1435°C
Material :
Nickel-Iron Alloy
Grade :
N6
Transport Package :
Wooden Packing
Corrosion Resistance :
Excellent
Specification :
0.02-0.5mm
Specifications :
ASTM F1058-12 Grade 1
Thermal Conductivity :
11.5 W/mK
Coating Hardness :
HRB 75
Density :
8.9g/cm3
Description
High Purity 99.99 N6 Pure Nickel Strip
Product Specifications
Attribute Value
Melting Point 1435°C
Material Nickel-Iron Alloy
Grade N6
Transport Package Wooden Packing
Corrosion Resistance Excellent
Specification 0.02-0.5mm
Standards ASTM F1058-12 Grade 1
Thermal Conductivity 11.5 W/mK
Coating Hardness HRB 75
Density 8.9g/cm3
Product Description

High purity 99.9-99.99 Ni200/Ni201/N4/N6 pure nickel foil/sheet/strip with excellent mechanical properties, high corrosion resistance in different environments, and magnetic features. Features high heat transfer, high conductivity, low gas volume and low vapor pressure with good spot welding properties and high tensile strength.

Key Features
  • Low resistance makes battery packs more powerful while saving energy
  • Pure nickel composition enables easy welding and stable connections
  • Excellent tensile strength and easy assembly operation
  • Pre-shaped design saves assembly work for battery packs
  • High electrical conductivity
  • Anti-corrosive with low resistance
Physical Properties
  • Excellent spot welding capability
  • Lower resistance
  • Extended battery discharge time
  • Stronger battery spot welding
Applications
  • Manufacturing nickel-cadmium batteries
  • Nickel-hydrogen batteries
  • Lithium cells
  • Assembled battery packs
  • Electric tools and special lighting industries
  • Superconductor applications
Material Composition
Grade Ni+Co Cu Si Mn C Mg S P
N4 99.8 0.015 0.03 0.002 0.01 0.01 0.001 0.001
N6 99.6 0.10 0.10 0.05 0.10 0.10 0.005 0.002
Ni201 ≥99.0 ≤0.25 ≤0.35 ≤0.35 ≤0.02 / ≤0.01 /
Ni200 ≥99.2 ≤0.25 ≤0.35 ≤0.35 ≤0.15 / ≤0.01 /
18650 Nickel Strip Specifications

Material: 18650 nickel strip

Dimension: 1P to 9P

Available Space: 18.5mm, 19mm, 19.5mm, 20.2mm

Usage: For 18650 battery packs

Package: Nickel strip in roll pack into carton

Physical Properties: High temperature resistant, corrosion resistance

Technical Support: With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can open mold independently.

Functions: Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and other energy products

Advantage: All materials are degreased and adopt the dry-punching technology to ensure that the product is clean
