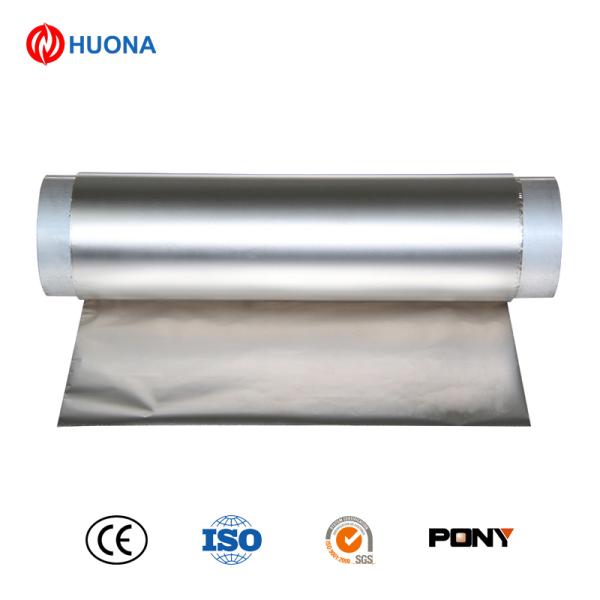

Evanohm/Karma/Nickel/Tin/Cr20ni80/Ni80cr20/Nicr80/20/Nichrome Foil
Evanohm/Karma/Nickel/Tin/Cr20ni80/Ni80cr20/Nicr80/20/Nichrome Foil
Specifications
Brand Name :
HUONA
Model Number :
NI80CR20
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10
Price :
DISCUSS
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
50 Ton/Month
Delivery Time :
5-1`0 DAYS
Packaging Details :
Wooden Cases or Cartons
Hs Code :
7505220000
Specifications :
ASTM F1058-12 Grade 1
Production Capacity :
1500tons/Year
Product Shape :
Z-shaped
Product Usage :
Heating element for furnace
Machinability :
Good
Elongation At Break :
20-30%
Customized Service :
Support
Grade :
4J42
Surface :
Bright
Specification :
RoHS, SGS
Hardness :
150-250 HB
Commerical Grade Name :
Elgiloy Alloy
Density :
8.9g/cm3
Resistivity :
~0.42 μΩ·m
Description
Evanohm/Karma/Nickel/Tin/Cr20ni80/Ni80cr20/Nicr80/20/Nichrome Foil
Product Specifications
Attribute Value
Hs Code 7505220000
Specifications ASTM F1058-12 Grade 1
Production Capacity 1500tons/Year
Product Shape Z-shaped
Product Usage Heating element for furnace
Machinability Good
Elongation At Break 20-30%
Customized Service Support
Grade 4J42
Surface Bright
Specification RoHS, SGS
Hardness 150-250 HB
Commerical Grade Name Elgiloy Alloy
Density 8.9g/cm3
Resistivity ~0.42 μΩ·m
Product Description

Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C, and holds a superior service life compared to Iron chromium aluminum alloys.

Typical applications for Ni80Cr20 are electric heating elements in home appliances, industrial furnaces and resistors (wirewound resistors, metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

Normal Composition %
C P S Mn Si Cr Ni Al Fe Other
Max 0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -
Typical Mechanical Properties (1.0mm)
Yield Strength (Mpa) Tensile Strength (Mpa) Elongation (%)
420 810 30
Typical Physical Properties
Density (g/cm3) 8.4
Electrical resistivity at 20ºC (mm2/m) 1.09
Conductivity coefficient at 20ºC (WmK) 15
Melting point (ºC) 1400
Max continuous operating temperature in air (ºC) 1200
Magnetic properties non-magnetic
Coefficient of Thermal Expansion
Temperature Coefficient of Thermal Expansion x10-6/ºC
20ºC-1000ºC 18
Specific Heat Capacity
Temperature J/gK
20ºC 0.46
Temperature Factors Of Electrical Resistivity
20ºC 100ºC 200ºC 300ºC 400ºC 600ºC
1 1.006 1.012 1.018 1.025 1.018
700ºC 800ºC 900ºC 1000ºC 1100ºC 1300ºC
1.01 1.008 1.01 1.014 1.021 -
Style of Supply
Alloys Name Type Dimension
Ni80Cr20W Wire D=0.03mm~8mm
Ni80Cr20R Ribbon W=0.4~40 | T=0.03~2.9mm
Ni80Cr20S Strip W=8~250mm | T=0.1~3.0
Ni80Cr20F Foil W=6~120mm | T=0.003~0.1
Ni80Cr20B Bar Dia=8~100mm | L=50~1000
