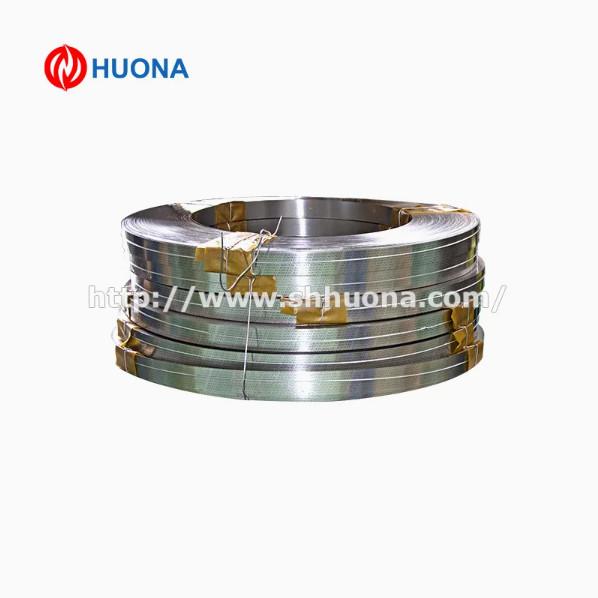

Professional Supply Of ASTM TM2 Bimetallic Ribbon Stable And Trustworthy Performance
Professional Supply Of ASTM TM2 Bimetallic Ribbon Stable And Trustworthy Performance
Specifications
Brand Name :
HUONA
Model Number :
ASTM TM2
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5
Price :
Bargain
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500 Ton/Month
Delivery Time :
5-21days
Packaging Details :
Cartons/Woodbox
Type :
Soft and Hard
Carbon Content :
Low Carbon
Density (g/cm3) :
7.7
Width :
5-120mm
Thickness :
0.1mm
Thermal conductivity, λ/ W/(m*ºC) :
6
High expansion layer :
Mn75Ni15Cu10
Low expansion layer :
Ni36
Description

Product Description

ASTM TM2 bimetal ribbon

Common Name: Truflex P675R, Chace 7500,Telcon200, Kan 200)
Bimetallic ASTM TM2 holds very high thermal sensitivity and higher resistivity,but the modulus of elasticity and allowable stress is lower,it can improve the sensitivity of the instrument,decrease the size and increase the force.

Composition
Grade ASTM TM2
High expansion layer Mn75Ni15Cu10
Low expansion layer Ni36

Chemical composition(%)
Grade C Si Mn P S Ni Cr Cu Fe
Ni36 ≤0.05 ≤0.3 ≤0.6 ≤0.02 ≤0.02 35~37 - - Bal.
Grade C Si Mn P S Ni Cr Cu Fe
Mn72Ni10Cu18 ≤0.05 ≤0.5 Bal. ≤0.02 ≤0.02 9~11 - 17~19 ≤0.8

Typical Physical properties
Density (g/cm3) 7.7
Electrical resistivity at 20ºC(ohm mm2/m) 1.13 ±5%
Thermal conductivity, λ/ W/(m*ºC) 6
Elastic Modulus, E/ Gpa 113~142
Bending K / 10-6 ºC-1(20~135ºC) 20.8
Temperature bending rate F/(20~130ºC)10-6ºC-1 39.0%±5%
Allowable temperature (ºC) -70~ 200
Linear temperature (ºC) -20~ 150

Application: The material is mainly used as Non magnetic non matching ceramic sealing material in Gyro and other electric vacuum devices.

Style of supply
Alloys Name Type Dimension
ASTM TM2 Strip W= 5~120mm T= 0.1mm
