Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Durable Gold Nickel Alloy Au-Ni AuNi5 Metal Resistance Wires
Specifications
Brand Name :
HUONA
Model Number :
AuNi5
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10 g
Price :
Bargain
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1 Ton/Month
Delivery Time :
5-21days
Packaging Details :
Carton
Resistivity :
0.14
Specification :
0.02-0.5mm
Product Type :
Wire
Material :
Auni5
HS Code :
7505220000
Product Name :
Gold Nickel Wire
Description

Basic Info.

Model NO.
AuNi5
Surface
Bright
Resistivity
0.14
Product Type
Wire
Material
Auni5
Carbon Content
-
PCD
-
ET
-
Hole
-
Transport Package
Carton
Specification
0.02-0.5mm
Trademark
HUONA
Origin
Shanghai, China
HS Code
7505220000
Production Capacity
1 Ton/Month

Product Description

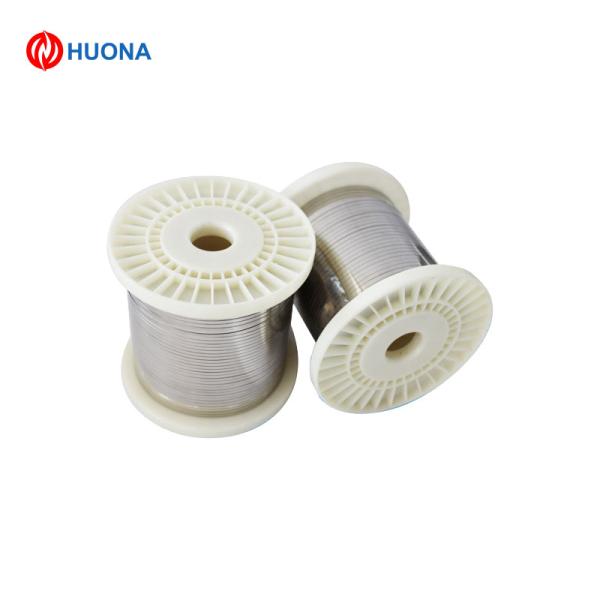

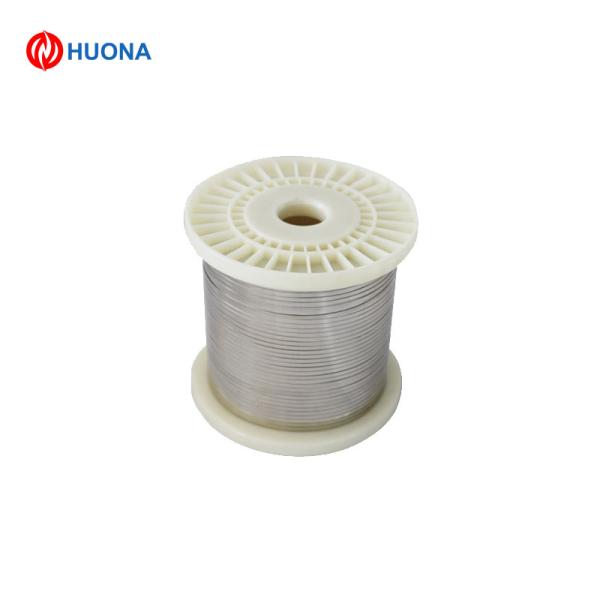

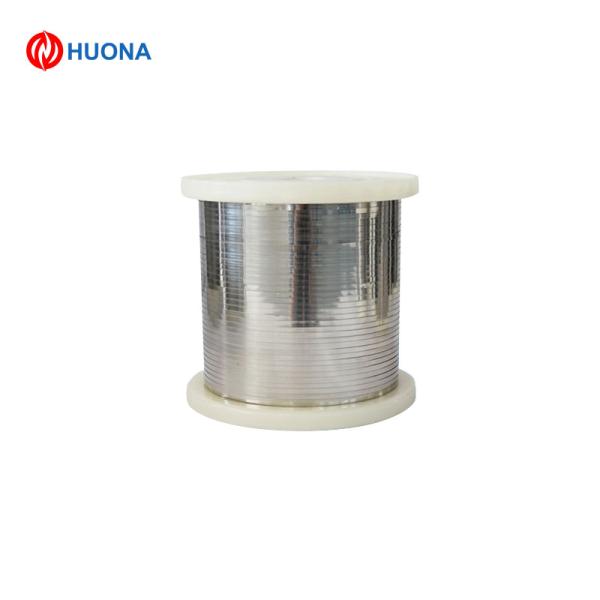

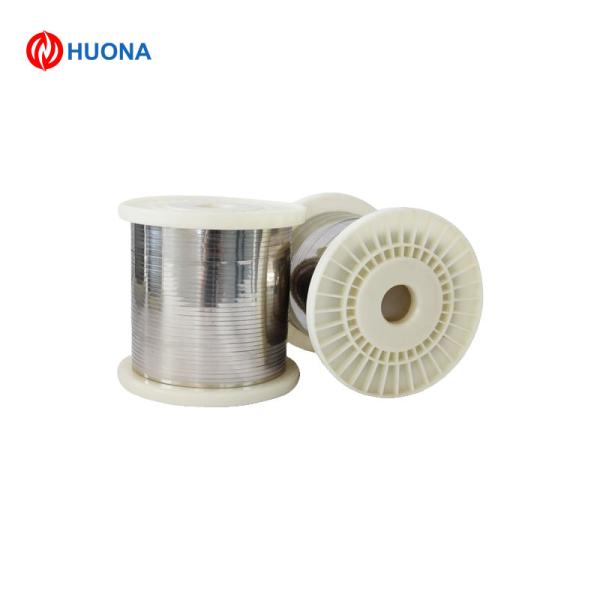

Gold nickel alloy Au-Ni AuNi5 metal resistance wire
Specifications

1,Factory supply with best price
2,Diameter: from0.03mm-0.5mm
3,Used in nonstandard thermocouple
4, TCR: 0.00071
5,Thermal EMF Vs Copper(µv/C) : -0.5
6, T.S. Annealed: 490MPa

Description.

The alloy has been used in "nonstandard" thermocouples, electrical contacts and for electrodes in medical research. The alloy is harder and mechanically stronger than Platinum.

This wire features a 90% Platinum and 10% Iridium composition and is widely used in the assembly of microelectrode probes. Iridium, a Platinum group metal, is very dense and hard, imparting added strength to the wire.

PtIr 5,PtIr10,PtIr15,PtIr20,PtIr25 resistivity: 0.19-0.33 µOhm.m

Technical Data for Platinum/Iridium wire

Electrical Properties

Electrical resistivity ( µOhm.m ): 0.245

Temperature coefficient ( K-1 ): 0.0013

Mechanical Properties

Elongation at break ( % ) <25

Hardness - Brinell 130-190

Tensile strength ( MPa )380-620

Physical Properties

Density ( g cm-3 )21.56

Melting point ( C )1800

Thermal Properties

Coefficient of thermal expansion @20-100C ( x10-6 K-1 )8.7

Thermal conductivity @23C ( W m-1 K-1 )31

Typical Analysis : (ppm)

Ag 100, Au 75, Cu 50, Fe 250, Ir 10%, Ni <100, Si <50, Pt. balance.

Tolerances

Wire diameter: ±10%

Length:+5% / -1%
