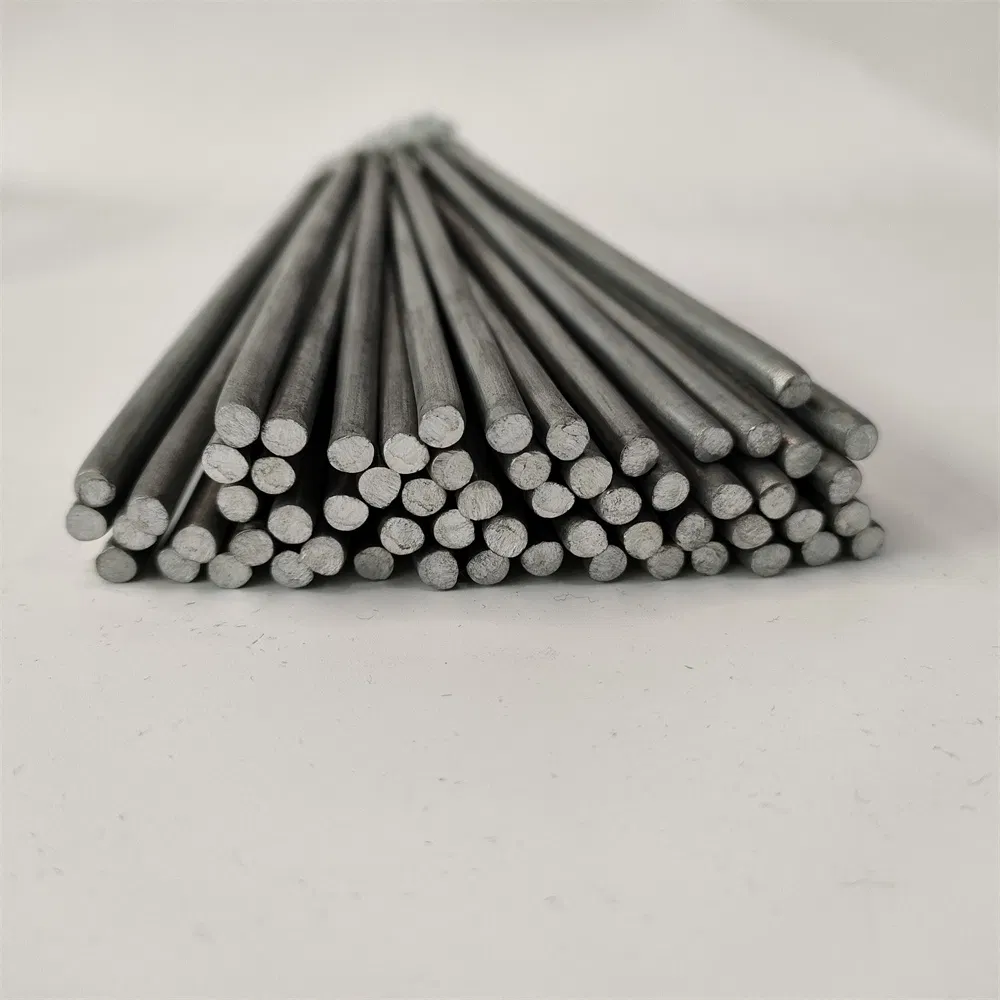

Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Specifications
Brand Name :
HUONA
Model Number :
Rod
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1kg
Price :
Bargain
Payment Terms :
T/T
Supply Ability :
1000kg Per Week
Delivery Time :
A Week
Packaging Details :
Carton or Wooden Case
Density :
8.47 g/cm³ (0.306 lb/in³)
Melting Range :
1354–1413°C (2470–2580°F)
Electrical Resistivity :
1.03 μΩ·m (at 20°C)
Thermal Conductivity :
14.9 W/m·K (at 100°C)
14.9 W/m·K (at 100°C) :
Typically <1.02 (non-magnetic when annealed)
Oxidation Resistance: :
Excellent up to 1095°C (2000°F)
Description

Basic Info.

Model NO.
Hastelloy C276 Bar
Purity
>99.95%
Alloy
Non-alloy
Type
Nickel Bar
Powder
Not Powder
Melting Point
1357-1385
Shape
Wrie, Pipe,Bar,Strip, Plate
Surface
Bright
Technique
Cold Treatment
Manufacturing Process
Solution Treatment
Transport Package
Carton or Wooden Case
Specification
GB, AISI, ASTM, DIN, EN, SUS, UNS
Trademark
Huona
Origin
Xuzhou, Jiangsu, China
HS Code
7506100000
Production Capacity
1000kg Per Week

Product Description

Nickel Alloy Bar Inconel 600 625 718 Incoloy 800, Monel 400 K500, Hastelloy C22 C-276

Inconel 625, a Nickel-Chromium-Molybdenum alloy with low Carbon and Niobium addition, has superior resistance to high temperature effects such as oxidation and carburization as well as to a wide range of corrosive environments of unusual severity, especially resistance to pitting and crevice corrosion. Typical applications for inconel 625 are seawater applications, aerospace components, chemical processing equipment, nuclear water reaction components.

Inconel series: 600,601,617,625,690,718,825

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

Bar:10-50mm

Item 600 601 617 625 690 718 X750 825
C ≤0.15 ≤0.1 0.05-0.15 ≤0.08 ≤0.05 ≤0.08 ≤0.08 ≤0.05
Mn ≤1 ≤1.5 ≤0.5 ≤0.35 ≤0.5 ≤0.35 ≤1 ≤1
Fe 6-10 rest ≤3 rest 7-11 rest 5-9 ≥22
P ≤0.015 ≤0.02 ≤0.015 -- -- -- -- --
S ≤0.015 ≤0.015 ≤0.015 ≤0.015 ≤0.015 ≤0.01 ≤0.01 ≤0.03
Si ≤0.5 ≤0.5 ≤0.5 ≤0.35 ≤0.5 ≤0.35 ≤0.5 ≤0.5
Cu ≤0.5 ≤1 -- ≤0.3 ≤0.5 ≤0.3 ≤0.5 1.5-3
Ni ≥72 58-63 ≥44.5 50-55 ≥58 50-55 ≥70 38-46
Co -- -- 10-15 ≤10 -- ≤1 ≤1 --
Al -- 1-1.7 0.8-1.5 ≤0.8 -- 0.2-0.8 0.4-1 ≤0.2
Ti -- -- ≤0.6 ≤1.15 -- -- 2.25-2.75 0.6-1.2
Cr 14-17 21-25 20-24 17-21 27-31 17-21 14-17 19.5-23.5
Nb+Ta -- -- -- 4.75-5.5 -- 4.75-5.5 0.7-1.2 --
Mo -- -- 8-10 2.8-3.3 -- 2.8-3.3 -- 2.5-3.5
B -- -- ≤0.006 -- -- -- -- --

Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276

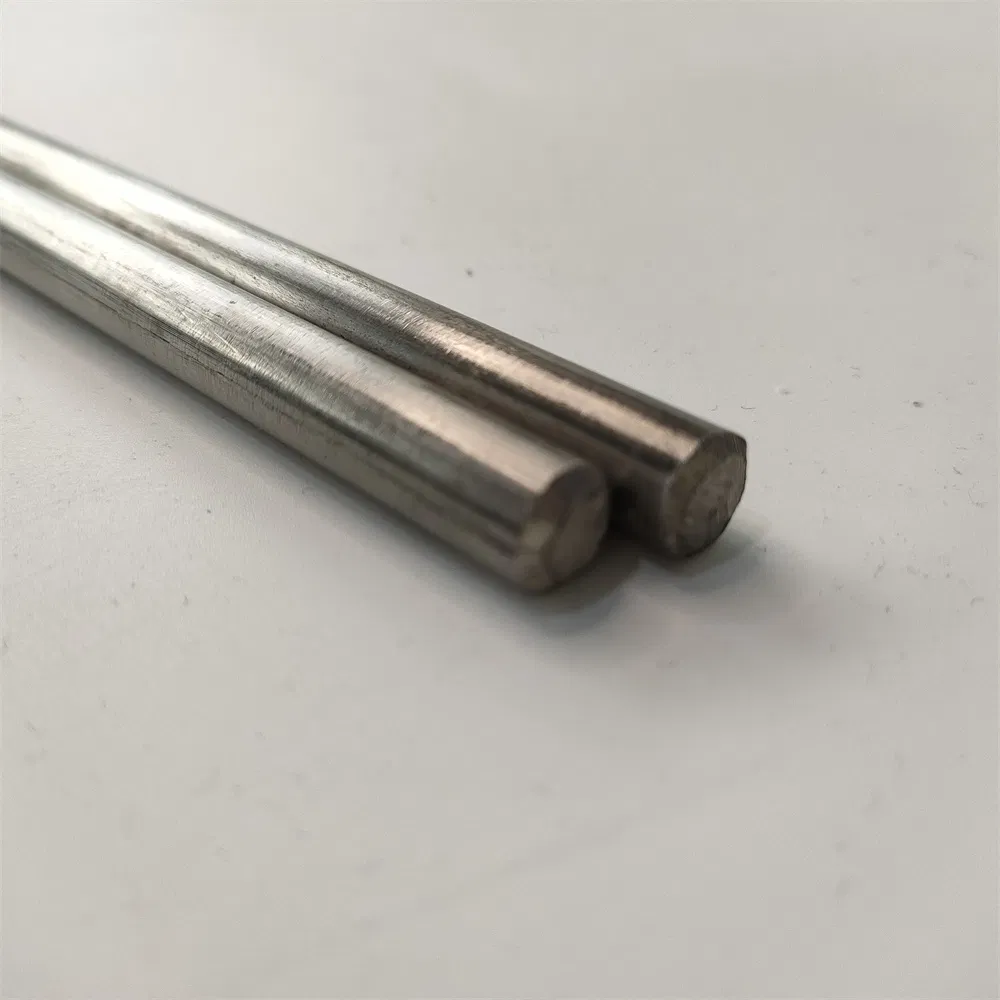

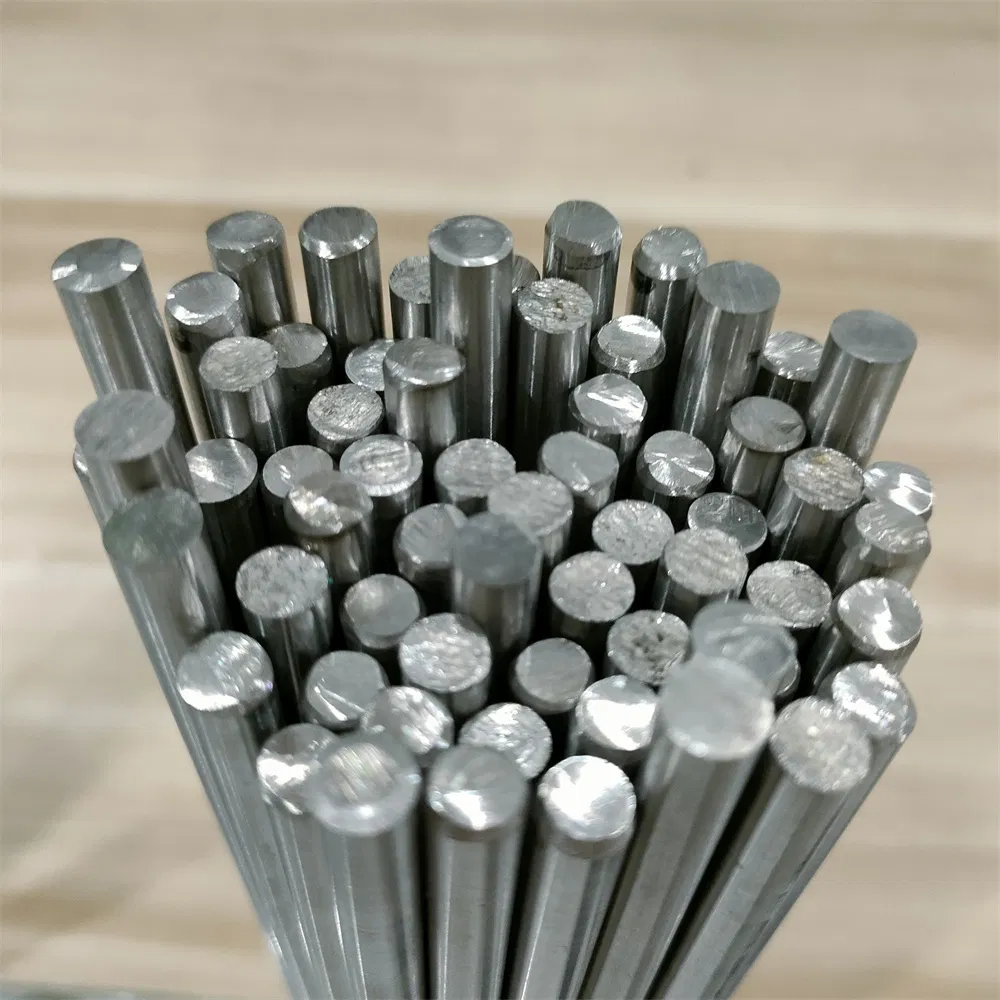

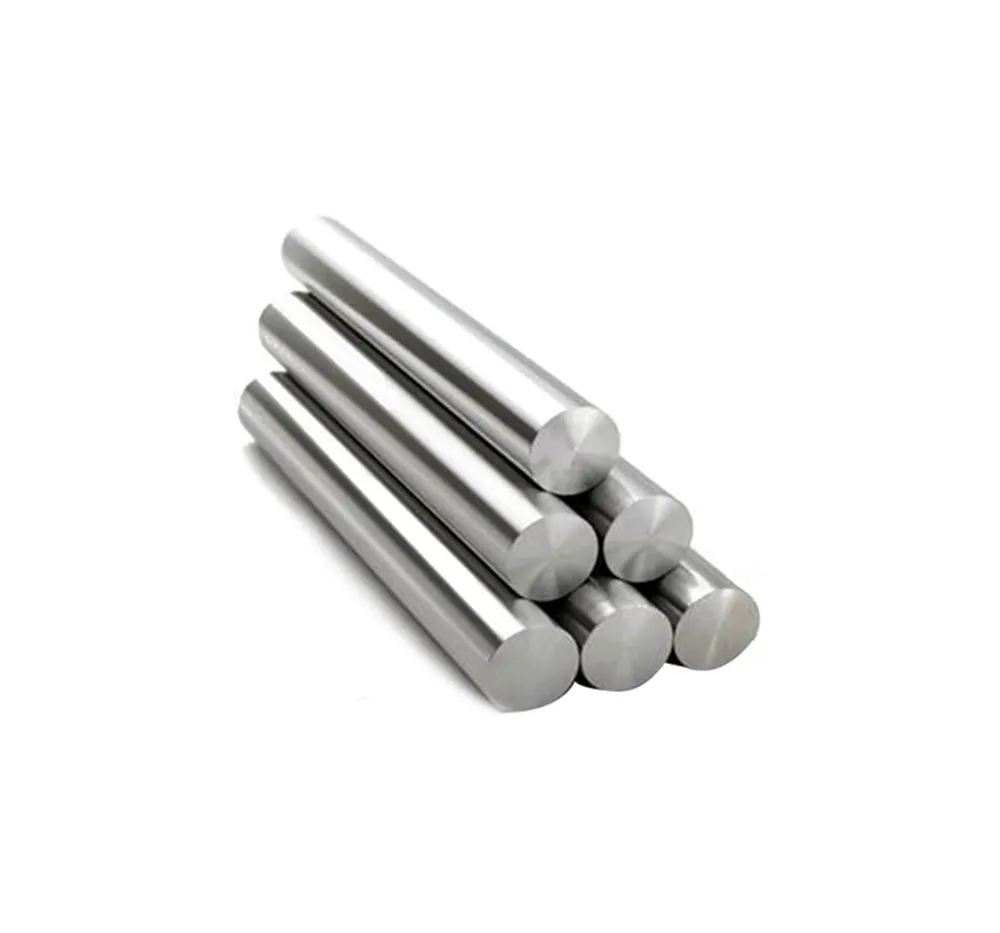

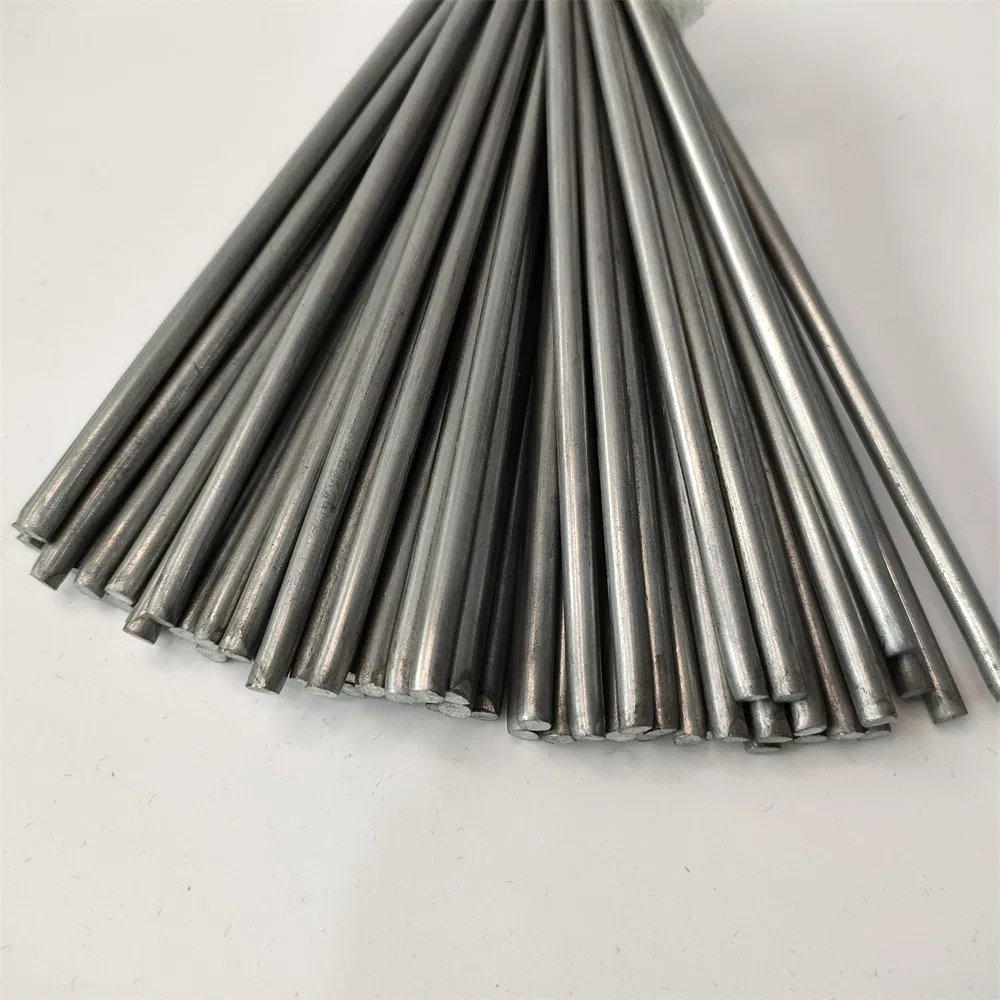

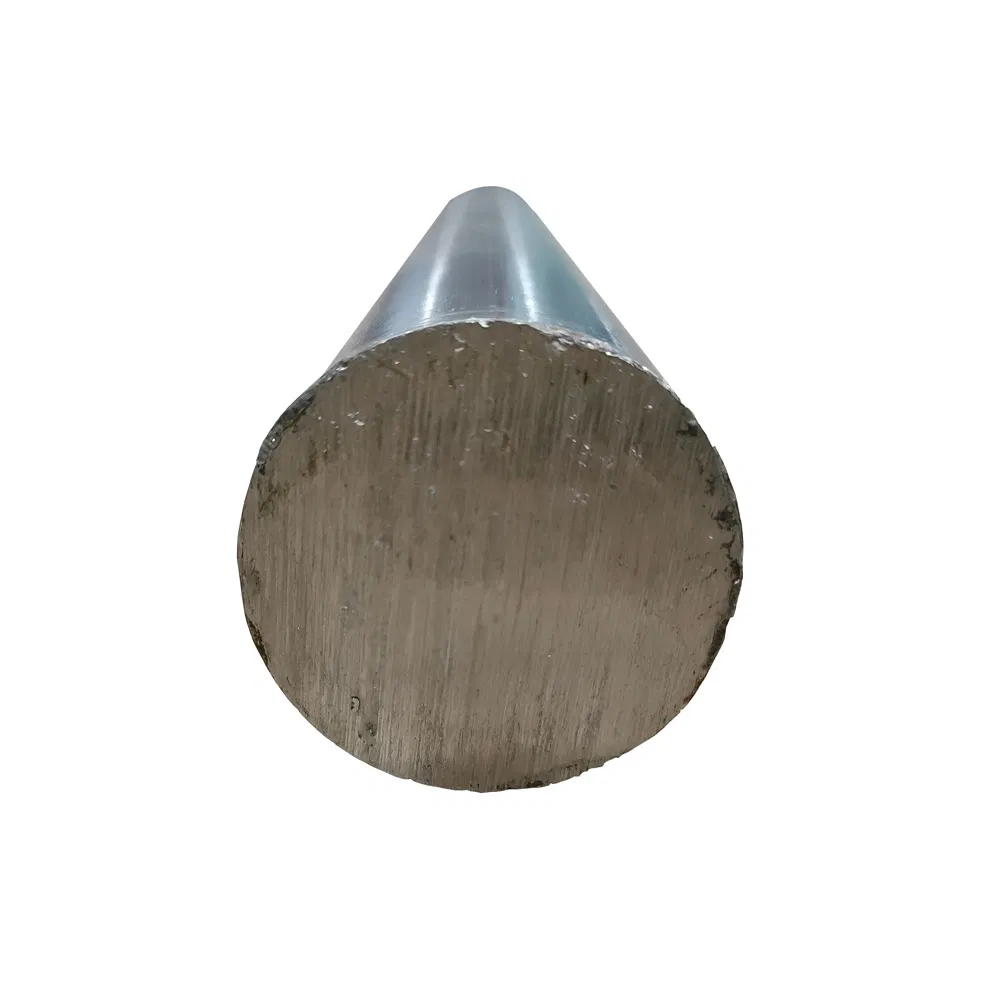

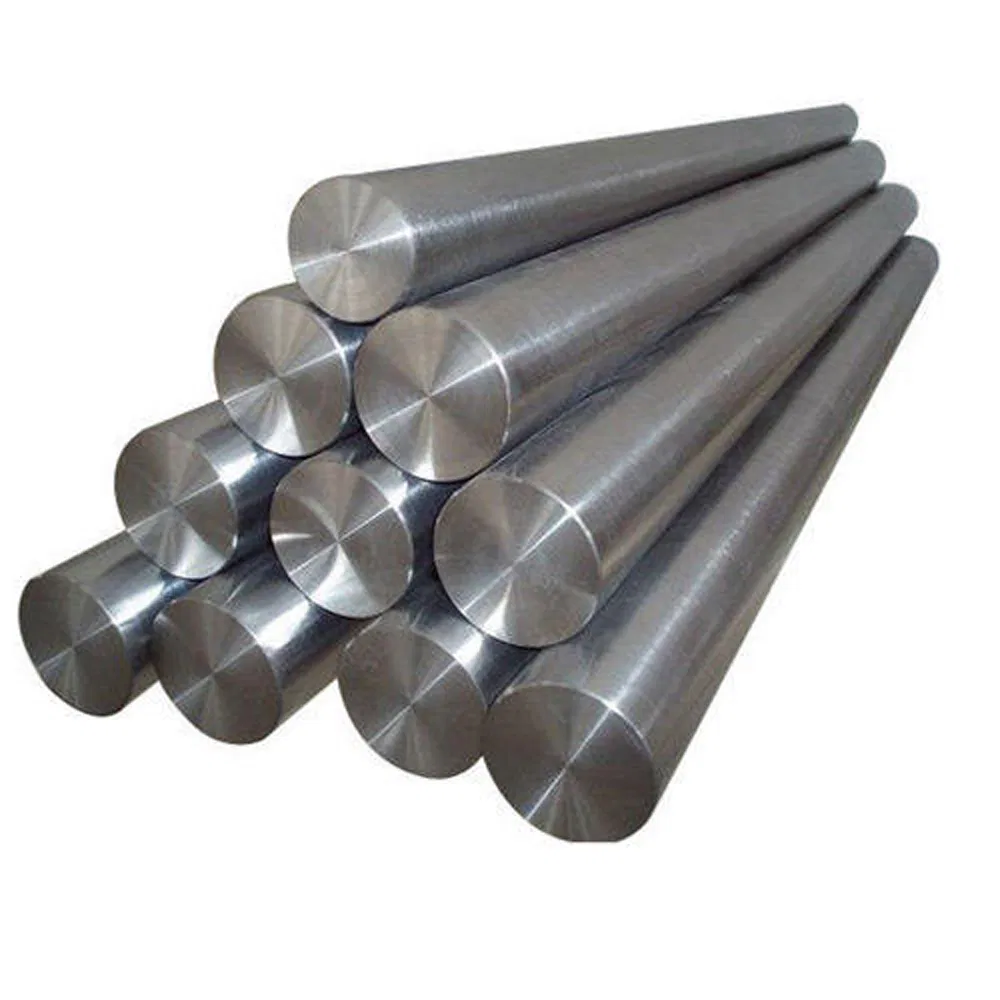

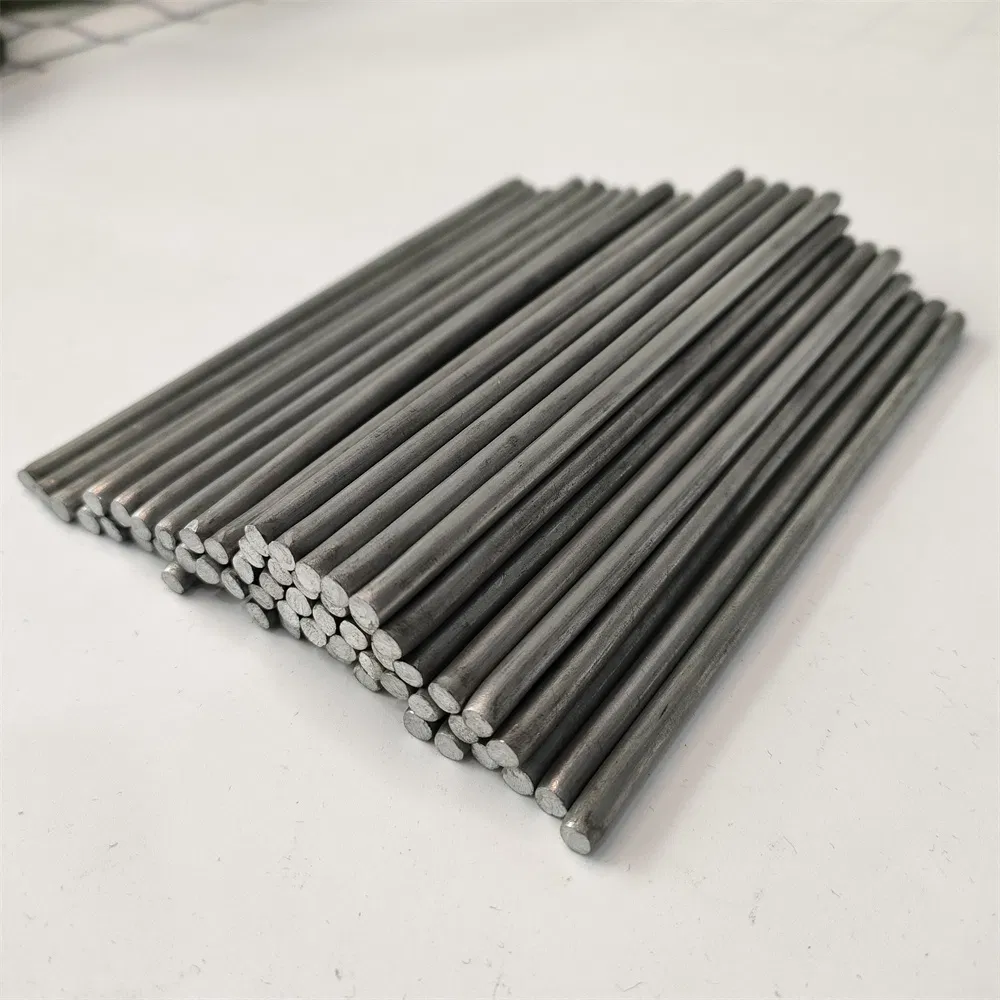

Detailed Photos
