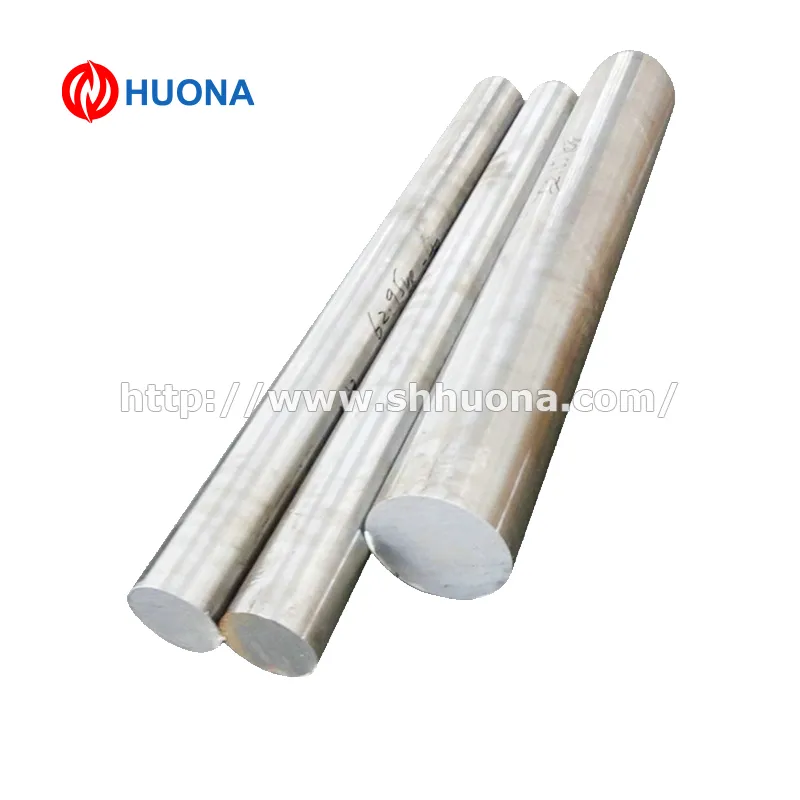

CuNi40 CuNi45 CuNi44 Heating Resistance Alloy Rod Alloy Steel Round Bar
CuNi40 CuNi45 CuNi44 Heating Resistance Alloy Rod Alloy Steel Round Bar
CuNi40 CuNi45 CuNi44 Heating Resistance Alloy Rod Alloy Steel Round Bar
CuNi40 CuNi45 CuNi44 Heating Resistance Alloy Rod Alloy Steel Round Bar
Specifications
Brand Name :
HUONA
Model Number :
CuNi 44 Rod
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
20KG
Price :
Bargain
Payment Terms :
Western Union,MoneyGram,T/T,L/C
Supply Ability :
1000 Ton/Year
Delivery Time :
5-21DAYS
Packaging Details :
Carton, Wooden Case
Model NO. :
CuNi44
Elongation :
>25%
Diameter :
8-30mm
Surface :
Bright or Black Skin
Specification :
Rod
Density :
8.9(g/cm3)
Length :
500-1500mm
Transport Package :
Carton, Wooden Case
HS Code :
74082200
Description

Product Description

HUONA CuNi44 (CuNi40 CuNi45 CuNi44) Heating Resistance Alloy Rod

Constantan Definition

Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. Constantan is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.
Chemical Content
Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
44 1.50% 0.5 - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 400ºC
Resisivity at 20ºC 0.49±5%ohm mm2/m
Density 8.9 g/cm3
Thermal Conductivity -6(Max)
Melting Point 1280ºC
Tensile Strength,N/mm2 Annealed,Soft 340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled 680~1070 Mpa
Elongation(anneal) 25%(Min)
Elongation(cold rolled) ≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC) -43
Micrographic Structure austenite
Magnetic Property Non

Constantan Tradenames:
Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan

Resistance Alloy- Constantan Sizes / Temper Capabilities
Condition Bright;Annealed; Soft
Wire diameter 0.02mm-1.0mm packing in spool
big than 1.0mm packing in coil
Rod Bar diameter 1mm-30mm
Strip Thickness 0.01mm-7mm
Width 1mm-280mm

Resistance alloy constantan wire material:
Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.
Characteristics
Constantan has a number of special characteristics due to which it is known as the most versatile alloy that is available. Some of its important characteristics are:
High specific heat resistance
Negligible temperature Coefficient
Easily ductile
Resistant to atmospheric corrosion
Can be easily soldered and molded
