Nickel Alloy 3j53/3j58/3j63 Steel Metal Wire Precision Alloy Wire For Precision Engineering Needs
Nickel Alloy 3j53/3j58/3j63 Steel Metal Wire Precision Alloy Wire For Precision Engineering Needs
Specifications
Brand Name :
HUONA
Model Number :
3J53/3J58/3J58
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5KG
Price :
Bargain
Payment Terms :
T/T
Supply Ability :
2000Tons/ year
Delivery Time :
7-10days if in stock
Packaging Details :
carton/wooden
Product name :
Precision Alloy Wire
Grade :
3j53/3j58/3j63
Shape :
Wire
Main material :
Nickel
MOQ :
5KG
Custom service :
Support
Description

Product Description

Nickel Alloys 3J53/3J58/3J63 Specification Table

Category Details
Alloy Names 3J53, 3J58, 3J63
Standard GB/T 15061-1994 (or equivalent)
Type Elastic Precision Alloys

Chemical Composition

Element 3J53 3J58 3J63
Nickel (Ni) 50% - 52% 53% - 55% 57% - 59%
Iron (Fe) Balance Balance Balance
Chromium (Cr) 12% - 14% 10% - 12% 8% - 10%
Titanium (Ti) ≤ 2.0% ≤ 1.8% ≤ 1.5%
Manganese (Mn) ≤ 0.8% ≤ 0.8% ≤ 0.8%
Silicon (Si) ≤ 0.5% ≤ 0.5% ≤ 0.5%
Carbon (C) ≤ 0.05% ≤ 0.05% ≤ 0.05%
Sulfur (S) ≤ 0.02% ≤ 0.02% ≤ 0.02%

Physical and Elastic Properties

Property 3J53 3J58 3J63
Density (g/cm³) ~8.1 ~8.0 ~7.9
Elastic Modulus (GPa) ~210 ~200 ~190
Thermal Expansion Coefficient Low Low Moderate
Temperature Stability Up to 400°C Up to 350°C Up to 300°C

Mechanical Properties

Property 3J53 3J58 3J63
Tensile Strength (MPa) ≥ 1250 ≥ 1200 ≥ 1150
Yield Strength (MPa) ≥ 1000 ≥ 950 ≥ 900
Elongation (%) ≥ 6 ≥ 8 ≥ 10
Fatigue Resistance Excellent Very Good Good

Applications

Alloy Applications
3J53 High-performance springs,
elastic elements in precision instruments, and aerospace components.
3J58 Elastic components for thermal and vibration-sensitive devices,
as well as high-temperature springs.
3J63 Precision elastic components for relays,
electronic instruments, and control systems.

Processing Characteristics

  • 3J53: Excellent cold workability; heat treatment enhances elasticity and strength.
  • 3J58: Good thermal stability, ideal for high-temperature environments.
  • 3J63: Easy machinability, suitable for complex designs and medium-stress environments.

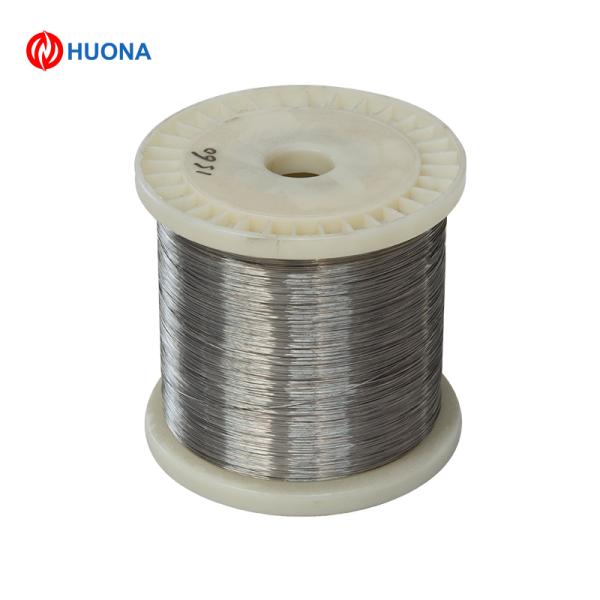

Detailed Photos


Nickel Alloy 3j53/3j58/3j63 Steel Metal Wire Precision Alloy Wire For Precision Engineering Needs
Nickel Alloy 3j53/3j58/3j63 Steel Metal Wire Precision Alloy Wire For Precision Engineering Needs
Nickel Alloy 3j53/3j58/3j63 Steel Metal Wire Precision Alloy Wire For Precision Engineering Needs
Nickel Alloy 3j53/3j58/3j63 Steel Metal Wire Precision Alloy Wire For Precision Engineering Needs
Nickel Alloy 3j53/3j58/3j63 Steel Metal Wire Precision Alloy Wire For Precision Engineering Needs
