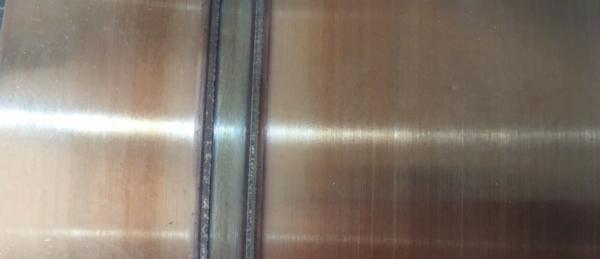

Manganin Tape Manganese Copper Resistance Strip for Ammeter
Manganin Tape Manganese Copper Resistance Strip for Ammeter
Specifications
Brand Name :
HUONA
Model Number :
Manganin Tape Manganese Copper
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
30
Price :
DISCUSS
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
2000ton/Year
Delivery Time :
7-21 DAYS
Packaging Details :
Wooden Case
Model NO. :
Manganin
Surface :
Birght
Thickness :
0.1-3.0mm
Density :
8.4G/Cm3
Width :
200mm
Resistivity :
0.44
Specification :
0.1-3mm thickness
Origin :
China
Production Capacity :
2000ton/Year
Description

Product Description

Manganin Tape Manganese Copper Resistance Strip for Ammeter

Product Description

Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.

Chemical Content, %

Ni

Mn

Fe

Si

Cu

Other

ROHS Directive

Cd

Pb

Hg

Cr

2~5

11~13

<0.5

micro

Bal

-

ND

ND

ND

ND

Mechanical Properties

Max Continuous Service Temp

0-100ºC

Resisivity at 20ºC

0.44±0.04ohm mm2/m

Density

8.4 g/cm3

Thermal Conductivity

40 KJ/m·h·ºC

Temp Coefficient of Resistance at 20 ºC

0~40α×10-6/ºC

Melting Point

1450ºC

Tensile Strength(Hard)

585 Mpa(min)

Tensile Strength,N/mm2 Annealed,Soft

390-535

Elongation

6~15%

EMF vs Cu, μV/ºC (0~100ºC)

2(max)

Micrographic Structure

austenite

Magnetic Property

non

Hardness

200-260HB

Micrographic Structure

Ferrite

Magnetic Property

Magnetic
